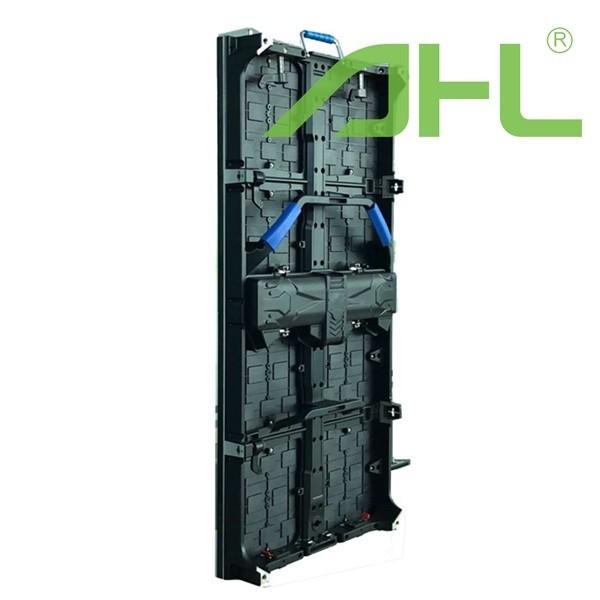

2.6mm 2.9mm Stage Rental Led Screen Light Weight Led Panel Curved Design
2.6mm 2.9mm Stage Rental Led Screen Light Weight Led Panel Curved Design
Specifications
Brand Name :
AHL
Model Number :
GK series
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1 Square Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000 square meters per month
Delivery Time :
20-25 day
Packaging Details :
Wooden box or Flight case
Panel size (W×H)   (mm) :
500×500X75/ 500×1000X75
Panel weight   (kg) :
8.5 / 13.5
Display refresh   rate (Hz) :
1920/3840 (optional)
Panel material :
Aluminum alloy
Pixel pitch (mm) :
2.6,2.9，3.91，etc.
Application :
full color LED display
Description

2.6mm 2.9mm Stage Rental Led Screen Light Weight Led Panel Curved Design

GK series

Parameter Specification
Product name GL 2.6 GL-2.9 GL-3.91 GL-4.81 GL-5.95 GL-6.25
Application envionment Indoor rental Indoor / Outdoor rental
Pixel pitch (mm) 2.6 2.9 3.91 4.81 5.95 6.25
Brightness (nits) Indoor: 960-1200; Outdoor: 4000-6500
Pixel configuration ( Indoor) SMD 2020 SMD 2020 SMD 2020 SMD 3528 SMD 3528 SMD 3528
Pixel configuration (Outdoor) SMD 1921 SMD 1921 SMD 2727 SMD 2727
Panel size (W×H) (mm) 500×500X75/ 500×1000X75
Panel weight (kg) 8.5 / 13.5
Pixel per m2 147929 118906 65410 43222 28247 25600
Pixel density per panel 500X500 192 × 192 173 × 173 128 х 128 104× 104 84 х 84 80 × 80
Pixel density per panel 500X1000 192 × 385 173 × 345 128 х 256 104× 208 84 х 168 80 × 160
Display refresh rate (Hz) 1920/3840 (optional)
Input power per m2 (Max/Avg.) (w/㎡) 620/220 600/210 540/190 380/150 560/195 550/190
Panel area (㎡) 0.25/ 0.5
Panel material Aluminum alloy
Ingress protection (front/rear) Indoor: IP30 / Outdoor: IP 65
Certification on request CE, RoHS, EMC
Curved locks option ± 10 °
Maintenance Front/Back service- optional

Application of LED display screen:

full color LED display,also calLED LED screen, LED video wall, or LED sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.

Traditional advertising can only show pictures, But LED display/LED video wall/LED screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.

LED display screen now are widely applied in media advertising, transportantion,Security,

Real estate and Stage show background.
