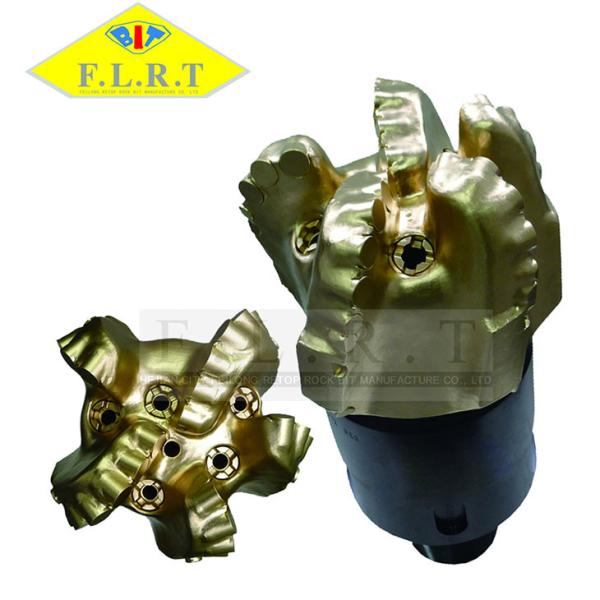

9 1/2 FM16053TU PDC Drill Bits 16mm Main Cutter Size For Gas Well Drilling
9 1/2 FM16053TU PDC Drill Bits 16mm Main Cutter Size For Gas Well Drilling
Specifications
Brand Name :
FLRT
Model Number :
9 1/2 FM16053TU
Certification :
API-7-1, ISO 9001:2008
Place of Origin :
China
MOQ :
1pc
Supply Ability :
50pcs per week
Packaging Details :
plywood box / iron box
Body Type :
Matrix Body
name :
Matrix Body PDC Bit
Standard :
API-7-1, ISO 9001:2008
Series :
FM
Main Cutter Size :
16mm
Application :
Gas Well Drilling
Description

9 1/2" FM16053TU , Matrix Body PDC Bit , Drill Bit , Gas Well Drilling Bit

FM series

Matrix body PDC drill bit

* Medium soft to medium formation drilling

Products with optimized bit profile is designed for drilling medium soft to medium homogeneous formations.

* Gage protection

Composite gage protection and low torque design improved the rate of penetration.

* Hydraulic system

CFD hydraulic balance design results in better bit cleaning and cutting removal.

Product Specifications
Bit Size (in.) 6 8 1/2 9 1/2 11 5/8 12 1/4
IADC Code M233 M223 M223 M223 M223
Number of Blades 5 5 5 5 5
Number of Nozzles 5 6 6 6 8
Total Number of Cutters 20 27 31 42 45
Primary Cutter Size(mm) 13 16 16 19 19
Standard Gauge Length 70mm 75mm 70mm 100mm 120mm
API Reg. Pin Connex.(in.) 3 1/2 4 1/2 6 5/8 6 5/8 6 5/8

Recommended Operation Parameters
Bit Size (in.) 6 8 1/2 9 1/2 11 5/8 12 1/4
Hydraulic Flow Rate(L/s) 25~35 25~35 25~35 44~60 44~60
Hydraulic Flow Rate(Gpm) 390~550 390~550 390~950 690~950 690~950
Rotation Speed(Rpm) 50~500 50~500 50~500 50~500 50~500
WOB(KN) 30~100 30~100 30~100 50~160 50~160
WOB(KLbs) 8~23 8~23 8~23 12~36 12~36
Maximum WOB(KN) 100 100 100 160 160
Maximum WOB(KLbs) 23 23 23 36 36

* Other types and sizes could be designed and manufactured according to the specific requirments.
