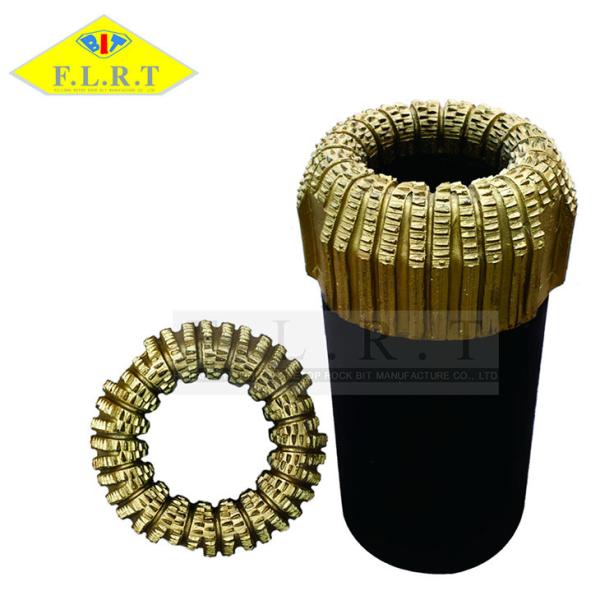

Thermally Stable Polycrystalline Diamond Drill Bits , TSP Drill Bit Matrix Body Type
Thermally Stable Polycrystalline Diamond Drill Bits , TSP Drill Bit Matrix Body Type
Thermally Stable Polycrystalline Diamond Drill Bits , TSP Drill Bit Matrix Body Type
Thermally Stable Polycrystalline Diamond Drill Bits , TSP Drill Bit Matrix Body Type
Specifications
Brand Name :
FLRT
Model Number :
FPC Series
Certification :
API-7-1, ISO 9001:2008
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50pcs per week
Packaging Details :
plywood box / iron box
Body Type :
Matrix
Cutting Material :
Thermal Stable Polycrystalline
Standard :
API-7-1, ISO 9001:2008
Formation :
Medium hard to hard
Color :
Golden
Application :
Coring
Description

Thermal Stable Polycrystalline Core Bit , TSP Core Bit , Diamond Core Bit​

FPC series

Thermal stable polycrystallining core bit

* Medium hard to hard formation coring

Special thermally-stable polycrystalline diamond cutter layout makes the bit competent in medium hard to hard formation coring operation.

* Multiple blade profile design

Multiple blade profile design, including round, double taper and parabolic shape, makes the bit suitable for virous types of medium hard to hard formations.

* Cooling and cleaning system

Various ID flow path designs provide sufficient cooling and cleaning to the whole bit surface.

Product Specifications
Bit Size (in.) 6x2 5/8 in 6x2 5/8 in 8 1/2x4 in 8 1/2x4 in 12 1/4x5 1/4 in
Type FPC323 FPC322 FPC223 FPC322 FPC322
TFA(in2) 0.1~1.0 0.1~1.0 0.3~1.2 0.3~1.2 0.3~3.0
Gauge(in) 1 2 1/4 1 3/4 3 1/2 5
Core barrel(in) 4 3/4X2 5/8 4 3/4X2 5/8 6 3/4x4 6 3/4x4 8x5-1/4

Recommended Operation Parameters
Bit Size (in.) 6x2 5/8 in 6x2 5/8 in 8 1/2x4 in 8 1/2x4 in 12 1/4x5 1/4 in
Type FPC323 FPC322 FPC223 FPC322 FPC322
Hydraulic Flow Rate(L/s) 6.3～13 6.3～13 11～19 11～19 25~33
Hydraulic Flow Rate(Gpm) 100～200 100～200 180～300 180～300 400～510
Rotation Speed(Rpm) 60～300 60～300 60～300 60～300 60～300
WOB(KN) 22～66 22～66 44～80 44～80 48～160
WOB(KIbs) 5～15 5～15 10～18 10～18 11～35

* Other types and sizes could be designed and manufactured according to the specific requirments.
