17 1/2 FG214G Steel Tooth Tricone Bit / Jet Drill Bits ISO 9001 Approved
17 1/2 FG214G Steel Tooth Tricone Bit / Jet Drill Bits ISO 9001 Approved
17 1/2 FG214G Steel Tooth Tricone Bit / Jet Drill Bits ISO 9001 Approved
17 1/2 FG214G Steel Tooth Tricone Bit / Jet Drill Bits ISO 9001 Approved
17 1/2 FG214G Steel Tooth Tricone Bit / Jet Drill Bits ISO 9001 Approved
17 1/2 FG214G Steel Tooth Tricone Bit / Jet Drill Bits ISO 9001 Approved
Specifications
Brand Name :
FLRT
Model Number :
17 1/2 FG214G
Certification :
API-7-1, ISO 9001:2008
Place of Origin :
China
MOQ :
5pcs
Supply Ability :
100pcs per quarter
Delivery Time :
5~45 workdays
Packaging Details :
plywood box / iron box
Bearing Type :
Sealed Roller
name :
mill tooth bit
Standard :
API-7-1, ISO 9001:2008
Series :
FG
Nozzle Number :
Three ( Jetted Type)
Connection :
7 5/8" API REG. PIN
Description

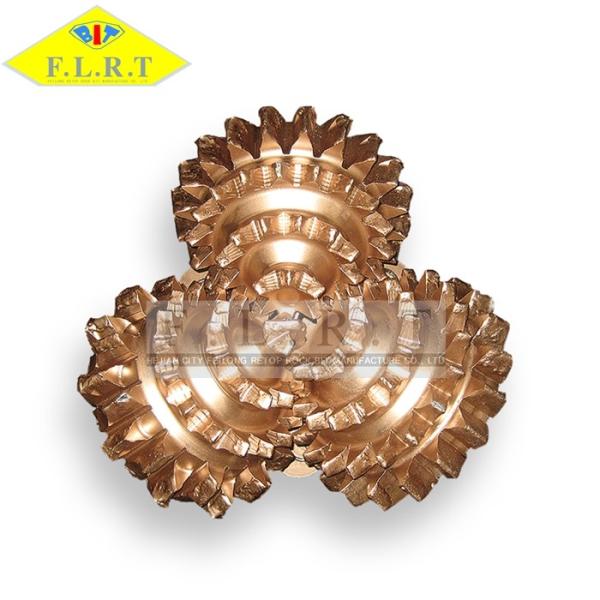

17 1/2" FG214G , Steel Tooth Tricone Bit , Sealed Roller Bearing , Jetted Bit , 7 5/8" API REG. PIN

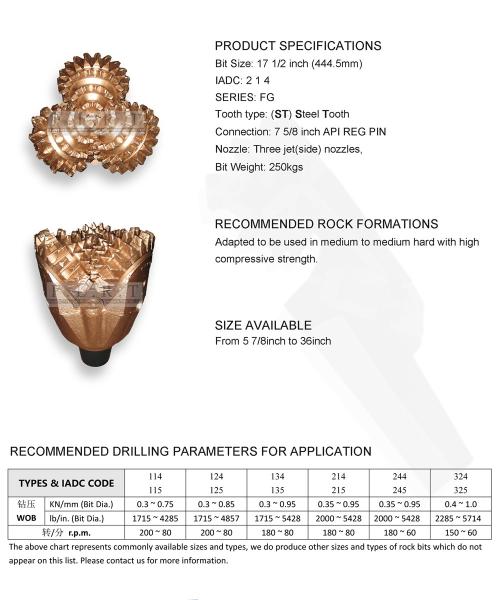

PRODUCT SPECIFICATIONS

Bit size: 17 1/2 inch(444.5mm)

IADC: 2 1 4

SERIES: FG

Tooth type: (ST)Steel Tooth

Connection: 7 5/8inch API REG PIN

Nozzle: Three jet(side) nozzles,

Bit Weight: 250kgs

RECOMMENDED ROCK FORMATIONGS

Adapted to be used in medium to medium hard with high compressive strength.

SIZE AVAILABLE

From 5 7 / 8inch to 36inch

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code

114

115

124

125

134

135

214

215

244

245

324

325
WOB KN/mms (Bit Dia.) 0.3~0.75 0.3~0.85 0.3~0.95 0.35~0.95 0.35~0.95 0.4~1.0
Lb/in. (Bit Dia.) 1712~4285 1715~4857 1715~5428 2000~5428 2000~5428 2285~5714
Rotation Speed (Rpm) 200~80 200~80 180~80 180~60 180~60 150~60

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
