FG Series Water Well Drill Bits Non Sealed Roller Bearing With Central Hole
FG Series Water Well Drill Bits Non Sealed Roller Bearing With Central Hole
FG Series Water Well Drill Bits Non Sealed Roller Bearing With Central Hole
FG Series Water Well Drill Bits Non Sealed Roller Bearing With Central Hole
FG Series Water Well Drill Bits Non Sealed Roller Bearing With Central Hole
FG Series Water Well Drill Bits Non Sealed Roller Bearing With Central Hole
Specifications
Brand Name :
FLRT
Model Number :
5 5/8 FW211
Certification :
API-7-1, ISO 9001:2008
Place of Origin :
China
MOQ :
10pcs
Supply Ability :
500pcs per quarter
Delivery Time :
5~45 workdays
Packaging Details :
plywood box / iron box
Bearing Type :
Non Sealed Roller
Cutting Material :
Steel Tooth
Standard :
API-7-1, ISO 9001:2008
Series :
FG
Connection :
3 1/2" API REG PIN
Nozzle :
One central nozzle
Description

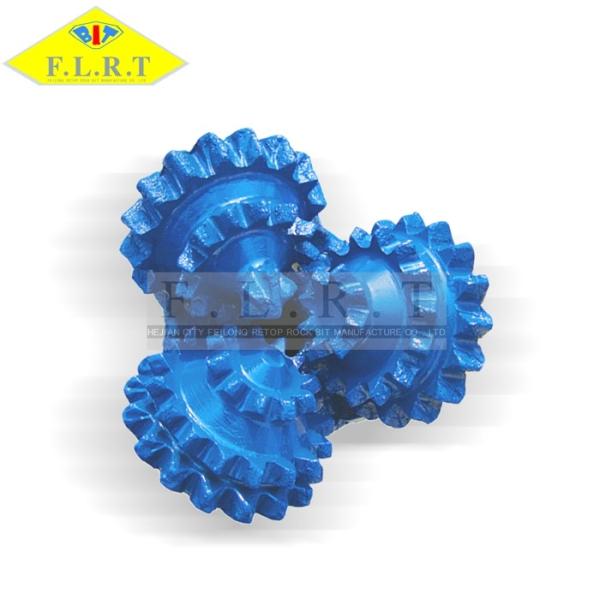

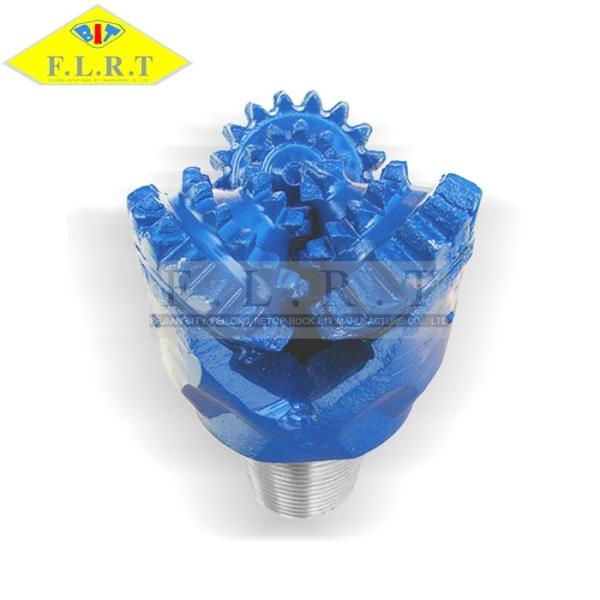

5 5/8" FW211 , Steel Tooth Tricone Bit, Non-Sealed Roller Bearing , Central Hole , Water Well Drilling , Exploration

PRODUCT SPECIFICATIONS

Bit Size: 5 5/8inch(142.9mm)

IADC: 2 1 1

SERIES: FW

Tooth type: (ST)Tungsten Carbide Insert

Connection: 3 1/2inch API REG PIN

Nozzle: one central nozzle

Bit Weight: 13kgs

RECOMMENDED ROCK FORMATIONS

Adapted to be used in medium to medium hard with high compressive strength.

SIZE AVAILABLE

From 3 7/8inch to 6 3/4inch

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code

111

113

121

123

131

133

211

213

241

243

321

323
WOB KN/mm(Bit Dia.) 0.3~0.75 0.3~0.85 0.3~0.95 0.35~0.95 0.35~0.95 0.4~1.0
Lb/in. (Bit Dia.) 1715~4285 1715~4857 1715~5428 2000~5428 2000~5428 2285~5714
Rotation Speed (Rpm) 200~80 200~80 180~80 180~80 180~70 150~70
