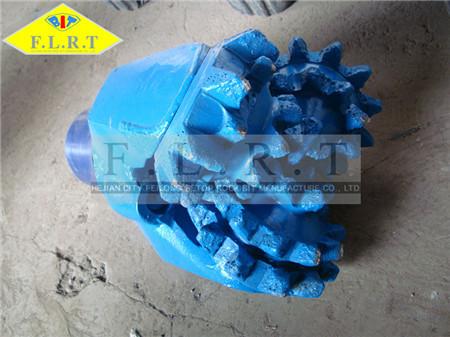

Tungsten Carbide TCI Tricone Bit 5 7 / 8 Inch - 36 Inch For Groundwater
Tungsten Carbide TCI Tricone Bit 5 7 / 8 Inch - 36 Inch For Groundwater
Specifications
Brand Name :
FLRT
Model Number :
12 1/4" FSG124
Certification :
API-7-1 , ISO 9001:2008
Place of Origin :
China
MOQ :
5pcs
Supply Ability :
200pcs per quarter
Delivery Time :
5~45 workdays
Packaging Details :
plywood box / iron box
Bearing Type :
Rubber Sealed Roller Bearing
Cutting Material :
Steel Tooth
Standard :
API-7-1, ISO 9001:2008
Series :
FSG
Application 1 :
Oil well drilling
Application 2 :
Water well drilling
Application 3 :
Geothermal well drilling
Tooth Protection :
Alloy Hard Facing Protection on Tooth
Description

12 1/4" FSG124 , TCI Tricone Bit , Milled Tooth Bit , Rotary Drilling Bit

SIZE AVAILABLE


From 5 7/8inch to 36inch

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code

114

115

124

125

134

135

214

215

244

245

324

325
WOB KN/mm(Bit Dia.) 0.3~0.75 0.3~0.85 0.3~0.95 0.35~0.95 0.35~0.95 0.4~1.0
Lb/in. (Bit Dia.) 1712~4285 1715~4857 1715~5428 2000~5428 2000~5428 2285~5714
Rotation Speed (Rpm) 200~80 200~80 180~80 180~80 180~60 150~60

Roller Cone Bit Bearing Lubricants

High drilling temperatures and high pressures in the lubrication system, together with the potential of exposure to water and chemicals, require high performance from lubricants. Most bit lubricants are specially formulated. Leading bit manufacturers employ scientists to develop and test lubricants. Better drill-bit lubricants are stable to temperatures > 300°F, and many function normally at temperatures down to ≈0°F. They are hydrophobic (repel water) and retain their stability if water penetrates the bit. Quality lubricants are also resistant to chemicals commonly found in drilling fluids, are environmentally safe, and do not contain the lead additives that have traditionally helped resist high pressures.
