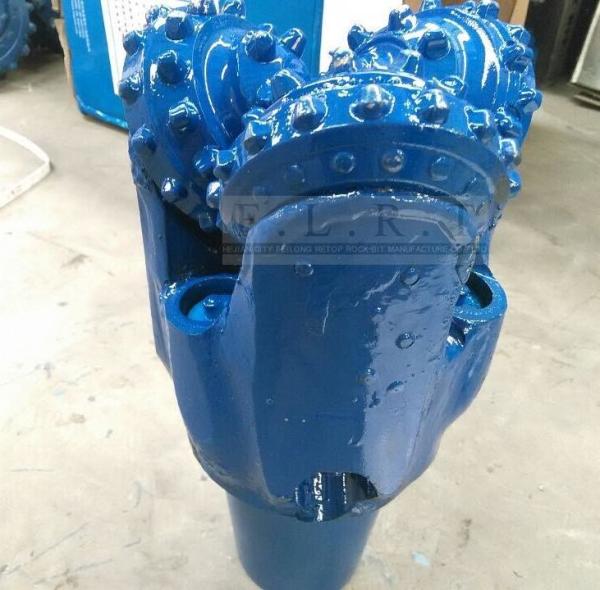

6 1/8 FA537G , TCI Tricone Bit , Rock Bit , Rubber Sealed Journal Bearing , Gauge Protection
6 1/8 FA537G , TCI Tricone Bit , Rock Bit , Rubber Sealed Journal Bearing , Gauge Protection
Specifications
Brand Name :
FLRT
Model Number :
6 1/8 FA537G
Certification :
API-7-1 , ISO 9001:2008
Place of Origin :
China
MOQ :
25pcs
Supply Ability :
200pcs per quarter
Delivery Time :
5~45 workdays
Packaging Details :
plywood box / iron box
Bearing Type :
Sealed Journal Bearing With Gauge Protection
Cutting Material :
TCI
Standard :
API-7-1, ISO 9001:2008
Series :
FA
Application 1 :
Oil well drilling
Application 2 :
Gas well drilling
Application 3 :
Geothermal well drilling
Description

6 1/8" FA537G , TCI Tricone Bit , Rock Bit , Rubber Sealed Journal Bearing , Gauge Protection

PRODUCT SPECIFICATIONGS

Bit Size: 6 1/8 inch( 155.6 mm)

IADC: 5 3 7

SERIES: FA

Tooth type: (TCI)Tungsten Carbide Insert

Connection 6 5/8inch API REG PIN

Nozzle Three jet(side) nozzles,

Bit Weight: 13kgs

RECOMMENDED ROCK FORMATIONS

Adapted to be used in medium soft with harder, more abrasive streaks(hard shale, mudstone, soft limestone, sands etc)

6 1/8

SIZE AVAILABLE

Form 7 7/8inch to 17 1/2inch

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code 117 127

437

447

517

527

537

547

617

627

637
WOB KN/mm(Bit Dia.) 0.35~0.8 0.35~0.9 0.35~0.9 0.35~1.0 0.45~0.95 0.45~1.1 0.5~1.1
Lb/in. (Bit Dia.) 2000~4271 2000~5142 2000~5142 2000~5714 2571~5714 2571~6285 2857~6285
Rotation Speed (Rpm) 240~80 240~70 180~80 220~60 220~50 200~50 180~40

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
