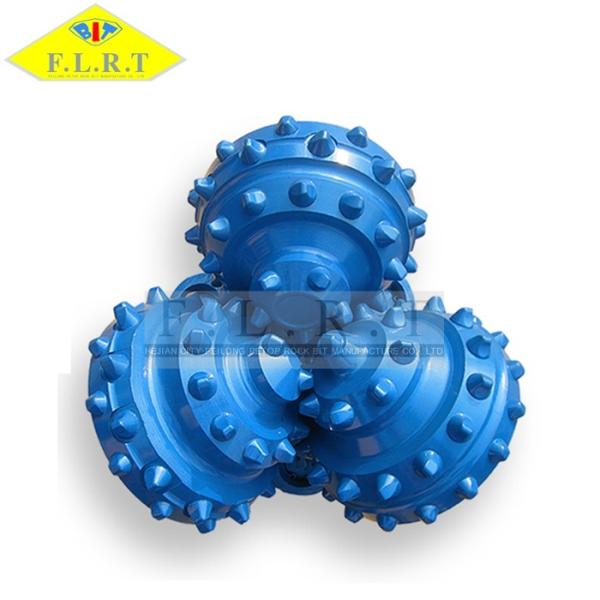

Blue Tricone Drill Bit For Water Wells 10 5/8 FA537G API-7-1 Standard
Blue Tricone Drill Bit For Water Wells 10 5/8 FA537G API-7-1 Standard
Blue Tricone Drill Bit For Water Wells 10 5/8 FA537G API-7-1 Standard
Blue Tricone Drill Bit For Water Wells 10 5/8 FA537G API-7-1 Standard
Specifications
Brand Name :
FLRT
Model Number :
10 5/8 FA537G
Certification :
API-7-1, ISO 9001:2008
Place of Origin :
China
MOQ :
20pcs
Supply Ability :
300pcs per quarter
Delivery Time :
5~45 workdays
Packaging Details :
plywood box / iron box
name :
water well drill bits
Cutting Material :
TCI
Standard :
API-7-1, ISO 9001:2008
Series :
FA
IADC :
537
Supplementary Features :
G : Reinforced Gauge Protection
Color :
Blue
Bit Size :
10 5/8"
Connex :
6 5/8" API REG. PIN
Description

10 5/8" FA537G , Rock Bit, Water Well Drilling Bit , Medium Hard Formation , Tricone Drilling Bit

Blue Tricone Drill Bit For Water Wells 10 5/8PRODUCT SPECIFICATIONGS

Bit Size : 10 5/8 inch (269.9mm)

IADC : 5 3 7

SERIES : FA

Tooth type : ( TCI ) Tungsten Carbide Insert

Connection : 6 5/8 inch API REG PIN

Nozzle : Three jet(side) nozzles,

Bit Weight: 80kgs

RECOMMENDED ROCK FORMATIONS

Adapted to be used in medium soft with harder, more abrasive streaks(hard shale, mudstone, soft limestone, sands etc)

SIZE AVAILABLE

Form 3 7/8inch to 17 1/2inch

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code 417

437

447

517

527

517

527

537

547

617

627

637
WOB KN/mm(Bit Dia.) 0.4~0.9 0.4~0.9 0.35~1.0 0.35~1.0 0.5~1.0 0.6~1.1 0.7~1.2
Lb/in. (Bit Dia.) 2285~5142 2285~5142 2000~5714 2000~5714 2857~5714 3428~6285 4000~6857
Rotation Speed (Rpm) 140~60 240~70 125~50 ~60 110~50 100~40 80~4
