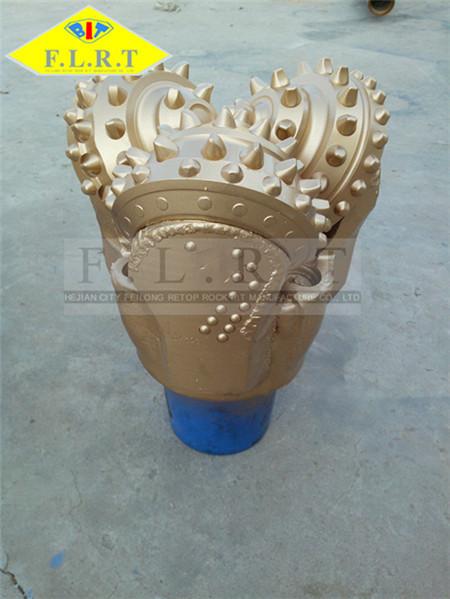

311.2mm TCI Drill Bit , Tungsten Carbide Insert Bit With Friction Bearing / Sealed Bearing
311.2mm TCI Drill Bit , Tungsten Carbide Insert Bit With Friction Bearing / Sealed Bearing
Specifications
Brand Name :
FLRT
Model Number :
10 5/8 FA537G
Certification :
API-7-1, ISO 9001:2008
Place of Origin :
China
MOQ :
20pcs
Supply Ability :
300pcs per quarter
Delivery Time :
5~45 workdays
Packaging Details :
plywood box / iron box
Bearing Type :
Sealed Friction
Cutting Material :
Tungsten Carbide Insert
Standard :
API-7-1, ISO 9001:2008
IADC :
517
TRC :
Three Roller Cone
Package :
Plywood Box
Color :
Blue
Shirttail :
Alloy Hard Facing
Description

311.2mm TCI Bit , IADC 517 , Friction Bearing , Sealed Bearing , Tungsten Carbide Insert Bit , TRC Bit

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code

417

437

447

517

527

517

527

537

547

617

627

637

WOB

KN/mm(Bit Dia.)

0.4~0.9

0.4~0.9

0.35~1.0

0.35~1.0

0.5~1.0

0.6~1.1

0.7~1.2

Lb/in. (Bit Dia.)

2285~5142

2285~5142

2000~5714

2000~5714

2857~5714

3428~6285

4000~6857

Rotation Speed (Rpm)

140~60

240~70

125~50

~60

110~50

100~40

80~4

Seal Definitions

- In a rotating bearing, the two working sides of a seal are called the static energizer and the dynamic wear face. These two parts are directly opposite each other, with the energizing portion bearing on the gland and the dynamic wear face bearing against the rotating unit. For the energizing portion of the seal to function properly, it must have a surface against which to react. This is provided by a channel-shaped groove called a seal gland.

- The wearing portion of the seal must have the capability to withstand the heat and abrasion generated as the rotating surface passes over it. The energizer, when functioning correctly, is not a high-wear area. Ideally, it simply bears against the gland and provides the pushing energy that maintains firm contact between the wear surface and rotating cone.
