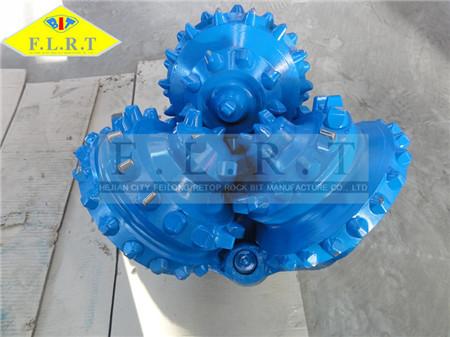

14 3/4 FSG515G Tungsten Carbide Insert Bit With Rubber Sealed Roller Bearing
14 3/4 FSG515G Tungsten Carbide Insert Bit With Rubber Sealed Roller Bearing
Specifications
Brand Name :
FLRT
Model Number :
8 3/8 FG515GT
Certification :
API-7-1 , ISO 9001:2008
Place of Origin :
China
Supply Ability :
200pcs per quarter
Delivery Time :
5~45 workdays
Packaging Details :
plywood box / iron box
MOQ :
1~5pcs
Bearing Type :
Rubber Sealed Roller Bearing
Cutting Material :
TCI
Standard :
API-7-1, ISO 9001:2008
Series :
FSG
Application 1 :
Oil well drilling
Application 2 :
Gas well drilling
IADC :
515
Shirttail :
Alloy Hard Facing Protection
TCI :
Tungsten Carbide Insert
Description

14 3/4" FSG515G , Rubber Sealed Roller Bearing , Reinforced Gage Protection , TCI Tricone Bit , Tricone Drill Bit

PRODUCT SPECIFICATIONGS

Bit Size : 14 3/4 inch ( 347.4 mm )

IADC : 515

SERIES : FSG

Tooth type : ( TC I) Tungsten Carbide Insert

Connection : 7 5/8 inch API REG PIN

Nozzle Three jet(side) nozzles,

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types &

IADC Code

 415

435

445

515

525

535

545

615

625

 635
WOB

KN/mm

(Bit Dia.)

 0.35~0.95 0.35~0.95 0.4~0.7 0.4~0.7 0.45~1.1 0.5~1.2

Lb/in.

(Bit Dia.)

 2000~5428 2000~5428 2285~4000 2285~4000 2571~6285 2857~6857
Rotation Speed (Rpm) 150~60 150~60 140~80 120~80 110~60 100~50

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.

ROLLER CONE BIT CONE DESIGN

One important factor which affects journal angle is the degree of meshing or interfit (i.e. the distance that the crests of the teeth of one cone extend into the grooves of the other). The amount of interfit affects several aspects of bit design.

1. It allows increased space for tooth depth, more space for bearings and greater cone thickness
2. It allows mechanical cleaning of the grooves, thus helping to prevent bit balling
3. It provides space for one cone to extend across the centre of the hole to prevent coring effects
4. It helps the cutting action of the cones by increasing cone slippage.
