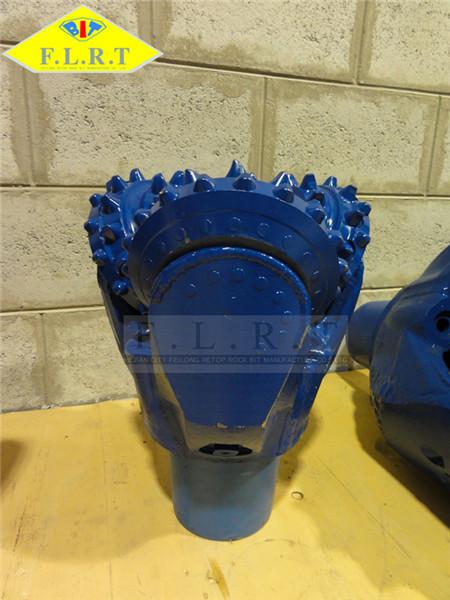

High Efficiency Milled Tooth Bit 13 5/8 FSA517G HDD Drilling Tools API-7-1 Standard
High Efficiency Milled Tooth Bit 13 5/8 FSA517G HDD Drilling Tools API-7-1 Standard
Specifications
Brand Name :
FLRT
Model Number :
13 5/8" FSA517G
Certification :
API-7-1 , ISO 9001:2008
Place of Origin :
China
MOQ :
5pcs
Supply Ability :
200pcs per quarter
Delivery Time :
5~45 workdays
Packaging Details :
plywood box / iron box
Bearing Type :
Sealed Journal Bearing With Gauge Protection
Cutting Material :
TCI
Standard :
API-7-1, ISO 9001:2008
Series :
FSA
Application 1 :
Vertical well drilling
Application 2 :
Gas well drilling
Application 3 :
Geothermal well drilling
Application 4 :
HDD Drilling
Description

13 5/8" FSA517G , TCI Tricone Bit , TCI Bit , Sealed Journal Bearing , Tricone Rock Bit , IADC 517

SIZE AVAILABLE


Form 3 7/8inch to 18 1/2inch

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code 417

437

447

517

527

537

547

617

627

 637
WOB KN/mm(Bit Dia.) 0.4~0.9 0.4~0.9 0.35~1.0 0.5~1.0 0.6~1.1 0.7~1.2
Lb/in. (Bit Dia.) 2285~5142 2285~5142 2000~5714 2857~5714 3428~6285 4000~6857
Rotation Speed (Rpm) 140~60 140~60 125~50 110~50 100~40 80~40

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.

Roller Cone Bit Bearing Seals

On a purely practical level, bearing seals have two functions: to prevent foreign materials, such as mud, cuttings, chemicals, and water, from entering the bearings and to prevent bearing lubricant from escaping the bit.

Visualize the difference in the nature of these two duties. On the interior side, the seal is excluding clean, functional lubricant from escaping the bit, while on the exterior side, the seal is excluding dirt and chemicals from penetrating the bit. The separation of these two extremely different functions takes place at a small point between the two sides of a seal. If either of these functions breaks down, the bearings and the bit could be destined for failure.
