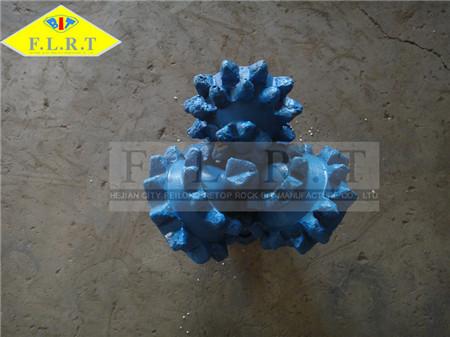

12 1/4 FSG125G Tricone Drill Bit Sealed Roller Bearing With Gauge Protection
12 1/4 FSG125G Tricone Drill Bit Sealed Roller Bearing With Gauge Protection
Specifications
Brand Name :
FLRT
Model Number :
12 1/4" FSG125G
Certification :
API-7-1, ISO 9001:2008
Place of Origin :
China
MOQ :
10pcs
Supply Ability :
300pcs per quarter
Delivery Time :
5~45 workdays
Packaging Details :
plywood box / iron box
Bearing Type :
Sealed Roller Bearing with Gauge Protection
Cutting Material :
Steel Tooth Tricone Bit
Standard :
API-7-1, ISO 9001:2008
Series :
FSG
IADC :
125
Supplementary Features 1 :
G : Reinforced Gauge Protection
Description

12 1/4" FSG125G , Tricone Drill Bit , Sealed Roller Bearing with Gauge Protection , Roller Bit

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code

114

115

124

125

134

135

214

215

244

245

324

325
WOB KN/mm(Bit Dia.) 0.3~0.75 0.3~0.85 0.3~0.95 0.35~0.95 0.35~0.95 0.4~1.0
Lb/in. (Bit Dia.) 1712~4285 1715~4857 1715~5428 2000~5428 2000~5428 2285~5714
Rotation Speed (Rpm) 200~80 200~80 180~80 180~80 180~60 150~60

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.

Bearing systems

Roller cone bearing systems are designed to be in satisfactory operating condition when the cutting structure of the bit is worn out. To achieve this standard of bearing performance, modern goals for seal and bearing system life are 1 million or more revolutions of a bit without failure, as opposed to ≈300,000 or fewer in the recent past. To achieve this goal, research into bearing, seal, and lubricant designs and into materials that improve seal and bearing life is ongoing.

Roller-cone bits primarily use two types of bearings: roller bearings and journal bearings, sometimes called friction bearings. Each type is normally composed of a number of separate components, including:

1-Primary bearings
2-Secondary bearings
3-Seal system
4-Features that resist thrust loading
5-Cone retention balls
6-A lubrication system
