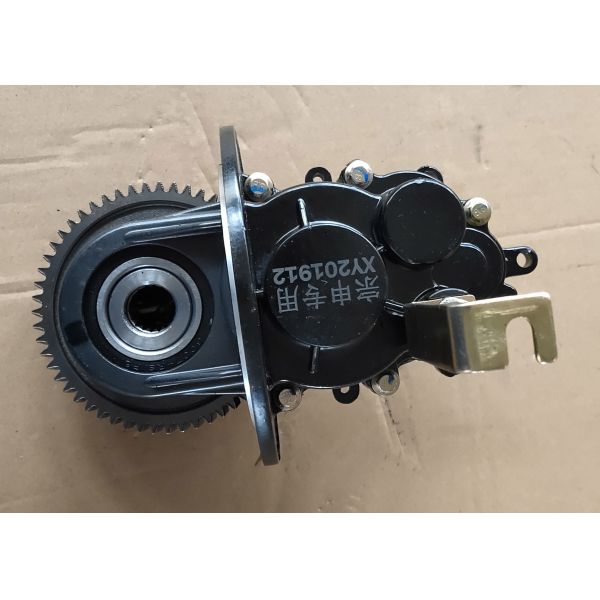

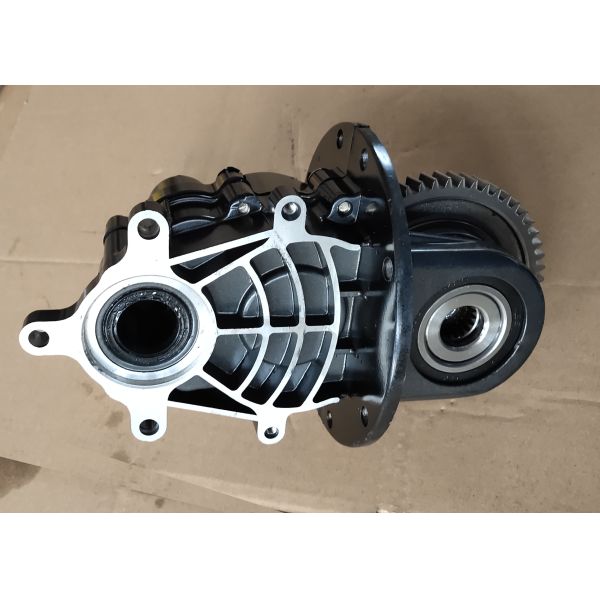

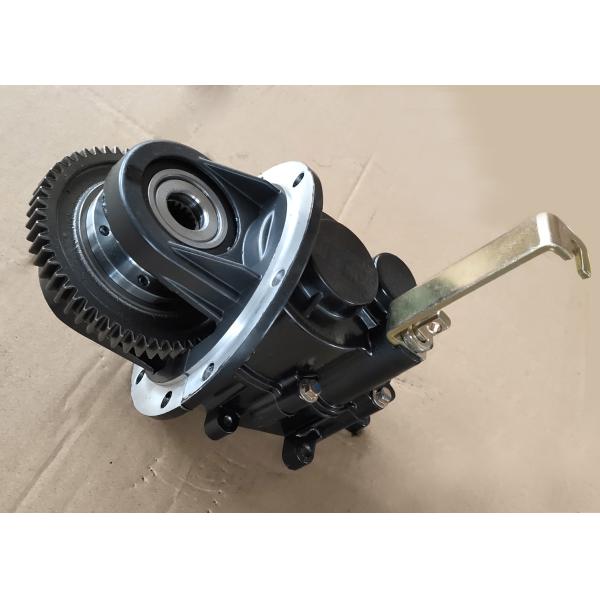

800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle
800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle
800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle
800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle
800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle
800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle
800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle
800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle
Specifications
Brand Name :
ZHUIYE
Model Number :
Electric Gearbox
Certification :
ISO/TS16949
Place of Origin :
CHONGQING
MOQ :
50
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300SETS Per Week
Delivery Time :
As per quantity
Packaging Details :
Carton, Wooden Case etc.
Ratio :
H:9.2 L:23.239
Body Material :
AL Alloy
Gear Material :
20CrMnTi
Gear Modulus :
m1.75-m2.5
Speed :
2
Application :
Tricycle/Rickshaw/ATV
Description

800 W Electric Motor Auto Rickshaw Gearbox Reducer With Two Speed For Passenger and Cargo Tricycle

Electric Gearbox Parameters

Ratio

H:9.2 L:23.239

Power Output Spline

16T/18T

Gear Material

20CrMnTi

Housing Material

AL Alloy

Loading

≤500KGS

Speed

2

Lubrication Oil

GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil

Gradeability

20°

Motor shaft

Z16 M1.25 α20 β15 X+0.28

Input RPM

3000±100rpm

Shifting

H--L

Noise

≤75db(A)

Gear Modulus

m1.75-m2.5

Brand

Zhuiye

Packing (pcs/ctn)

2pcs/ctn

G.W. (kgs/ctn)

Carton size

370*220*210mm3

Application

Tricycle/Rickshaw/ATV

Packaging

Carton, Wooden Case etc.

Electric Gearbox Is Spur Gear Model

The spur gear unit has front or toothed wheels arranged on parallel axes. In the simplest form, the spur gear system consists of two shafts, on each of which a gearwheel is arranged. Multi-speed transmissions can be mapped by additional gears and intermediate shafts.
A significant advantage is the comparatively simple design with only a few moving parts, which gives the spur gear transmissions a high degree of robustness. External toothed gears provide a direct transmission, which makes the transmission efficient.
A disadvantage is the higher dead weight compared to planetary gears.

Electric Gearbox More Pictures

800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle

800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle

800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle

Electric Gearbox Installation

Electric Gearbox Shipping&Packing

800W Electric Motor Auto Rickshaw Gearbox For Cargo Tricycle

Electric gearbox can be packed by carton, pallet, carton+pallet or any other packing as per your requirements. Electric gearbox usually chooses containerized sea shipping in quantity delivery or air delivery in sample orders.

FAQ

1. Are you manufacturer?

Yes. We are one of leading manufacturers in rear axle design&development.

2. Do you have stock products to sell?

Yes, a few. And we also offer OEM&ODM service. Please send us your drawing.

3. What information needed to get gearbox quotation?

a). Motor watts.

b). Vehicle max loading.

c). Packing&Shipping requirements.

d). Quantity needed.

4. Do you inspect the finished products?

Yes. Each step of production will be carried out inspection by QC department until finishing.
