Miniature Diaphragm Pump DC 12V 24V 36V Water Pump Water Purifier FDA Food Grade Pump 2L/min mini water dispenser pump
Miniature Diaphragm Pump DC 12V 24V 36V Water Pump Water Purifier FDA Food Grade Pump 2L/min mini water dispenser pump
Miniature Diaphragm Pump DC 12V 24V 36V Water Pump Water Purifier FDA Food Grade Pump 2L/min mini water dispenser pump
Miniature Diaphragm Pump DC 12V 24V 36V Water Pump Water Purifier FDA Food Grade Pump 2L/min mini water dispenser pump
Miniature Diaphragm Pump DC 12V 24V 36V Water Pump Water Purifier FDA Food Grade Pump 2L/min mini water dispenser pump
Miniature Diaphragm Pump DC 12V 24V 36V Water Pump Water Purifier FDA Food Grade Pump 2L/min mini water dispenser pump
Specifications
Brand Name :
Sovoflo
Model Number :
SOD40-02
Certification :
CE,ROHS,FDA
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50,000pcs per month
Delivery Time :
5-15 working days
Packaging Details :
Carton box
Theroy :
Vacuum pump
Structure :
Diaphragm pump
Usage :
Liquid
Power :
Electric
Fuel :
DC power
Standard Or Nonstandard :
Nonstandard
Description

Miniature Diaphragm Pump DC 12V 24V 36V Water Pump Water Purifier FDA Food Grade Pump 2L/min mini water dispenser pump

Detailed Specification

Item Mini diaphragm pump
Voltage 12V/24V/36V
Power 6-15W
Current ＜680mA
Ideal Fluid 10-60℃
Room Temperature 0-60℃
Pressure 4.5Bra
Working mode Continuous
Inlet hosing port OD 6.4mm
Flexible hosing port OD 5.5mm

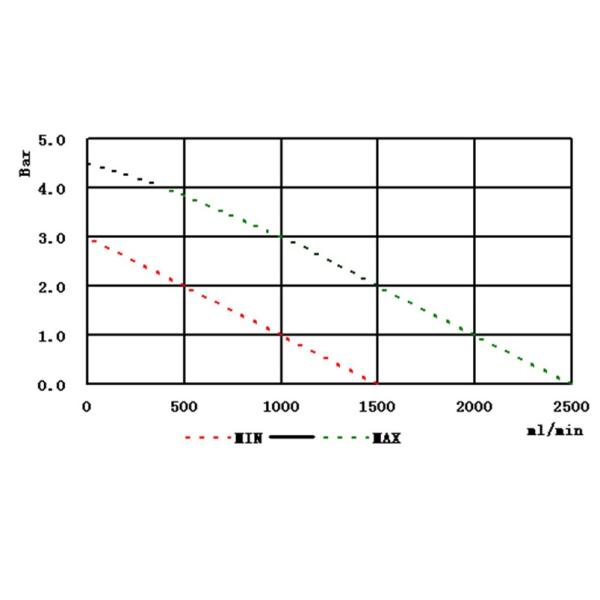

Flow Rate (0bar) 1500-2500ML/MIN
Noise(1M) ＜55dB
Dry pumping function Available
Installation Self-priming
Weight 328G
Life >500H

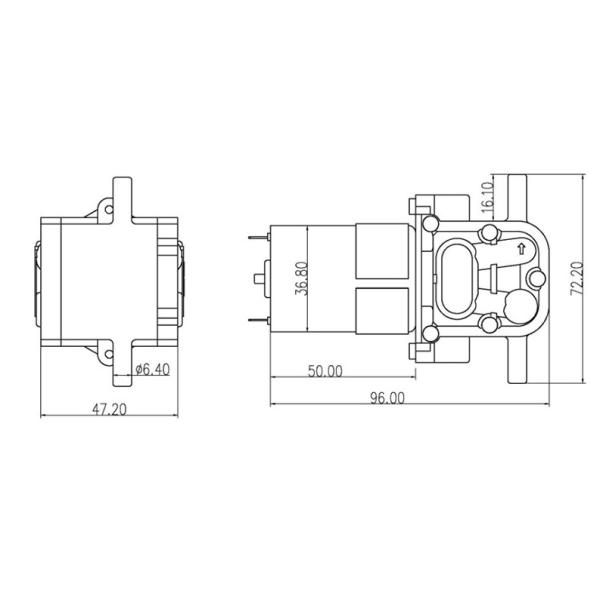

Dimension 71.4x27.0x24.0mm

Application
Instant hot water Dispenser
Hand disinfector
Water recycling Equipment
Automatic Wine

Filter

Ice machine

Electric steaming furnace
