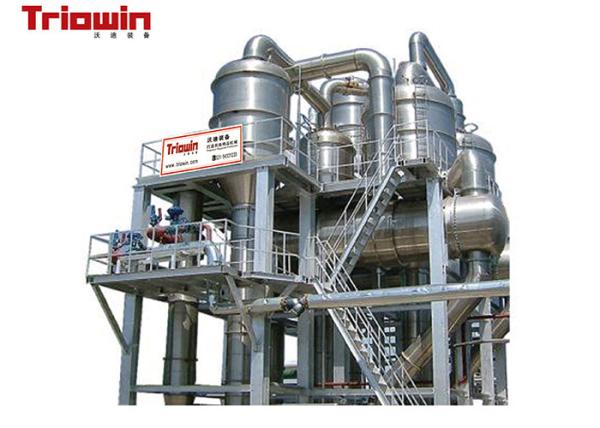

Industrial Food Processing Machinery Juice Rising Film Evaporator High Capacity
Industrial Food Processing Machinery Juice Rising Film Evaporator High Capacity
Industrial Food Processing Machinery Juice Rising Film Evaporator High Capacity
Industrial Food Processing Machinery Juice Rising Film Evaporator High Capacity
Specifications
Brand Name :
Triowin
Model Number :
Evaporator Machine
Certification :
CE/ISO9001
Place of Origin :
Shanghai, China (Mainland)
MOQ :
1
Price :
Negotiable
Supply Ability :
50 Unit/Units per Month
Delivery Time :
120days
Packaging Details :
For export,we usually use different packs for different products according to its size
After-sales Service Provided :
Engineers available to service machinery overseas Supply Ability
Capacity(t/h) :
5-8t/h
Dimension(L*W*H) :
Standard Size
Application :
fruit&vegetable
Voltage :
380V
Condition :
New
Power (kw) :
11Kw
Hydraulic capacity(/lh) :
1200
Description

industrial Juice Evaporator Machine Food Processing Machinery Rising film evaporator

Description of Juice Evaporator Machine Food Processing Machinery

Shanghai Triowin provides evaporator dedicated to the concentration of concentrated fruit juice, jam, whole vacuum sterile, also can be used to concentrate liquid milk, etc.

Falling evaporator

Suitable for evaporation of heat-sensitive product(such as milk,juice,starch, etc.) in continuous process with high performance for end product quality control,energy saving and high stability.

Model TW15B1200 TW15B2400 TW15C3600 TWC15C10000 TWC15C20000
Hydraulic times(effect) 1 2 1 2 1 2 3 1 2 3 1 2 3
Hydraulic capacity(/lh) 1200 2400 3600 10000 20000
Vacuum degree(kpa) 65-73 89-91 65-73 89-91 59 78 90 52 76 88 52 76 88
Evaporation temperature(℃) 67-73 46-50 65-73 46-50 76 62 48 75-80 55-65 45-50 75-80 55-65 45-50
Heating temperature(℃) 82-86 67-73 87-90 70 40 76 62 93 80 65 93 80 65
Finished product concentration(%) 45-65 48-65 48-65 45-72 45-72
Heat pump pressure(mpa) 0.5-0.6 0.5-0.6 0.5-0.6 0.6-0.8 0.6-0.8
Steam consumption(kg/h) ≦500 ≦1000 ≦1550 ≦3300 ≦6600

Forced circulation evaporator


Viscous liquids or products with suspended solids like fruit and vegetable pulp is pumped through the vertical or horizontal heating elements and circulates in the system under pressure. No boiling takes place until the products reaches the separating chamber where vapor flashing occurs. Single effect, twin effects, triple effects or multi-effect forced circulation evaporators are delivered to fulfill the capacity and energy saving requirements for the different products.
