Automatic Food Processing Machinery 1000-3000 L / H Aseptic Filling Machine
Automatic Food Processing Machinery 1000-3000 L / H Aseptic Filling Machine
Automatic Food Processing Machinery 1000-3000 L / H Aseptic Filling Machine
Automatic Food Processing Machinery 1000-3000 L / H Aseptic Filling Machine
Specifications
Brand Name :
Triowin
Model Number :
Aseptic Filling Machine
Certification :
CE ISO
Place of Origin :
Shanghai, China (Mainland)
MOQ :
1
Price :
Negotiable
Supply Ability :
20 Set/Sets per Year
Delivery Time :
120days
Packaging Details :
For export,we usually use different packs for different products according to its size
After-sales Service Provided :
Engineers available to service machinery overseas Supply Ability
Voltage :
220/380V
Condition :
New
Power (kw) :
1
Weight :
Non-standard parts
capacity(L/H) :
1000~3000
Steam consumption(0.1mpa)(kg/h) :
20
Dimension(mm) :
2500*2000*2500
Description

Automatic aseptic filling machine Food Processing Machinery 1000-3000 L / H

Description of Automatic aseptic filling machine Food Processing Machinery

Triowin Aseptic Filling Systems offer a highly effective and reliable aseptic method of bulk packaging for high and low-acid food products, including tomato paste, vegetables and fruit juices, purees, particulates, concentrates, sauces, soups and dairy products.

Aseptic filler

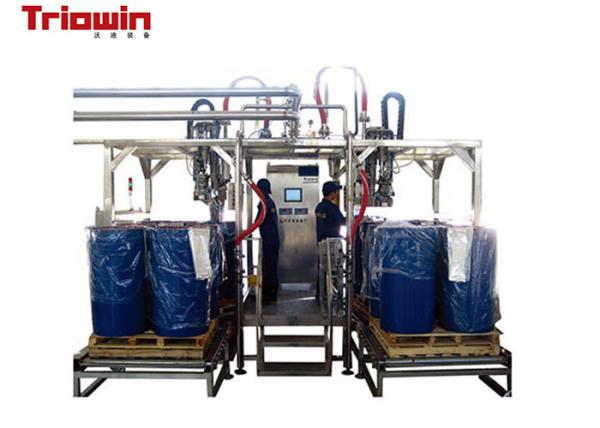

The Aseptic Filler receives drums or bins through roller conveyors. The containers can be drums in a single line, drums on a pallet (4 drums) and bins. The operator places the presterilized bag in the container then they are automatically transported under the filling station. The presterilized bag is manually placed under the aseptic chamber in a sterile environment saturated by overpressure steam. The operator pushes the start cycle and automatically the cap is removed, the bag filled with sterilized product and then recapped. The standard measure system is with load cells but also the volume system is available. At the end of the filling cycle, the roller conveyor transports the containers to the exit.

Model TW8E3000S(Single head) TW8E8000D(Double)
capacity(L/H) 1000-3000 4000-8000
power(kw) 1 1
Steam consumption(0.1mpa)(kg/h) 20 40
Compressed air consumption(8kg/cm2) 20 40
Maximum weighing range(kg) 2000 2000
Weighing error ±1% ±1%
Dimension(mm) 2500*2000*2500 3700*2000*2500
