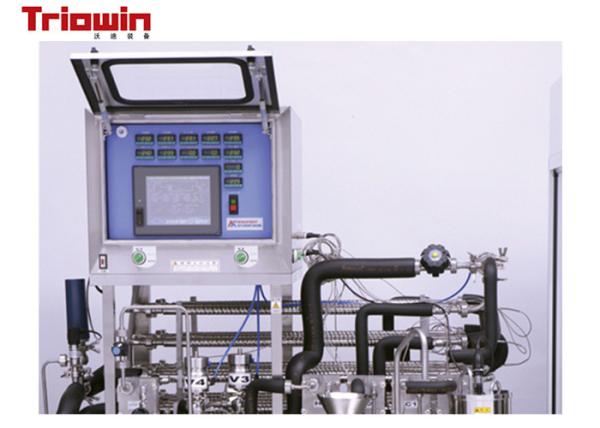

PT-20T Tube Sterilizer Food Pilot Plant Particulates Fruit Juices With Cells
PT-20T Tube Sterilizer Food Pilot Plant Particulates Fruit Juices With Cells
PT-20T Tube Sterilizer Food Pilot Plant Particulates Fruit Juices With Cells
PT-20T Tube Sterilizer Food Pilot Plant Particulates Fruit Juices With Cells
Specifications
Brand Name :
Triowin
Model Number :
PT-20T Tube Sterilizer
Certification :
CE ISO
Place of Origin :
Shanghai, China (Mainland)
MOQ :
1
Price :
Negotiable
Supply Ability :
300 Unit/Units per MonthA
Delivery Time :
120 days after receiving deposit
Packaging Details :
For export,we usually use different packs for different products according to its size
Voltage :
220/380V
Warranty :
1 Year
Weight :
110kg
Dimension(L*W*H) :
750×505×1600（L×W×H)
Production capacity :
max 2000ml/h
Heater power :
3kw AC220v single phase
Material :
SUS316 stainless steel
Description

PT-20T Tube Sterilizer Lab Pilot Processing Machine particulates fruit juices with cells

Description of PT-20T Tube Sterilizer Lab Pilot Processing Machine

PT-20T series tube heat exchanger is designed to replicate industrial scale heat exchanger on a lab plant scale.the standard design incorporates a preheating, heating and cooling section. Homogenizer in line and filling system can be equipped. Individual tubes are utilized to give a variety of duties: Pre heating, heating, tap water cooling, chilling water cooling etc.Control can be realize by setting control panel or just through computer which can be easily connected. All data can be printed, recorded, downloaded, saved forever and displayed as analytic curve line.Individual tubes are utilized to give a variety of heating and cooling duties. The tubes are manufactured to our own specification and are profiled to give a degree of turbulence similar to full scale installations.

Application of PT-20T Tube Sterilizer Lab Pilot Processing Machine

High viscosity liquid products, products with particulates fruit juices with cells, soups, sauces etc.

Parameters of PT-20T Tube Sterilizer Lab Pilot Processing Machine

Holding time to be determined by client
Max.Pressure 10.0 bar
SIP(steam in place) Available
CIP(clean in place) Available
Filling inline Optional
Hom.Inline Optional
Outlet temperature Adjustable
Power 3phases,380v,13kw
