Anticorrosive Industrial Fermentation Equipment Stainless Steel Storage Tank 20000L
Anticorrosive Industrial Fermentation Equipment Stainless Steel Storage Tank 20000L
Specifications
Brand Name :
Triowin
Model Number :
Storage tank type equipment
Certification :
CE,ISO,SGS
Place of Origin :
Shanghai, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 Unit/Units per Year
Delivery Time :
120days
Packaging Details :
Export standard package
Condition :
New
Volume :
300L 500L 1000L 1500L 2000L 3000L 5000L 7500L 10000L
Tank material :
SUS304/316L stainless steel
Warranty :
1 Year
After sales service :
Engineers available to service machinery overseas
MPa Work Pressure :
ordinary pressure
Diameter mm :
650 750 1000 1100 1200 1400 1700 1800 2000
Height mm :
800 1000 1000 1500 1500 1750 2000 2750 3000
Description

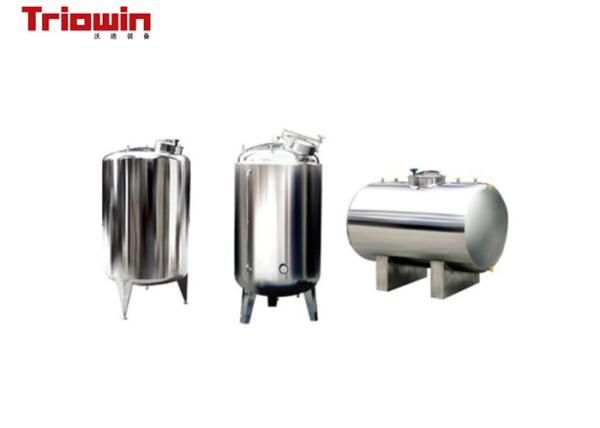

20000L Storage tank type equipment Industrial Fermentation Equipment stainless steel

Description of 50-20000L Storage tank type equipment:

The tank is designed with reasonable height-diameter ratio , beautiful structure.The inlet and outlet flow can be controlled automatically.The inner liner is polished to Ra < 0.4 micron and the surface of outer can be treated with matte, wire drawing and acid pickling The body is installed vertically or horizontally with additional insulation,whose thickness is generally 50mm. The material can be made of polyurethane, aluminium silicate fiber, perlite wool, etc. The outer insulation leather is made of stainless steel plate. There are water intake, breathing mouth, cleaning mouth, liquid level gauge mouth (which can be side-mounted), liquid discharge mouth, manhole/hand hole equipped on the tank. The volume is vary from 50-20000L.

Parameter of 50-20000L Storage tank type equipment:

Volume 300L 500L 1000L 1500L 2000L 3000L 5000L 7500L 10000L

MPa

Work Pressure

 ordinary pressure ordinary pressure ordinary pressure ordinary pressure ordinary pressure ordinary pressure ordinary pressure ordinary pressure ordinary pressure

Diameter

mm

 650 750 1000 1100 1200 1400 1700 1800 2000

Height

mm

 800 1000 1000 1500 1500 1750 2000 2750 3000

Control Option of 50-20000L Storage tank type equipment:

1. Automatic control for drugs / batches

2. Automatic control for feed / discharge flow rate.

3. Automatic control for liquid level

4. Control for CIP Cleaning

5. Automatic control for dead time

6. Control for production safety

7. Control mode(PLC/DCS)
