220V/380V Small Scale Tomato Paste Processing Line With Sorting Section
220V/380V Small Scale Tomato Paste Processing Line With Sorting Section
Specifications
Brand Name :
Triowin
Model Number :
tomato paste making machine
Certification :
CE/ISO9001
Place of Origin :
Shanghai, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 units per year
Delivery Time :
60-120days
Packaging Details :
Export standard package
Condition :
New
Voltage :
220V/380V
Raw material handling capacity(t/d) :
60
Water Consumption :
7.1
Power(kw) :
83.8
Warranty :
1 Year
After-sales Service Provide :
After-sales Service Provide
Steam Consumption(t/h) :
1.665
Description

small tomato paste making machine of tomato paste processing plant one Year Warranty

Shanghai Triowin Intelligent Machinery Co., Ltd a professional tomato processing machine manufacturer and exporter in China.which can provide turnkey solution and technology for tomato processing line.

Description of tomato paste making machine of tomato paste processing plant :

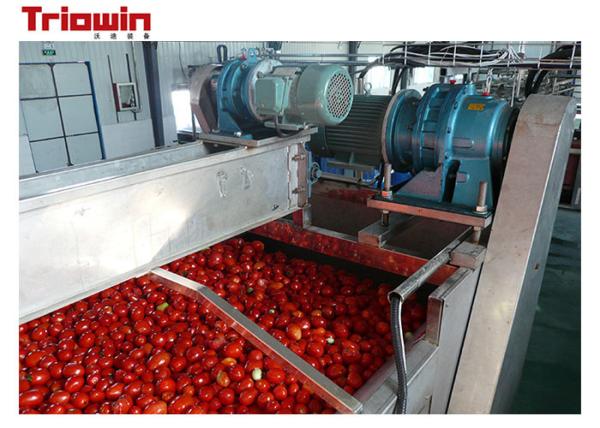

Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving, pre-washing and sorting section; extracting section; concentrating section; pasteurizing or sterilizing section; aseptic filling section. It is mainly composed of discharge system, hydraulic convey system, bucket elevating, washing and sorting system, crushing system, pre-heating system, pulping and refining system, evaporating& concentrating system, sterilizing system, aseptic filling system. Tomato paste in aseptic drum can be further processed to ketchup, sauces, juices in tin can/bottle/pouch, etc.

Application of tomato paste making machine of tomato paste processing plant :

Shanghai triowin offers complete process line on turnkey basis to produce the following end products from tomatoes.

1. Tomato Puree from tomato processing plant

2. Tomato Powder from tomato powder processing plant

3. Tomato Ketchup/Sauces from tomato ketchup puree plant

4. Tomato Juices from tomato juice processing plant

Advantage of tomato paste making machine of tomato paste processing plant :

  • * Advanced technology.
  • * High quality material, the reasonable component of the market.
  • * Semi-automatic as well as fully automatic system available.
  • * Field start and related training.
  • * The finished product quality is excellent, and the color is delicious.
  • * High productivity, flexible production, can be customized according to customer demand.

Specification of tomato paste making machine of tomato paste processing plant :

Raw material handling capacity(t/d) 60 150 250 500 750 1000 1250 1500 2000
Evaporation Form Double
vacuum		 Double
vacuum		 Three
vacuum		 Three
vacuum		 Three
vacuum		 Three
vacuum		 Three
vacuum		 Three
vacuum		 Three
vacuum
Water Consumption 7.1 13.1 21.6 44.3 65.7 44.3 65.9 65.9 79.08
Power(kw) 83.8 151.5 412.4 636.2 955.4 1291.6 1411.1 1558.1 1869.7
Steam Consumption(t/h) 1.665 3.87 5.22 9.14 15.01 20.2 24.62 29.15 34.98
Compressed Air Consumption(t/h) 66.2 66.2 66.2 72.2 72.1 72.2 72.2 72.2 86.84
Cooling Water Consumtion(t/h) 125 317 307 585 825 1075 1410 1630 1956

Flow Chart of tomato paste making machine of tomato paste processing plant:

220V/380V Small Scale Tomato Paste Processing Line With Sorting Section

Type of end product:

220V/380V Small Scale Tomato Paste Processing Line With Sorting Section

Tomato Paste
