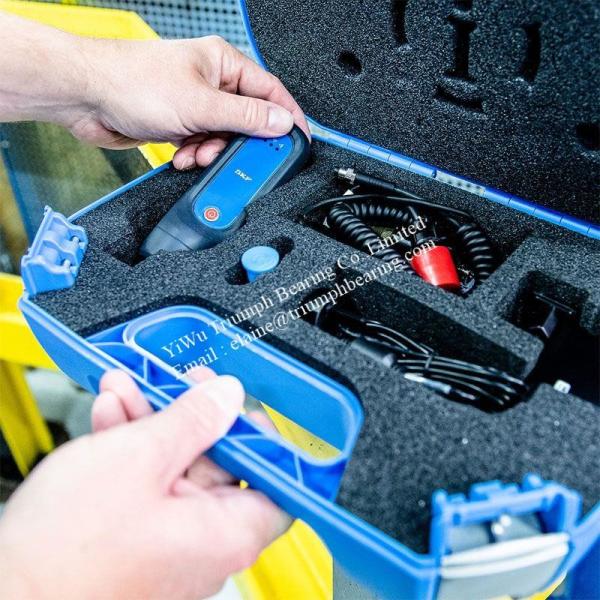

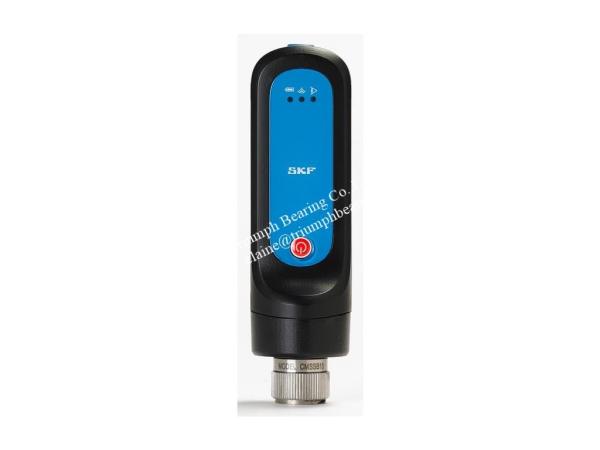

100% Original QuickCollect sensor CMDT 391-K-SL Bluetooth Vibration Meter plus Machine Condition Advisor

Specifications

Model Number :

CMDT 391-K-SL

Place of Origin :

Sweden

MOQ :

Payment Terms :

PayPal , Western Union, T/T, MoneyGram

Delivery Time :

1 day upon your payment

Packaging Details :

Carton Box

Description

Measurement Display

Measurements taken by the sensor are shown on your mobile device, which displays velocity, enveloped acceleration, and temperature as shown below:

Each reading displays a current overall measurement, including alarm status, minimum and maximum values, and alert and danger thresholds.

Manufacturer Specs

Model CMDT 391-K-SL Specifications
Environmental, regulator, and physical
Operating Temperature Range	–20 to +60 °C (–5 to +140 °F)
Storage Temperature Range	–20 to +45 °C (–5 to +115 °F) for less than one month –20 to +35 °C (–5 to +95 °F) for less than six months
Charging Temperature, Range (Sensor/Charger)	0 to 40 °C (32 to 105 °F)
Humidity	95% non-condensing
Altitude	Up to 2 000 m (6 560 ft)
Drop Test	1.8 m (6 ft) in accordance with MIL-STD-810G
Sensor IP Rating	IP65 (Dust and water ingress protection testing standard.)
Radio Approvals	Europe (CE), USA (FCC), Canada (IC)
CE Marks	CE-approved
Dimensions	45 x 45 x 135 mm (1.8 x 1.8 x 5.3 in.)
Mass	200 g (7 oz)
Power
Sensor Power Source	Rechargeable lithium battery, 3.7 V DC. 0.14 Ah
Battery Lifetime	A full working day under normal usage reducing to half a working day when an external sensor is being used.
Charger	Input 100 to 240 V AC, 0.4 A, 47 to 63 Hz
Measurement And Analysis Functions
Internal Sensor	±5%: 5 Hz to 3 000 Hz
Frequency Range	±10%: 3 Hz to 5 000 Hz ±3 dB: 1.4 Hz to 10 000 Hz The response is attenuating (3 dB down) at both frequencies
Overall Velocity	10 Hz to 1 kHz up to 55 mm/s RMS
Bearing Condition	patented Enveloped acceleration gE Bands 2 and 3, up to 20 gE True Peak-to-Peak
Temperature	Built in infrared (IR) sensor Capable of measuring outside the QuickCollect operating temperature range and up to 100 °C for short periods
Vibration Time Waveforms	Acceleration (g), Enveloped acceleration (gE) Sample rates: 256 Hz to 25.6 kHz Sample lengths: 256 to 8 192 samples
Spectrum/FFT	Acceleration (g), Velocity (mm/s), Enveloped acceleration (gE) Maximum frequency: 100 Hz to 10 kHz Resolution: 100 to 3 200 lines
Note that the full measurement and analysis capability shown above is only available for systems using the ProCollect app and Enlight Centre. Vibration measurements apply equally to either the internal or an external sensor.
External Sensor Support
External Sensor Type	2-wire, constant current, 100 mV/g accelerometers Supports ICP accelerometers. Provides 3 mA minimum.
Connection Cable	CMAC 8010 (IEPE). See also: External sensor setup.

Tech Specs

Reliability / Preventative Maint / Rotational/Vibration Meter Template
Velocity Range	3600 RPM
Number of Channels	1
Peak/Hold	Yes
Test Equipment General Attributes
Unique Features	Bluetooth Communication
Safety Approval	ATEX, CE, IECEx
Interfaces I/O	Bluetooth
IP Rating	IP65
Product Weight	0.44 LBS
Product Height	5.3 IN
Product Length	1.8 IN
Product Width	1.8 IN
Shipping Weight	1.99 LBS
HTS/Schedule B Number	9027.90.5695
ECCN Number	EAR99
Battery Type	Li-ion
Power Supply Voltage	Battery Powered
Country of Origin	Sweden
Shipping Height	8.00 IN
Shipping Length	4.00 IN
Shipping Width	8.00 IN
