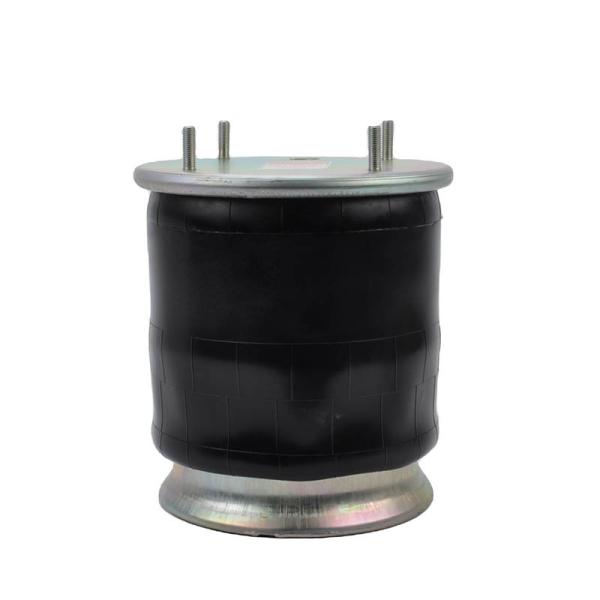

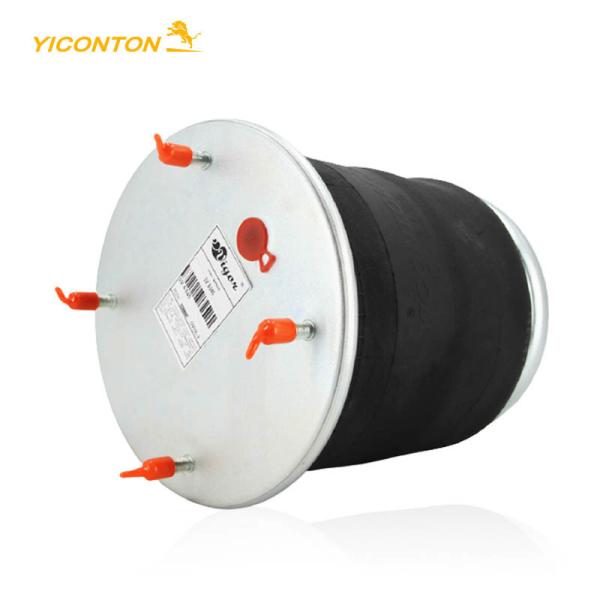

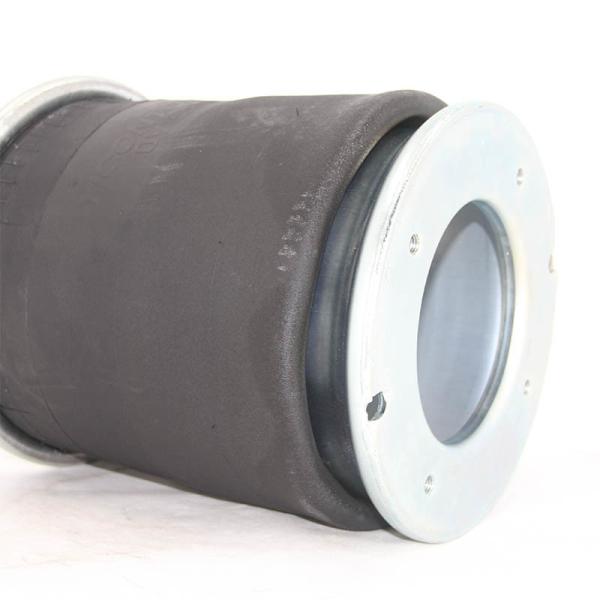

Air Spring for Trucks Air Spring 1080707 Firestone W01-M58-6345 Contitech 810MB
Air Spring for Trucks Air Spring 1080707 Firestone W01-M58-6345 Contitech 810MB
Air Spring for Trucks Air Spring 1080707 Firestone W01-M58-6345 Contitech 810MB
Air Spring for Trucks Air Spring 1080707 Firestone W01-M58-6345 Contitech 810MB
Air Spring for Trucks Air Spring 1080707 Firestone W01-M58-6345 Contitech 810MB
Air Spring for Trucks Air Spring 1080707 Firestone W01-M58-6345 Contitech 810MB
Specifications
Brand Name :
YICONTON
Model Number :
1V6345
Certification :
ITAF16949
Place of Origin :
Yunfu City,Guangdong Province,China
MOQ :
10
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
500pcs/month
Delivery Time :
5-7 Work Days
Packaging Details :
Neutral Carton Box
Material :
Rubber+ Steel
Color :
Black
Type :
Truck Spring
OEM No. :
1080707
Weight :
11.822
Packing Size :
29*29*38
Brand :
YICONTON
Description

Air Spring for Trucks Air Spring 1080707 Firestone W01-M58-6345 Contitech 810MB

Details

❶ Screw Bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75

Screw Center Distance of Top Cover Plate : 158.8mm

Distance Between Stud and Central Axis : 79.4 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud : 79.4 mm

Distance Between Gas Hole and Central Axis : 79.4 mm

❸ Cover Plate

Top Cover Plate Diameter: Ø286 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 320 mm

Rubber Bellows MAX Height : 550 mm

Rubber Bellows MIN Height :184mm

Working stroke : 366 mm

❺ Bumper block / Buffer block

Bumper Block height :58 mm

❻ Bottom Piston

Bottom Piston Diameter : Ø260 mm

Bottom Piston Height :139.8mm

❼ Piston Bolt

Piston Bolt Tooth : M12 X1.75

4 pieces of Bolt

Middle faster between center Bolt : Ø200 mm

More OEM No.

Firestone :W01-M58-6345
Contirech :810MB
Goodyear :1R14-716
Phoenix :1D28A-2
Wewelerl :US07337, US00622, US87413
Tec :506243/01
Granning :15635
ROR/Meritor:21215632/21208082
SAF :2.229.0002.00
Hendrickson :506243
:1080707
DAF :1384273
