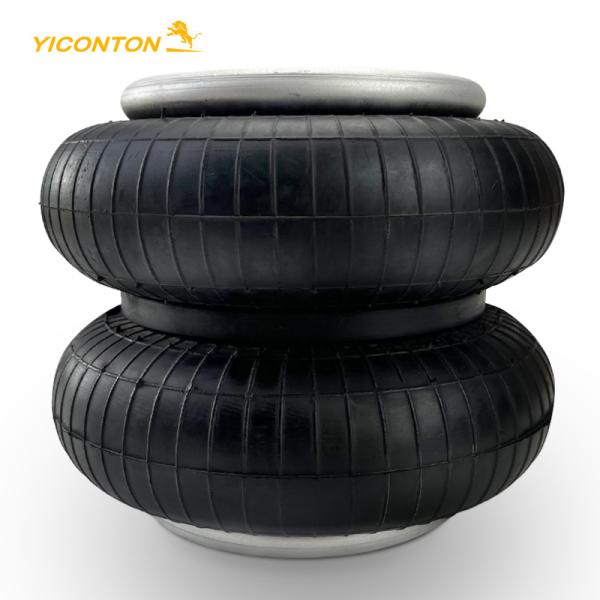

W01-M58-7894 Double Convoluted Truck Air Spring Contitech FD200-19P041
W01-M58-7894 Double Convoluted Truck Air Spring Contitech FD200-19P041
W01-M58-7894 Double Convoluted Truck Air Spring Contitech FD200-19P041
W01-M58-7894 Double Convoluted Truck Air Spring Contitech FD200-19P041
Specifications
Brand Name :
Yiconton
Model Number :
2B 5258-90
Certification :
IATF16949
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
500pieces/Month
Delivery Time :
5-8 Work Days
Packaging Details :
Carton
Main Material :
Steel Cover Plate , Rubber Bellows
Product name :
Double convoluted air spring
Net weight :
3.37 kg
Package dimension :
24*24*24mm
Bellows Type :
Double Convoluted
Cross references :
W01-M58-7894,FD200-19P041/4M10
Pressure Ability :
0.2-0.8 M Pa
Operation :
Gas-filled
Description

W01-M58-7894 Double convoluted Air spring truck Contitech FD200-19P041

Cross references
Airtech No.
113002
Airtech Ref.
2B-220-3
Blacktech
2C 21 P12
CF Gomma No.
207773
CF Gomma Ref.
20
ContiTech
FD 200-19 P041
Dunlop F
S09201
Firestone No.
W01-M58-7894
Firestone Style
20F
Gart No.
291.2.203
Gart Ref.
T291/2
Goodyear
2B9-700
Goodyear Flex No.
578-92-3-211
Prime-Ride New
2B9-700
Prime-Ride New Flex No.
578-92-3-211
Springride
2B9-700
Original parts
Granning
15599
Scania
1723523
Kögel
6502824
Scania
1387289
Scania
1319761
Kögel
6501706
SAF - Holland
4.229.1004.00

Specifications and Detail Technical Parameters

❶Nut/blind nut

Top plate screw (nut) teeth: 2XM10X1.5
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2XM10X1.5
The screw center distance of the bottom cover plate: 89 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet: G1 / 4
Screw center distance between air hole and nut: 44.5 mm

❸Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 251 mm
Natural diameter of rubber bellows: 224 mm
Working stroke: minimum 75 mm to maximum 260 mm
Maximum height: 274 mm
Minimum height: 95mm
Stroke height: 179mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

What is the purpose of an air spring?

An air spring is basically a column of air confined within a rubber-and-fabric container shaped like a bellows. The spring action results from the compression and expansion of the air. When used on road vehicles, air springs can keep the vehicle at a constant standing height regardless of load.

Yiconton Convoluted Air Spring Benefits

Require little to no maintenance
Pressure tested for quality assurance
Increase towing and hauling capabilities
Replace worn out oem air bags
Increase life of other suspension components


Product picture

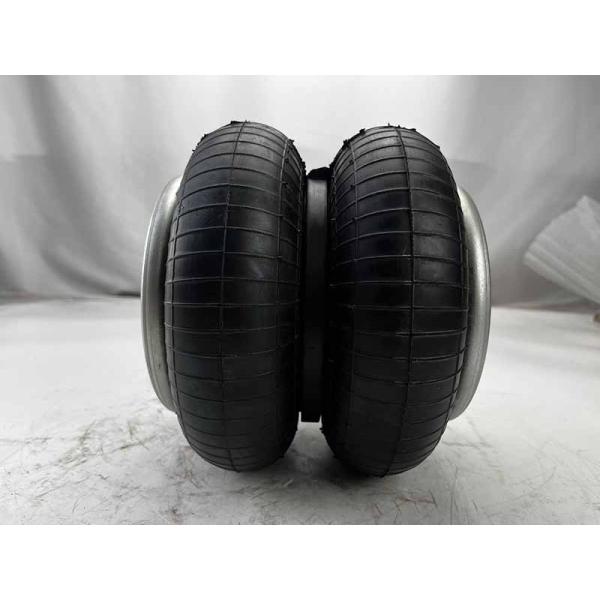

W01-M58-7894 Double Convoluted Truck Air Spring Contitech FD200-19P041
