Rubber Suspension Air Ride Spring Double Air Bag Bellows W01-358-7550
Rubber Suspension Air Ride Spring Double Air Bag Bellows W01-358-7550
Rubber Suspension Air Ride Spring Double Air Bag Bellows W01-358-7550
Rubber Suspension Air Ride Spring Double Air Bag Bellows W01-358-7550
Specifications
Brand Name :
Yiconton
Model Number :
2B 5353
Certification :
IATF16949
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
500pieces/Month
Delivery Time :
5-8 Work Days
Packaging Details :
Carton
Main Material :
Steel Cover Plate , Rubber Bellows
Product name :
Double convoluted air spring
Net weight :
6.657 kg
Package dimension :
33*33*22 mm
Bellows Type :
Double Convoluted
Cross references :
W01-358-7550,FD331-26541
Operation :
Gas-filled
Plate Dia :
224.5mm
Description

Rubber Suspension Air ride Air Spring Double Air Bag Bellows W01-358-7550

Cross references
Automann
SP2B22RB-7550
TRP
AS75500
Firestone No.
W01-358-7550
Firestone Style
228-1.5
FleetPride
AS7550
Goodyear
2B12-346
Goodyear Flex No.
578923315
Taurus
6375
Triangle
AS-4541
Original parts
Histeer
10315
Watson & Chalin
AS-0087

Products Technical Data

Technical data Top Cover Plate Diameter:224.5mm
Bottom Cover Plate Diameter:224.5mm
Gas Hole / Air inlet:1/4-18NPT
Rubber Bellows MAX Diameter:343mm
Design Height:363 mm ~ 104 mm
Top Cover Plate Screw (Nut) and air inlet Tooth:3/4-16UNF
Top Cover Plate Screw (Nut) Tooth:1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Screw and air inlet Distance of Top Cover Plate:157mm
Screw Center Distance of Bottom Cover Plate:157mm

Product testing process

There are a few steps in our manufacturing process:
1. 100% raw material inspection;
2. manufacturing process inspection;
3. 100% air leak inspection before packaging;
4. Spot check before we send it to customer.

About Yiconton

Our company has been manufacturing air suspensions since 2004. We've learned a lot about what makes a great air suspension and how to make them. Since 2009, We have started cooperating with OEM (Original equipment manufacturer). In 2010, we manufactured air pumps as well as solenoid valve blocks. In 2016, we became an automatically integrated factory.
Now, YICONTON has become the most considerable manufacturer of air suspensions in Asia. Our products have been imported worldwide, mainly in North America.

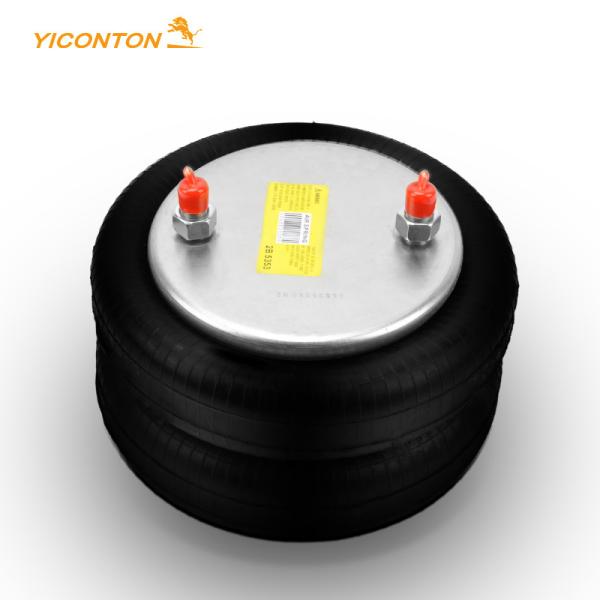

Product picture
