Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094
Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094
Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094
Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094
Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094
Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094
Specifications
Brand Name :
Yiconton
Model Number :
1B 5360
Certification :
IATF16949
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
500pieces/Month
Delivery Time :
5-8 Work Days
Packaging Details :
Carton
Main Material :
Rubber Bellows ,Steel Piston
Product name :
Industrial Air Spring / air bag
Function :
Reduce Shock
Package Dimension :
39*39*25.5cm
Other name :
Rubber Air Balloon
Net weight :
8.832kg
Firestone NO. :
W01-358-7094 W013587094
Pressure Ability :
0.2-0.8 M Pa
Description

Industrial Air Spring single convoluted air bags W01-358-7094 W013587094

Cross references
Firestone No.
W01-358-7094
W01 358 7094
W013587094
Firestone Style
113-1 1131 113 1
FleetPride
AS7094
Taurus
6326
Triangle
AS-4538 AS4538
AS 4538
TRP
AS70940

Technical Details

Compressed Height: 80mm

Top Cover Plate Diameter: 289mm

Bottom Cover Plate Diameter: 289mm

Distance Gas Hole Between Nut 79 mm

Top Cover Plate Screw (Nut) Tooth :4pcX3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 4pcX3/8-16UNC

The Working Stroke : MAX 140 mm to MIN 68 mm

Gas Hole / Air inlet : 3/4NPTF

What is the purpose of an air spring?

An air spring could be defined as a reservoir of air made of rubber and fabric, which is shaped with bellows and that can be used to support load, isolate vibrations and shocks, or act as a pneumatic cylinder by expanding itself.

About Yiconton

We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

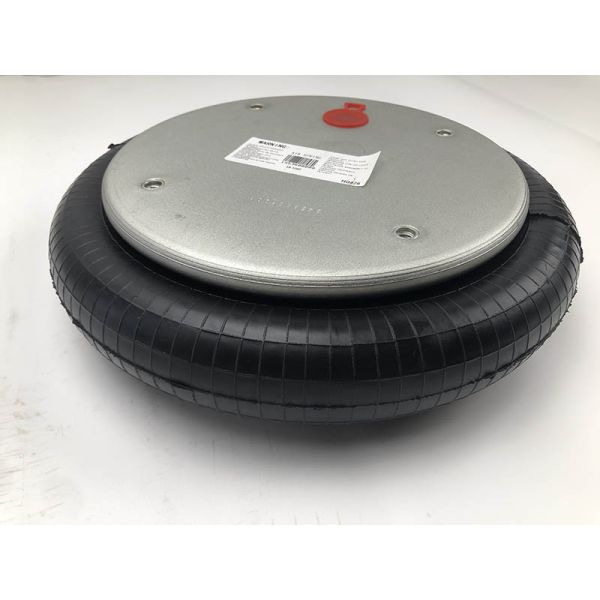

Product picture

Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094

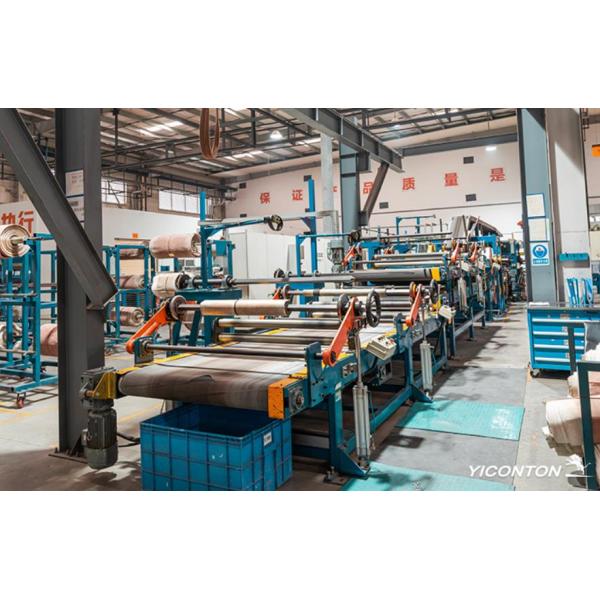

Factory picture

Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094
