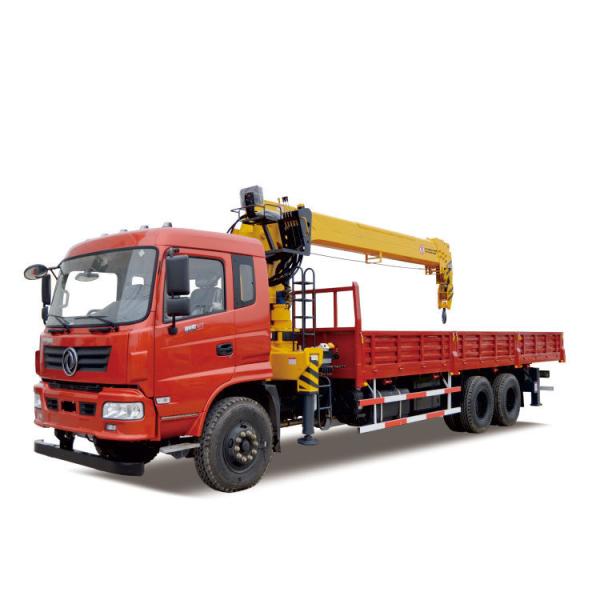

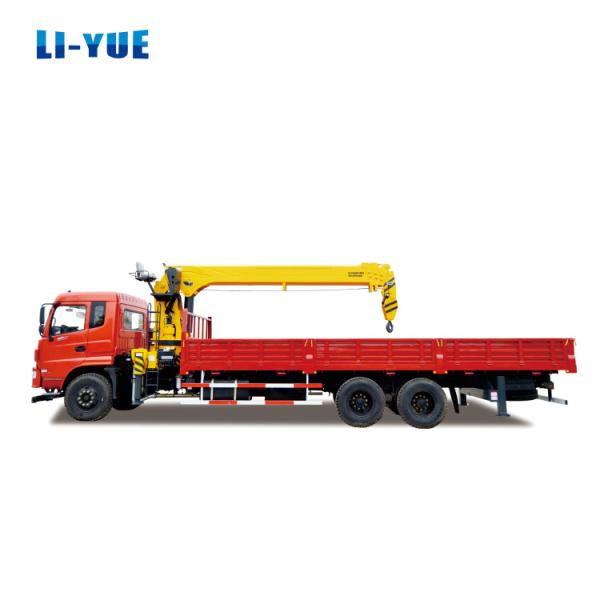

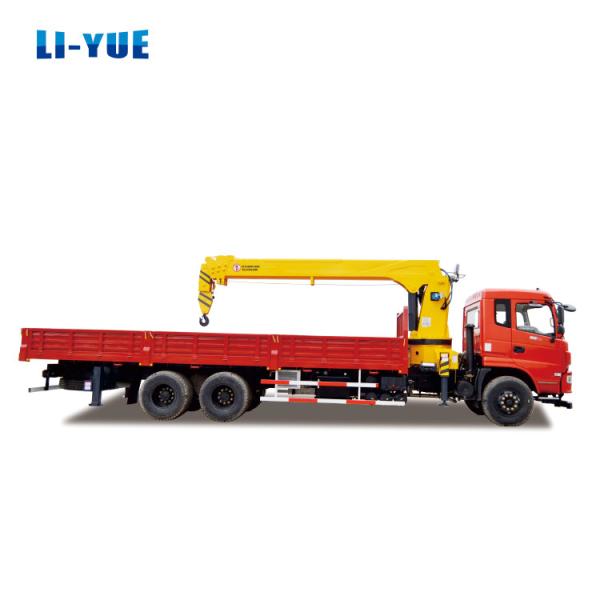

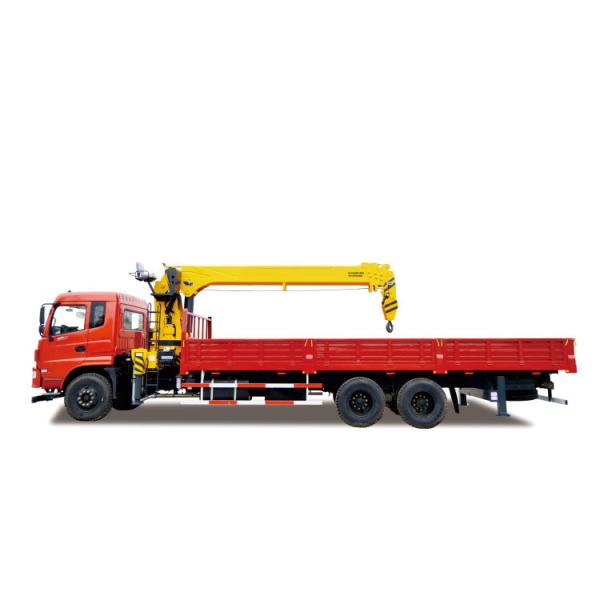

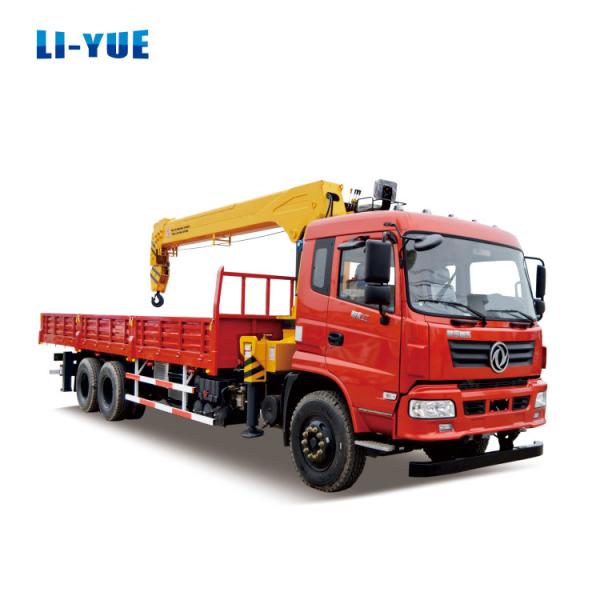

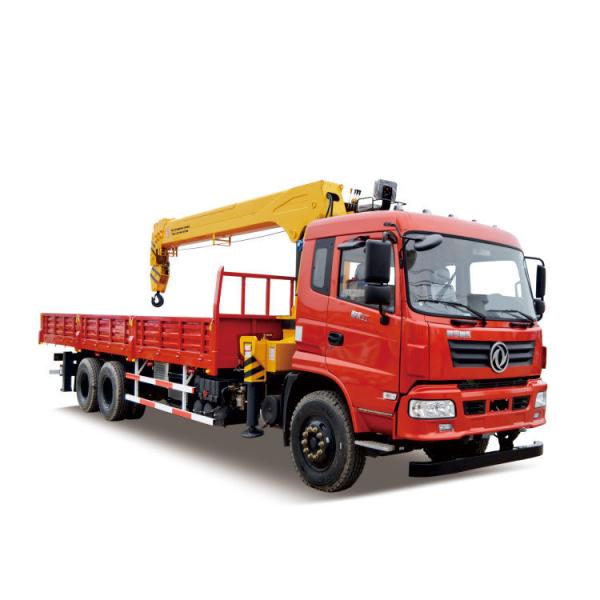

16 Ton Straight Boom Truck Crane Construction Lifting With 18.8m Max. Lifting Height

Specifications

Place of Origin :

Henan, China

Brand Name :

LIYUE

Price :

$28,300.00/units 1-2 units

Feature :

TRUCK CRANE

Showroom Location :

Indonesia

Condition :

New

Application :

Construction

Rated Loading Capacity :

16 ton

Rated Lifting Moment :

5.9-18 T.M

Max. Lifting Height :

18.8 m

Span :

2538-7240 mm

Warranty :

1 Year

Hydraulic Cylinder Brand :

MOOG

Hydraulic Pump Brand :

Changjiang

Hydraulic Valve Brand :

Liyuan

Engine Brand :

YUNNEI

UNIQUE SELLING POINT :

High operating efficiency

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Marketing Type :

Ordinary Product

Warranty of core components :

1 Year

Core Components :

Bearing, Pump

Weight (KG) :

6455 kg

Product name :

Truck Mounted Crane

Crane type :

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic parts :

Famous Brand Hydraulic Parts

Capacity :

16 Ton Truck Crane

Boom type :

Hydraulic Straight Arm

Color :

Customer Requirements

Usage :

Construction Lifting

Rotation Angle :

360 Degree

Installation space :

1400 mm

High quality :

Mobile Crane Lifting Capacity

Description

16 Ton Rated Loading Capacity Straight Boom Truck Crane With 18.8m Max. Lifting Height

Product Description

NOTE: The price is only for crane part.

Project		Unit	Value
Crane Dimension	Crane Model	-	SQ 16T
	Max. Lifting Capacity	kg	16000
	Max. Lifting Height	m	17/ 21
	Working Radius/ Span	m	2.5-18.5
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
	Boom Sections	Piece	4/ 5
	Outrigger Quantity	Piece	2
	Outrigger Span (Fully Extended)	mm	2538—7240
	Crane Weight	kg	6455
	Hydraulic Tank Capacity	L	260
	Max. Flow Rate of Hydraulic Oil System	L/min	80
	Hydraulic System Rated Pressure	Mpa	28
	Installation Space	mm	1400
Working Parameter	The Basic Boom Length	m	5.9-18
	Max. Lifting Torque	T.m	43.2
	Max. Slewing Speed	r/ min	2

Truck mounted crane, also known as lorry crane, boom crane, arrow crane, telescopic crane, etc. It can be equipped with cargo boxes of different lengths, generally 3.4m, 4.4m, 5.6m, 8.6m, etc.

Follow up lifting weight can be divided into 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 14 tons and 1 ton.

The models of truck mounted cranes mainly include SQ3.2, SQ4, SQ5, SQ6.3, SQ8, SQ10, SQ12, SQ14 and SQ16. Cranes of different tonnage.

Product Process

Famous Brand Hydraulic Parts for our Truck Crane
