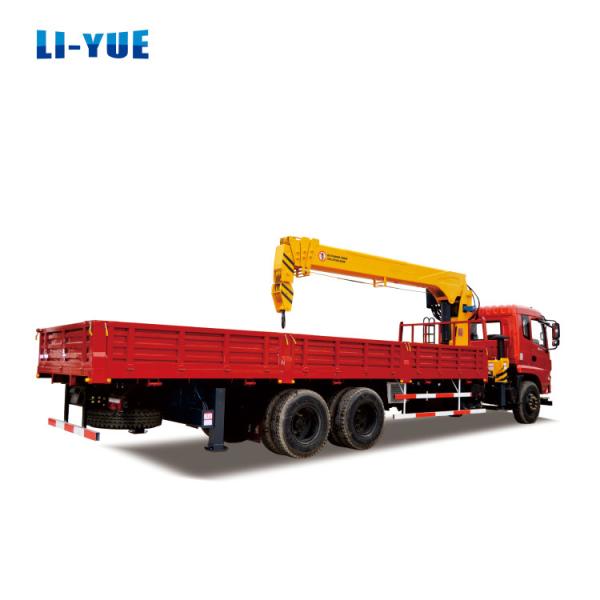

10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
Specifications
Place of Origin :
Henan, China
Brand Name :
LIYUE
Price :
$18,000.00/units 1-4 units
Feature :
TRUCK CRANE
Showroom Location :
None
Condition :
New
Application :
Construction
Rated Loading Capacity :
10000kg
Rated Lifting Moment :
25 T.M
Max. Lifting Height :
17.2 m
Span :
2280-5580mm
Warranty :
1 Year
Hydraulic Cylinder Brand :
Liyuan
Hydraulic Pump Brand :
Liyuan
Hydraulic Valve Brand :
Liyuan
Engine Brand :
Doosan
UNIQUE SELLING POINT :
High operating efficiency
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Bearing
Weight (KG) :
3800 kg
Product name :
Truck Mounted Crane
Hydraulic parts :
Telescopic Boom Mobile Crane Made
Crane type :
Truck Crane Mobile Crane Hydraulic Crane
Brand :
OEM Service
Origin :
100% China
Capacity :
10 Ton Truck Mounted Crane
Boom type :
Hydraulic Straight Arm
Chassis brand :
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
Color :
Customer Requirements
Emission standard :
Euro 1/2/3/4/5
Description
Product Specs

10 Ton 5 Sections Boom Truck Crane With Liyuan Hydraulic Pump And Low Fuel Efficiency

NOTE: The price is only for crane part.
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
SPECIFICATIONS FOR 10 TON CRANE TRUCK
Crane Dimension
Model
-
SQ 10T
Max. Lifting Capacity
kg
10000
Max. Lifting Height
m
17.2
Working Radius/ Span
m
2.5-13
Rotation Angle
º
360
Boom Elevation
º
3-75
Boom Sections
Pcs
4
Outrigger Span (Fully Extended)
mm
2250- 5580
Crane Weight
kg
3765
Hydraulic Tank Capacity
L
160
Max. Flow Rate of Hydraulic Oil System
L/min
63
Hydraulic System Rated Pressure
Mpa
26
Installation Space
mm
1150
Working Parameter
The Basic Boom Length
m
3.3- 15
Max. Lifting Torque
T.m
25
Max. Slewing Speed
r/ min
2
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
Product Show
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
More Details

We use high quality sprare parts to ensure our product quality to meet your requirment.

10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
Advanced Equipment

Our Advantage:

1- Large outrigger span, more stability of the operation.
2- Using six-edge type boom, the strength is greater.
3- Using European and American top hydraulic components, the crane is more reliable.
4- Oil circuit interface is chuck type, never loophole.
5- Using multi-leg control valves. Leg cylinders can be adjusted separately, more convenient and quick.
6- Using high-strength steel plate, the structure is more compact, the installation space is smaller.
7- Plate using laser cutting machine blanking, streamlined appearance has a good sense of beauty.

10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
Packing & Delivery

---------------------------------------------Loading in Qingdao Port---------------------------------------------

The goods are packaged and reinforced by the professional team in port, to make sure the safety during the long journey.

10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
Customer Visiting

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

10 Ton 5 Sections Boom Truck Crane With Hydraulic Pump And Low Fuel Efficiency
FAQ

A: Are you the manufacturer?
Q: Yes, we are the manufacturer.

A: What kind of truck cranes do you produce?
Q: Truck crane and truck mounted crane from 2.5T to 25T.

A: What kind of truck chassis do you use?
Q: Dongfeng, T-King truck and so on.

A: What are your payment methods?
Q: T/ T, L/ C, West Union, Paypal, Money Gram, Alipay and so on.

A: What is the delivery time?
Q: Within 20 days after we receive the deposit.

A: What's the mode of transportation?
Q: Normally by 40 feet open top containers, flat rack container or bulk vessel.

A: How long is the warranty?
Q: 1 Years warranty service.

A: How long is the history of your factory?
Q: LIYUE has been in producing truck cranes since 1980.
