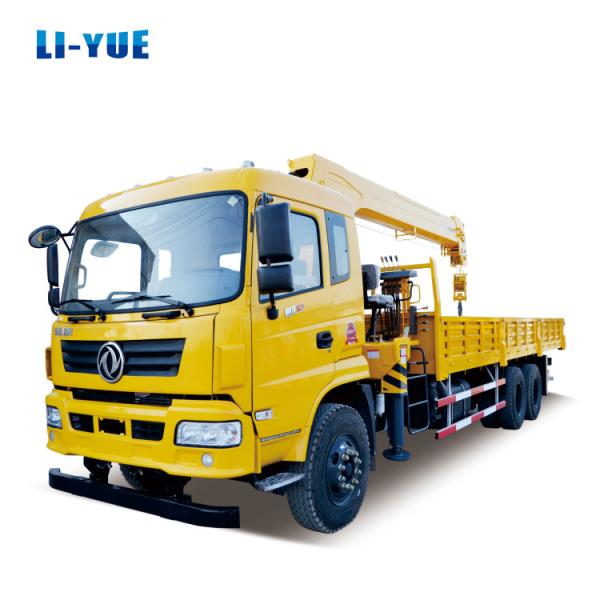

12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
Specifications
Place of Origin :
Henan, China
Brand Name :
LIYUE
Packaging Details :
Nude packing
Supply Ability :
3000 Unit/Units per Year
Price :
$21,400.00/units 1-2 units
Feature :
TRUCK CRANE
Showroom Location :
Indonesia
Condition :
New
Application :
Construction
Rated Loading Capacity :
12 ton
Rated Lifting Moment :
5.15-15 T.M
Max. Lifting Height :
17.2 m
Span :
2270-5270 mm
Warranty :
1 Year
Hydraulic Cylinder Brand :
MOOG
Hydraulic Pump Brand :
Changjiang
Hydraulic Valve Brand :
Liyuan
Engine Brand :
YUNNEI
UNIQUE SELLING POINT :
High operating efficiency
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Bearing, Pump
Weight (KG) :
4316 kg
Product name :
Truck Mounted Crane
Crane type :
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic parts :
Famous Brand Hydraulic Parts
Capacity :
12 Ton Truck Crane
Boom type :
Hydraulic Straight Arm
Color :
Customer Requirements
Usage :
Construction Lifting
Rotation Angle :
360 Degree
Installation space :
1300 mm
High quality :
Mobile Crane Lifting Capacity
Description

Lorry Crane 12 Ton Hydraulic Telescopic Arm Stiff Loader For Max. Lifting Height 17.2m

NOTE: The price is for crane part only.
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
SPECIFICATIONS FOR 12 TON CRANE TRUCK
Crane Dimension
Model
-
SQ 12T
Max. Lifting Capacity
kg
12000
Max. Lifting Height
m
17.2
Working Radius/ Span
m
2.5- 13.5
Rotation Angle
º
360
Boom Elevation
º
3-75
Boom Sections
Pcs
4
Outrigger Span (Fully Extended)
mm
2270-5270
Crane Weight
kg
4316
Hydraulic Tank Capacity
L
160
Max. Flow Rate of Hydraulic Oil System
L/min
63
Hydraulic System Rated Pressure
Mpa
26
Installation Space
mm
1300
Working Parameter
The Basic Boom Length
m
5.15-15
Max. Lifting Torque
T.m
30
Max. Slewing Speed
r/ min
2
12 Ton Lorry Crane Hydraulic Telescopic Arm Stiff Loader Max. Lifting Height 17.2m
