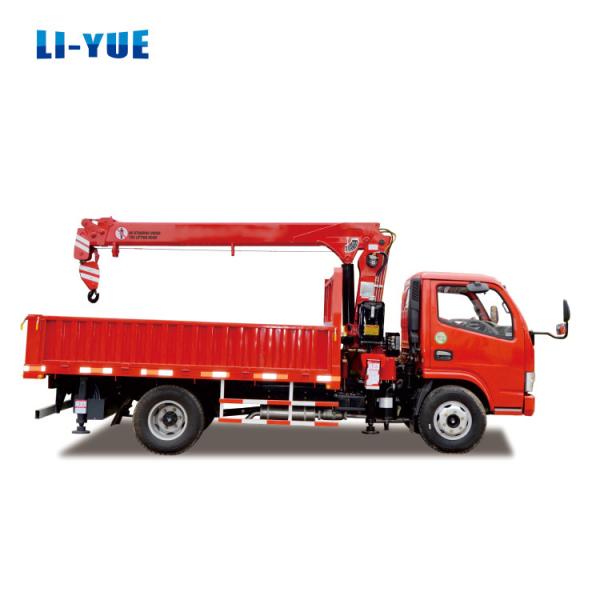

Telescopic Arm Mobile Truck Mounted Crane 4 Ton For Lifting Machinery

Specifications

Place of Origin :

Henan, China

Brand Name :

LIYUE

Packaging Details :

Nude packing

Supply Ability :

3000 Unit/Units per Year

Price :

$8,100.00/units 1-2 units

Feature :

TRUCK CRANE

Showroom Location :

Indonesia

Condition :

New

Application :

Construction

Rated Loading Capacity :

4 TON

Rated Lifting Moment :

6.8 T.M

Max. Lifting Height :

6.8 m

Span :

1989-3329 mm

Warranty :

1 Year

Hydraulic Cylinder Brand :

MOOG

Hydraulic Pump Brand :

Changjiang

Hydraulic Valve Brand :

Liyuan

Engine Brand :

YUNNEI

UNIQUE SELLING POINT :

High operating efficiency

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Marketing Type :

Ordinary Product

Warranty of core components :

1 Year

Core Components :

Bearing, Pump

Weight (KG) :

1271 kg

Product name :

Truck Mounted Crane

Crane type :

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic parts :

Famous Brand Hydraulic Parts

Capacity :

4 Ton Truck Crane

Boom type :

Hydraulic Straight Arm

Color :

Customer Requirements

Usage :

Construction Lifting

Rotation Angle :

360 Degree

Installation space :

850 mm

High quality :

Mobile Crane Lifting Capacity

Description

Hydraulic Parts 4 Ton Telescopic Arm Mobile Truck Mounted Crane For Lifting Machinery

Product Description

NOTE: The price is only for crane part.

Project		Unit	Value
Crane Dimension	Crane Model	-	SQ 4T
	Max. Lifting Capacity	kg	4000
	Max. Lifting Height	m	11.5
	Working Radius/ Span	m	2.1-7.93
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
	Boom Sections	Piece	3
	Outrigger Quantity	Piece	2
	Outrigger Span (Fully Extended)	mm	1989-3329
	Crane Weight	kg	1271
	Hydraulic Tank Capacity	L	30
	Max. Flow Rate of Hydraulic Oil System	L/min	25
	Hydraulic System Rated Pressure	Mpa	20
	Installation Space	mm	850
Working Parameter	The Basic Boom Length	m	3.3-11.5
	Max. Lifting Torque	T.m	6.8
	Max. Slewing Speed	r/ min	2

Product Description

Product Process

Famous Brand Hydraulic Parts for our Truck Crane
