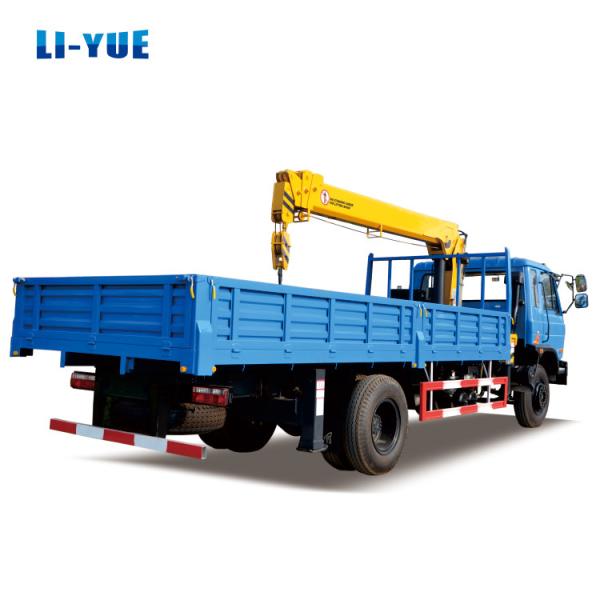

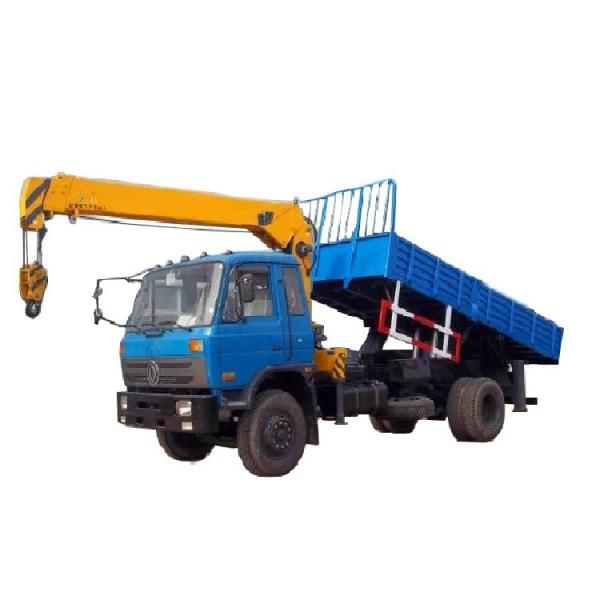

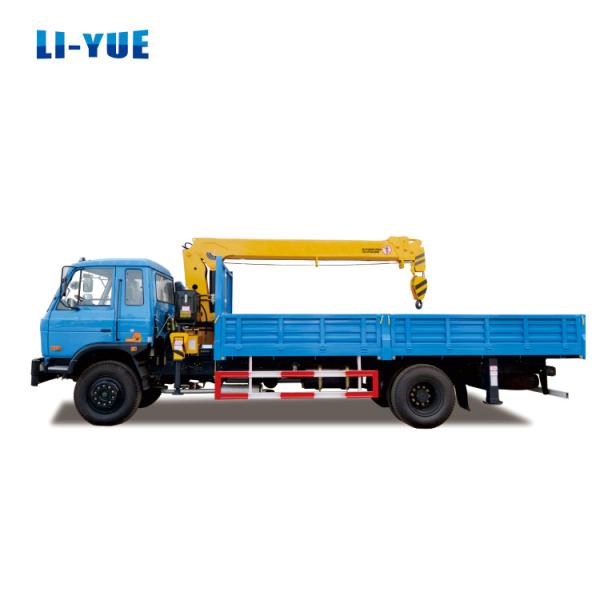

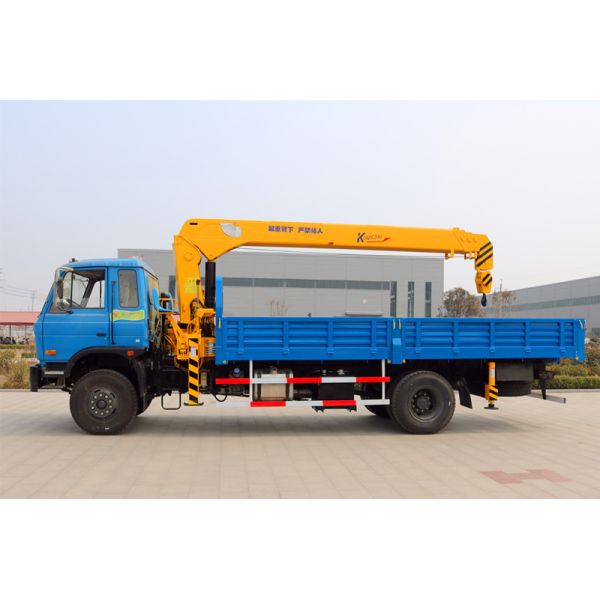

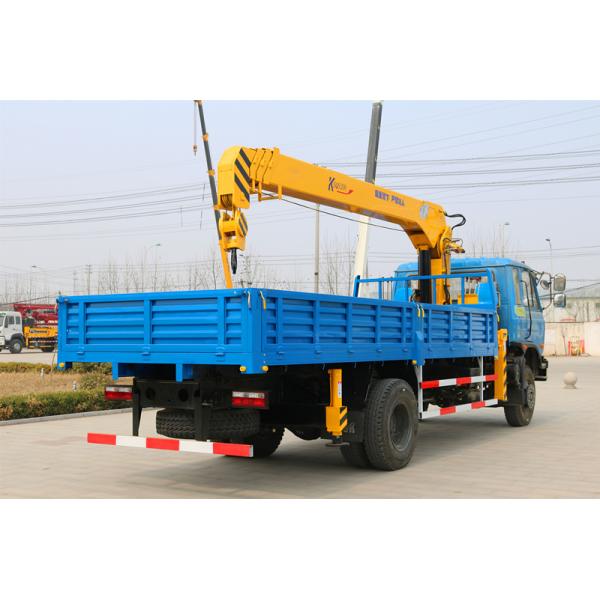

Telescopic Boom Truck Mounted Crane SQ5SK2Q YUNNEI Engine For Construction Lifting

Specifications

Place of Origin :

Henan, China

Brand Name :

LIYUE

Certification :

CE/ ISO

Packaging Details :

Nude packing

Supply Ability :

3000 Unit/Units per Year

Price :

$8,500.00/units 1-4 units

Feature :

TRUCK CRANE

Showroom Location :

Indonesia

Condition :

New

Application :

Construction

Rated Loading Capacity :

5 ton

Rated Lifting Moment :

12.5 T.M

Max. Lifting Height :

11m

Span :

4.6m

Warranty :

1 Year

Hydraulic Cylinder Brand :

MOOG

Hydraulic Pump Brand :

Changjiang

Hydraulic Valve Brand :

Liyuan

Engine Brand :

YUNNEI

UNIQUE SELLING POINT :

High operating efficiency

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Marketing Type :

Ordinary Product

Warranty of core components :

3 months

Core Components :

Bearing, Pump, Gearbox

Product name :

Truck Mounted Crane

Crane type :

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic parts :

Famous Brand Hydraulic Parts

Capacity :

1-5 Ton Truck Crane

Boom type :

Hydraulic Straight Arm

Color :

Customer Requirements

Usage :

Construction Lifting

Rotation Angle :

360 Degree

Installation space :

900mm

High quality :

Mobile Crane Lifting Capacity

Applicable Industries :

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Construction works , Energy & Mining, Advertising Company

After Warranty Service :

Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location :

Indonesia, Malaysia

After-sales Service Provided :

Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

Port :

Qingdao/ Tianjin/ Lianyungang

Description

YUNNEI Engine Truck Mounted Crane With Telescopic Boom SQ5SK2Q Max Lifting Capacity 5000kg

NOTE: The price is for crane part only.

Project		Unit	Value
Crane Dimension	Crane Model	-	SQ 5T
	Max. Lifting Capacity	kg	5000
	Max. Lifting Height	m	11.5
	Working Radius/ Span	m	2.2-8.5
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
	Boom Sections	Piece	3
	Outrigger Quantity	Piece	2
	Outrigger Span (Fully Extended)	mm	2280-5100
	Crane Weight	kg	2260
	Hydraulic Tank Capacity	L	90
	Max. Flow Rate of Hydraulic Oil System	L/min	32
	Hydraulic System Rated Pressure	Mpa	20
	Installation Space	mm	900
Working Parameter	The Basic Boom Length	m	3.8-11.5
	Max. Lifting Torque	T.m	12.5
	Max. Slewing Speed	r/ min	2

Product Process

Famous Brand Hydraulic Parts for our Truck Crane
