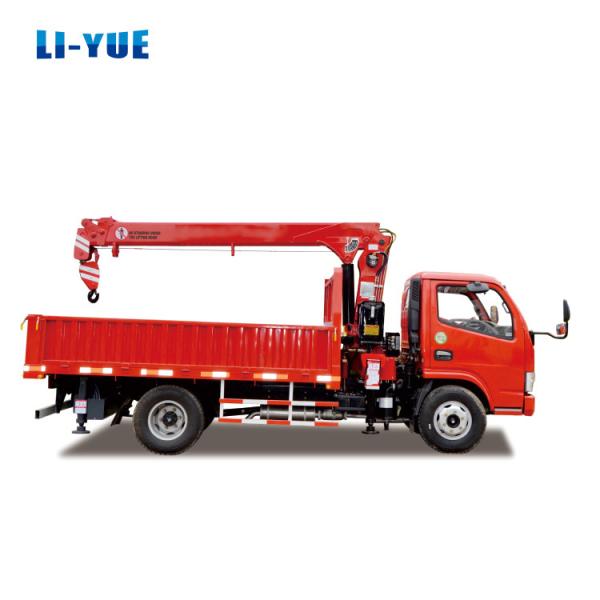

3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
Specifications
Place of Origin :
Henan, China
Brand Name :
LIYUE
Price :
$7,000.00/units 1-4 units
Feature :
TRUCK CRANE
Showroom Location :
Indonesia
Condition :
New
Application :
Construction
Rated Loading Capacity :
3 Ton
Rated Lifting Moment :
7.6 T.M
Max. Lifting Height :
11m
Span :
4.6m
Warranty :
1 Year
Hydraulic Cylinder Brand :
MOOG
Hydraulic Pump Brand :
Changjiang
Hydraulic Valve Brand :
Liyuan
Engine Brand :
YUNNEI
UNIQUE SELLING POINT :
High operating efficiency
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Bearing, Gearbox, Engine
Weight (KG) :
1500 kg
Product name :
Truck Mounted Crane
Crane type :
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic parts :
Famous Brand Hydraulic Parts
Capacity :
1-3 Ton Truck Crane
Boom type :
Hydraulic Straight Arm
Color :
Customer Requirements
Usage :
Construction Lifting
Rotation Angle :
360 Degree
Installation space :
900mm
High quality :
Mobile Crane Lifting Capacity
Description

1500 Kg Weight 3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom

Product Description
NOTE: The price is only for crane part.
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom

Project

Unit

Value

Crane Dimension

Crane Model

-

SQ 3.2T

Max. Lifting Capacity

kg

3200

Max. Lifting Height

m

9

Working Radius/ Span

m

0.67-10

Rotation Angle

º

360 Continious

Boom Raising Angle Scope

º

0-75

Boom Sections

Piece

3

Outrigger Quantity

Piece

2

Outrigger Span (Fully Extended)

mm

1898-3329

Crane Weight

kg

1290

Hydraulic Tank Capacity

L

35

Max. Flow Rate of Hydraulic Oil System

L/min

25

Hydraulic System Rated Pressure

Mpa

21

Installation Space

mm

850

Working Parameter

The Basic Boom Length

m

3.38-11.0

Max. Lifting Torque

T.m

6.8

Max. Slewing Speed

r/ min

2.5
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
Product Process

Famous Brand Hydraulic Parts for our Truck Crane

3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom

Prodution Progress

3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom

Packing & Shipping

3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom

Client Visit

3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom

3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom

Certifications

3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom

Optional Device

3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom

Foreign Cases

3.2 Ton Truck Mounted Crane With 4.6m Span And Hydraulic Straight Boom
