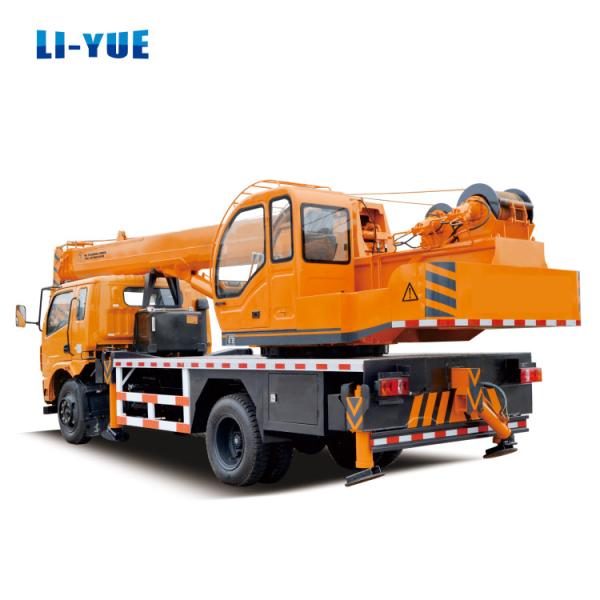

Customized Mobile Truck Crane Small Telescopic Boom Crane For Construction Lifting

Specifications

Place of Origin :

Henan, China

Brand Name :

LIYUE

Packaging Details :

Nude packing

Supply Ability :

3000 Unit/Units per Year

Price :

$13,900.00/units 1-2 units

Feature :

TRUCK CRANE

Showroom Location :

Indonesia

Condition :

New

Application :

Construction

Rated Loading Capacity :

6 TON

Rated Lifting Moment :

180 KN.M

Max. Lifting Height :

26 m

Span :

3650/2190-4290 mm

Warranty :

1 Year

Hydraulic Cylinder Brand :

MOOG

Hydraulic Pump Brand :

Changjiang

Hydraulic Valve Brand :

Liyuan

Engine Brand :

YUNNEI

UNIQUE SELLING POINT :

High operating efficiency

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Marketing Type :

Ordinary Product

Warranty of core components :

3 months

Core Components :

Pressure vessel, Motor, Pump, Gearbox, Engine

Weight (KG) :

8280 kg

Product name :

Truck Crane

Crane type :

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic parts :

Famous Brand Hydraulic Parts

Capacity :

1-6 Ton Truck Crane

Boom type :

Hydraulic Straight Arm

Color :

Customer Requirements

Usage :

Construction Lifting

Rotation Angle :

360 Degree

Keyword :

Crane Truck Mobile Truck Crane Sizes

High quality :

Mobile Crane Lifting Capacity

Description

Customized Mobile Truck Crane Small Telescopic Boom Crane For Construction Lifting

Product Description

Project		Unit	Value
Crane Dimension	Model	-	QY 6-5-24
	Dimensions (LWH)	mm	895021903000
	Outrigger Longitudinal/ Horizontal Span	mm	3650/ 2190-4290
	Outriggers Quantity	piece	5
	Basic Boom Lifting Length	m	7.35-25.35
	Main Boom Elevation	º	3-80
Working Parameter	Boom Quantity	Section	5
	Hydraulic Tank Capacity	L	140
	Max. Total Lifting Capacity	KG	6000
	The Basic Boom Lifting Torque (Max.)	KN.m	180
	Max. Lifting Height	m	24
	Working Radius	m	3--16
	Max. Slewing Speed	r/ min	≤3
Dongfeng Chassis Parameter	Total Mass	kg	8280
	Front And Rear Axle Load	kg	2680/ 5600
	Drive Type	-	4*2 Left/ Right Hand Drive
	Emission Standard	-	Euro 3
	Tyre Size	-	7.50-16LT
	Front/ Rear Track	mm	1690/ 1650
	Engine Power	HP	102
	Wheel Base	mm	3360
Travelling Parameter	Max. Travel Speed	Km/ h	75
	Max. Gradeability	%	30
	Min. Turning Diameter	m	14
	Approach Angle/ Departure Angle	º	20/ 12
	Fuel Consumption of 100km	L	16
	Min. Ground Clearance	mm	260

Product Process

Famous Brand Hydraulic Parts for our Truck Crane
