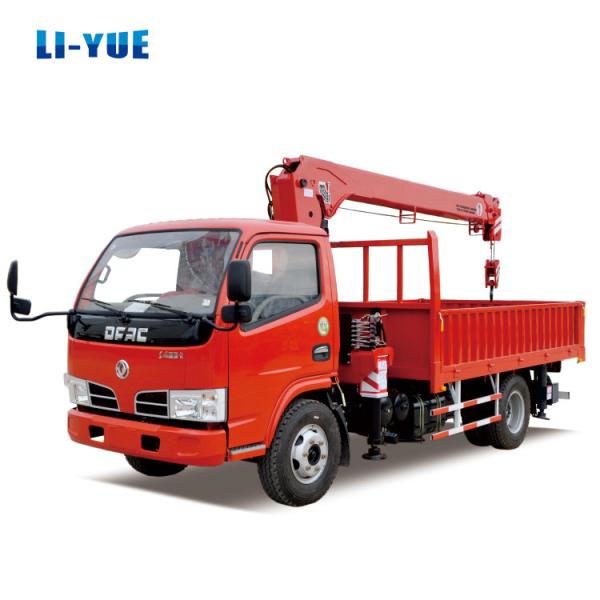

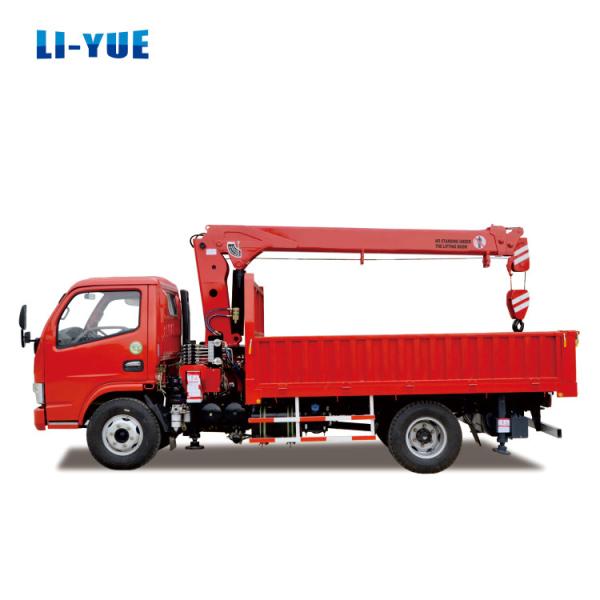

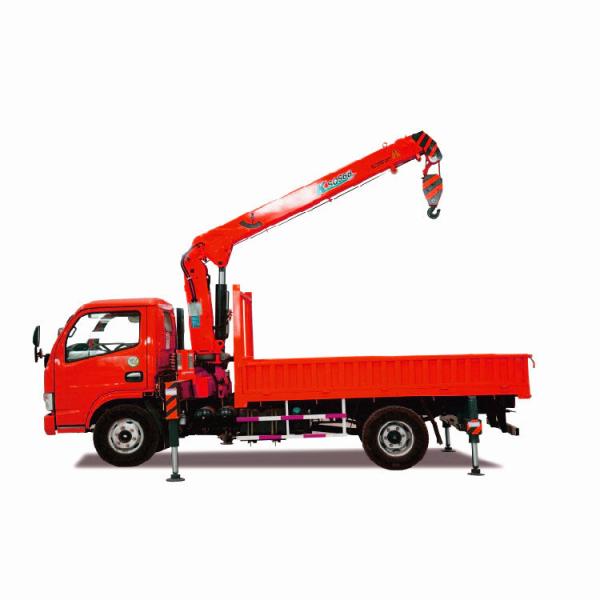

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Specifications
Feature :
TRUCK CRANE
Showroom Location :
Indonesia
Condition :
New
Application :
Construction
Rated Loading Capacity :
3 Ton
Rated Lifting Moment :
6.8 T.M
Max. Lifting Height :
9 m
Span :
1898-3329 mm
Place of Origin :
Henan, China
Brand Name :
LIYUE
Warranty :
1 Year
Hydraulic Cylinder Brand :
MOOG
Hydraulic Pump Brand :
Changjiang
Hydraulic Valve Brand :
Liyuan
Engine Brand :
YUNNEI
UNIQUE SELLING POINT :
High operating efficiency
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Bearing, Engine
Weight (KG) :
1290 kg
Product name :
Truck Mounted Crane
Crane type :
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic parts :
Famous Brand Hydraulic Parts
Capacity :
1-3 Ton Truck Crane
Boom type :
Hydraulic Straight Arm
Color :
Customer Requirements
Usage :
Construction Lifting
Rotation Angle :
360 Degree
Installation space :
850 mm
High quality :
Mobile Crane Lifting Capacity
Packaging Details :
Nude packing
Supply Ability :
3000 Unit/Units per Year
Price :
$7,000.00/units 1-4 units
Description

Crane Manufacturer Construction Machinery SQ3S3 3 Ton Telescopic Truck Mounted Crane

Product Description
NOTE: The price is only for crane part.
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine

Project

Unit

Value

Crane Dimension

Crane Model

-

SQ 3.2T

Max. Lifting Capacity

kg

3200

Max. Lifting Height

m

9

Working Radius/ Span

m

0.67-10

Rotation Angle

º

360 Continious

Boom Raising Angle Scope

º

0-75

Boom Sections

Piece

3

Outrigger Quantity

Piece

2

Outrigger Span (Fully Extended)

mm

1898-3329

Crane Weight

kg

1290

Hydraulic Tank Capacity

L

35

Max. Flow Rate of Hydraulic Oil System

L/min

25

Hydraulic System Rated Pressure

Mpa

21

Installation Space

mm

850

Working Parameter

The Basic Boom Length

m

3.38-11.0

Max. Lifting Torque

T.m

6.8

Max. Slewing Speed

r/ min

2.5
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
Product Process

Famous Brand Hydraulic Parts for our Truck Crane

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine

Prodution Progress

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine

Packing & Shipping

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine

Client Visit

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine

Certifications

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine

Optional Device

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine

Foreign Cases

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine

Clients Quality Approval

Design Mini 3 ton Telescopic Boom Crane Mobile Truck Mounted Crane with YUNNEI Engine
