China Construction High Performance 16 Tons Telescopic Arm Mobile Truck Crane

Specifications

Brand Name :

LIYUE

Place of Origin :

Henan, China

Price :

$48,500.00/units 1-4 units

Feature :

TRUCK CRANE

Showroom Location :

Indonesia

Condition :

New

Application :

Construction

Rated Loading Capacity :

16 TON

Rated Lifting Moment :

480 KN.M

Max. Lifting Height :

30m

Span :

6.6m

Warranty :

1 Year

Hydraulic Cylinder Brand :

MOOG

Hydraulic Pump Brand :

Changjiang

Hydraulic Valve Brand :

Liyuan

Engine Brand :

YUNNEI

UNIQUE SELLING POINT :

High operating efficiency

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Marketing Type :

Ordinary Product

Warranty of core components :

3 months

Core Components :

Pressure vessel, Motor, Pump, Gearbox, Engine

Weight (KG) :

15800 kg

Product name :

Truck Mounted Crane

Crane type :

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic parts :

Famous Brand Hydraulic Parts

Capacity :

1-16 Ton Truck Crane

Boom type :

Hydraulic Straight Arm

Color :

Customer Requirements

Usage :

Construction Lifting

Rotation Angle :

360 Degree

Keyword :

Crane Truck Mobile Truck Crane Sizes

High quality :

Mobile Crane Lifting Capacity

Description

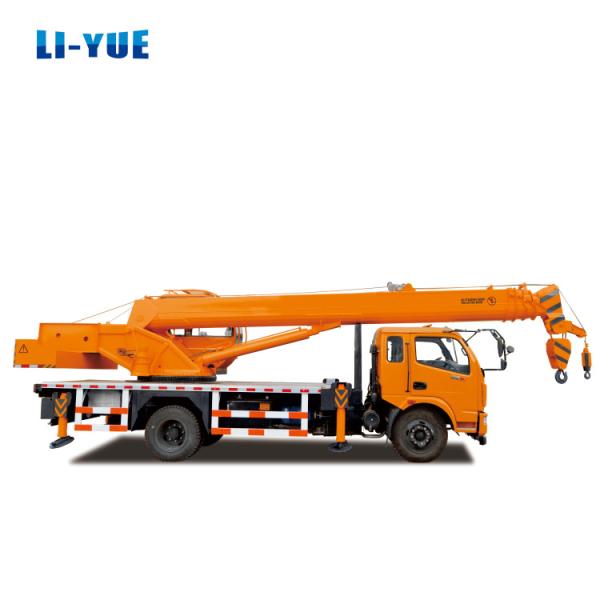

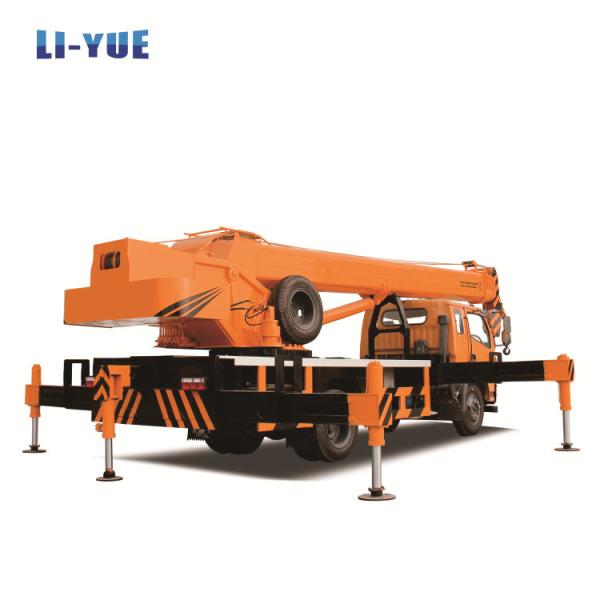

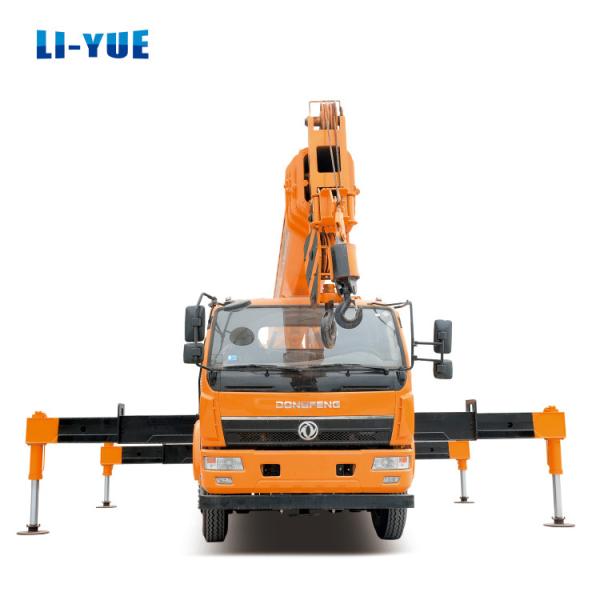

16 Ton Truck Crane With 360 Degree Rotation Angle And Hydraulic Arm On Dongfeng Chassis

Product Description

Project		Unit	Value
Crane Dimension	Model	-	QY 16-5-34
	Dimensions (LWH)	mm	1126023303260
	Outrigger Longitudinal/ Horizontal Span	mm	4800/ 2290-6290
	Outriggers Quantity	piece	5
	Basic Boom Lifting Length	m	9.1-30.28
	Main Boom Elevation	º	3-80
Working Parameter	Boom Quantity	Section	5
	Hydraulic Tank Capacity	L	200
	Max. Total Lifting Capacity	KG	16000
	The Basic Boom Lifting Torque (Max.)	KN.m	480
	Max. Lifting Height	m	34
	Working Radius	m	3--22
	Max. Slewing Speed	r/ min	≤3
Dongfeng Chassis Parameter	Total Mass	kg	15800
	Front And Rear Axle Load	kg	4800/ 11000
	Drive Type	-	4*2 RHD/ LHD
	Emission Standard	-	Euro 3/ Euro 5
	Tyre Size	-	7.50-16LT
	Front/ Rear Track	mm	1640/ 1650
	Engine Power	HP	130
	Wheel Base	mm	4300
Travelling Parameter	Max. Travel Speed	Km/ h	75
	Max. Gradeability	%	17
	Min. Turning Diameter	m	18
	Approach Angle/ Departure Angle	º	21/ 16
	Fuel Consumption of 100km	L	28
	Min. Ground Clearance	mm	260

Product Process

Famous Brand Hydraulic Parts for our Truck Crane
