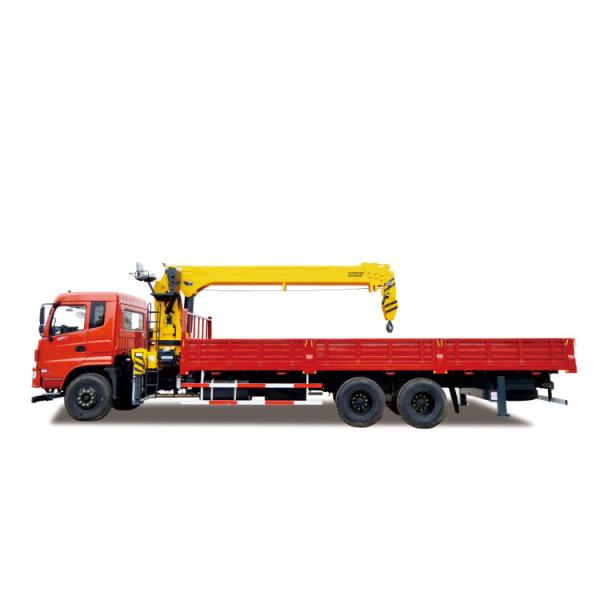

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
Specifications
Brand Name :
LIYUE
Place of Origin :
Henan, China
MOQ :
1 unit
Price :
$14,500.00/units 1-2 units
Supply Ability :
3000 Unit/Units per Year
Packaging Details :
Nude packing
Feature :
TRUCK CRANE
Showroom Location :
Indonesia
Condition :
New
Application :
Construction
Rated Loading Capacity :
8 ton
Rated Lifting Moment :
4.85-13 T.M
Max. Lifting Height :
15.2 m
Span :
2280-5580 mm
Warranty :
1 Year
Hydraulic Cylinder Brand :
MOOG
Hydraulic Pump Brand :
Changjiang
Hydraulic Valve Brand :
Liyuan
Engine Brand :
YUNNEI
UNIQUE SELLING POINT :
High operating efficiency
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Bearing, Pump
Weight (KG) :
3315 kg
Product name :
Truck Mounted Crane
Crane type :
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic parts :
Famous Brand Hydraulic Parts
Capacity :
8 Ton Truck Crane
Boom type :
Hydraulic Straight Arm
Color :
Customer Requirements
Usage :
Construction Lifting
Rotation Angle :
360 Degree
Installation space :
1200 mm
High quality :
Mobile Crane Lifting Capacity
Port :
Qingdao/ Tianjin/ Lianyungang
Description

Hydraulic Straight Arm Electric 8 Ton Small Truck Mounted Crane With high Performance

Product Description
NOTE: The price is only for crane part.
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
Product Description
Project Unit Value
Crane Dimension Crane Model － SQ 8
Max. Lifting Capacity kg 8,000
Max. Lifting Height m 18
Working Radius/ Span m 2.5-16.9
Rotation Angle º 360
Boom Raising Angle Scope º 0-75
Boom Sections Piece 5
Outrigger Quantity Piece 2
Outrigger Span (Fully Extended) mm 2280-5400
Crane Weight kg 3315
Hydraulic Tank Capacity L 140
Max. Flow Rate of Hydraulic Oil System L/min 50
Hydraulic System Rated Pressure Mpa 27
Installation Space mm 1200
Working Parameter The Basic Boom Length m 4.5-16.9
Max. Lifting Torque T.m 20
Max. Slewing Speed r/ min 2
Product Process

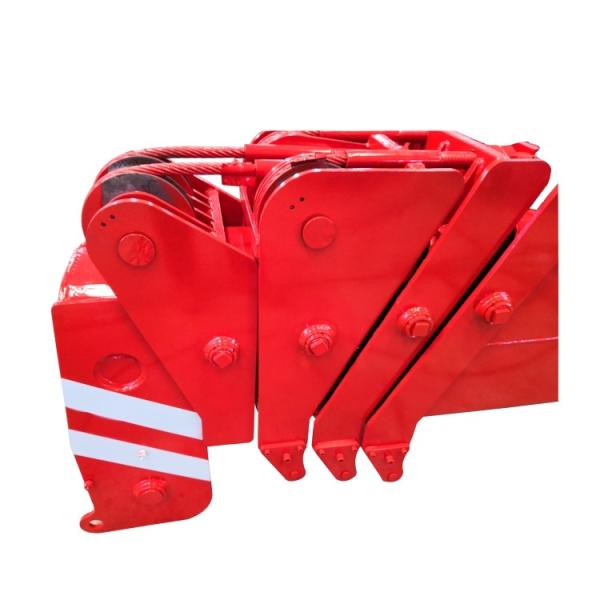

Famous Brand Hydraulic Parts for our Truck Crane

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane

Prodution Progress

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane

Packing & Shipping

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane

Client Visit

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane

Company Information

Henan Liyue Machinery equipment Co., Ltd., located in Lankao County, Henan Province, is located in the middle of the Future Avenue of Industrial agglomeration area, is a trading and manufacturing combo.Established in 1980, our company covers an area of more than 66000 square meters and currently employs 320 people, including 30 professional and technical personnel, 15 senior technicians and 6 senior engineers. We have a large-scale cutting machine, bending machine, CNC cutting machine, copying cutting machine, plate rolling machine, square tube sewing machine, moving beam gantry milling machine, shot blasting machine and numerical control lathe and other equipments. Our company has launched 3T-25T truck cranes, truck mounted cranes and marine crane to fill the domestic blank market, and exported to more than 20 countries and regions such as South Africa and Angola market.We exported to more than a dozen countries and regions such as Thailand, Turkmenistan, Kazakhstan, Vietnam, Bhutan and so on. As the manufacturer, we accept OEM/ ODM orders.
