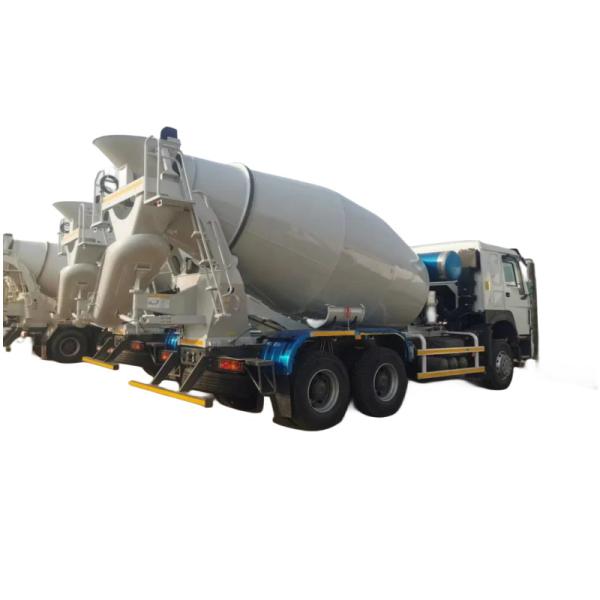

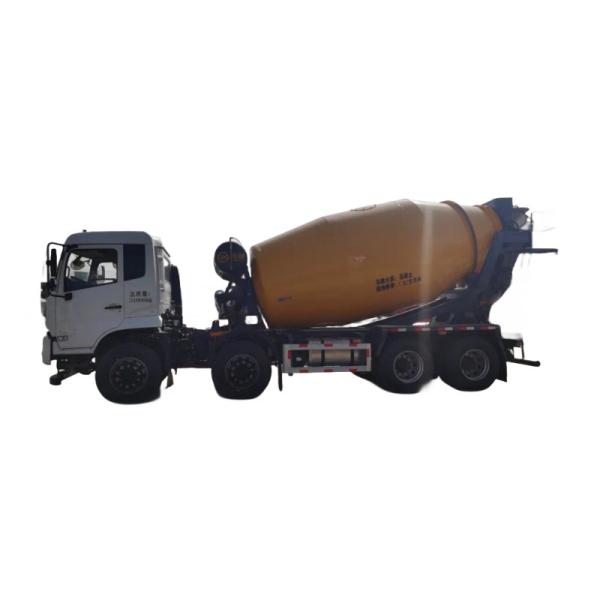

Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Specifications
Brand Name :
SINOTRUK
Model Number :
DFL1310AX13A
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full payment 15-20 work days
Packaging Details :
Naked, frame, container
GVW :
31000 kg
Curb weight :
13800 kg
Wheelbase :
1850+4800+1350 mm
Engine :
L375-30
Wheel & Types :
12.00-20/12.00R20
Overall size :
10250×2550×3995mm
Description

Portable Cement Mixer Truemax Concrete Machinery 12cbm Mobile Cement


Product Parameter

Vehicle Description
Overall dimension 10250×2550×3995
GVW 31000 kg
Curb weight 13800 kg
Chassis brand DONGFENG
Traction type 8*4, left hand drive
Chassis Description
Model DFL1310AX13A
Cab Sleeper cab, forward control type, low roof, new face, all welded steel cab, electrical cab tilting, front and rear mechanical cab suspension, adjustable
Driver's seat, air conditioning system, electrical windows, central lock.
Wheelbase 1850+4800+1350 mm
Tire specification 12.00-20/12.00R20
Tire quantity 12+1 units
Engine Engine model L375-30
Emission standard Euro 2
Exhaust/output 8900ml/276kw
Horse power 375hp
Gear box Model 12JSD180T DD
Type 12 forward gears& 2 reverse, synchronized
Brake system Full air brake system, split pneumatic circuit; parking spring brake acting on
rear axles; exhaust brake.
Axle Front 7T-Elliot type, I beam section
Rear Single reduction, tandem axle, with axle lock, ratio
5.143.13T-Hub reduction, tandem axle, with axle
lock and wheel lock, ratio 5.26
Suspension Front 9- Leaf spring with shock absorber
Rear 13-Leaf spring
Battery Voltage 12V*2
Capacity 165A.h*2
Fuel tanker Type Aluminum fuel tank with lockable cap
Capacity 350 L
Up-part describtion
Drum Drum mixing volume 14-16 cbm
Fling rate 65%
Residual ratio <4%
Material Carbon steel or alloy steel
Reducer PMP/Eaton(USA)
Hydraulic pump PMP/Eaton(USA)
Hydraulic motor PMP/Eaton(USA)
Radiator Chinese top brand Water supply
Water supply Water tank volume 300 L
Water supply type Air presure

Detailed Photos
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
Portable Concrete Mixer Truck Truemax Concrete Machinery 12cbm Mobile Cement
