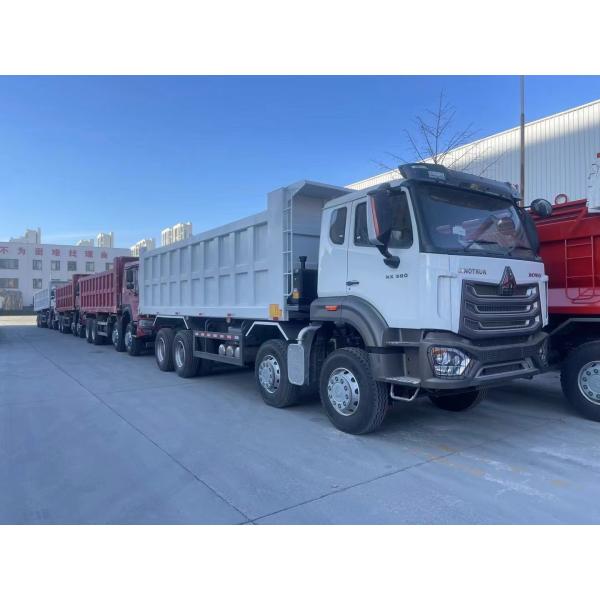

SINOTRUK HOWO 12 Wheels 8*4 Dump Truck With 371 HP EuroII
SINOTRUK HOWO 12 Wheels 8*4 Dump Truck With 371 HP EuroII
SINOTRUK HOWO 12 Wheels 8*4 Dump Truck With 371 HP EuroII
SINOTRUK HOWO 12 Wheels 8*4 Dump Truck With 371 HP EuroII
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ4257S3241W
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
negotiation
Payment Terms :
L/C, T/T, D/A, Western Union
Supply Ability :
1000Unit/Month
Delivery Time :
Full payment 15-20 work days
Packaging Details :
Naked, frame, container
Traction :
8x4
Wheelbase :
3225/3825+1350mm
Ground Clearance :
340mm
Engine :
WD615.47
Maximum Torque :
1460Nm at 1300-1600rpm
Transmission Type :
Manual
Description

SINOTRUK HOWO 12 Wheels 8*4 Dump Truck With 371 HP EuroII

Product Parameter

SINOTRUK HOWO 8*4 Dump Truck with 371 HP
Vehicle Specication Model ZZ4257S3241W
Traction(4x2,6x4,8x4) 8x4
Power(HP) 371
Weight Parameter Complete Vehicle Kerb Mass(kg) 9180
Maximum authorized total Mass(kg) 25000
Permissible loading capacity(kg) 35000
Dimension Parameter External
Dimensions(mm)		 Overall Length 8545
Width 2500
Height 3170/3450
Wheelbase(mm) 3225/3825+1350
Ground Clearance(mm) 340
Front/Rear overhang(mm) 1500/1470,1670,1870
Performance Parameter Maximum Speed(km/h) 79/83
Fuel consumption(L/100km) 40
Maximum Gradeability(%) 20
Turning diameter(m) 15/16/17
Recommended Configuration Engine Made CNHTC
Engine model WD615.47EuroII emission standard,Thermostat with 80ºC,Opening begin, Rigid fan
Rated Power 371hp(273Kw)at 2200rpm
Maximum Torque 1460Nm at 1300-1600rpm
Displacement(L) 9.726
Fuel tank(L) 400
Transmission HW15710, 10 forward & 2 reverse
Transmission Type Manual
Clutch(mm) 430
Front Axle HF7, rated load of 7t
Rear Axle ST16 Double Reduction Drive Axle (central reduction+wheel reduction),speed ratio:3.93, 4.42
Steering German ZF8098 Steering Gear Box, hydraulic steering with power assistance, Ratio: 22.2-26.2
Brakes Dual circuit compressed air brake
Tyres 12.00R20,10pcs
Electrical Battery 2X12V/165Ah
Alternator 3-phase, 28V, 1500 W
Starter 7.5Kw/24V
Cab HOWO76 Standard cab, all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

Product pohots

SINOTRUK HOWO 12 Wheels 8*4 Dump Truck With 371 HP EuroII
