Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa
Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa
Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa
Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa
Specifications
Brand Name :
DONGFENG
Model Number :
DFH3440A80
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full payment 15-20 work days
Packaging Details :
Naked, frame, container
GVW :
44000kg
Engine :
CUMMINS ISL380 50
Power :
380HP
Emission Standard :
Euro 5
Transmission :
12JS180T
Overall dimension :
9065*2500*3690mm
Description

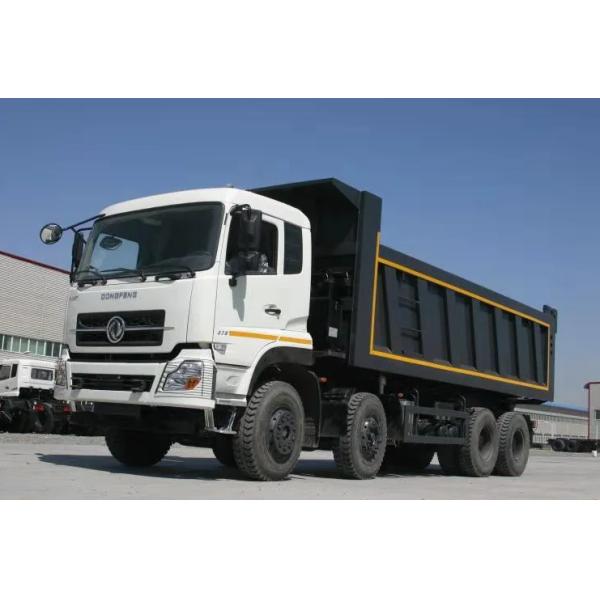

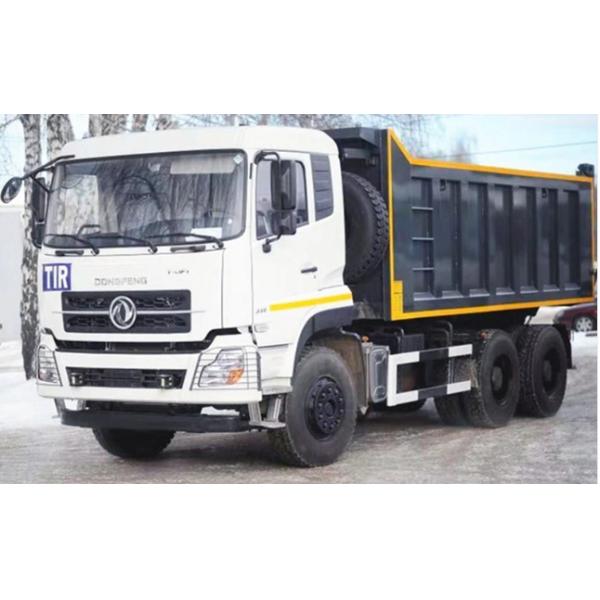

Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa

OTTC OTTS Report Chinese Brand DONGFENG 35Ton Heavy Duty 8X4 Tipper Dumper Dump truck for Russia and Kazakhstan

Dump truck also called tipper, dumper truck which composed of chassis, hydraulic system, cargo body, PTO and so on. The hydraulic system could be HYVA or Chinese top, the material could be carbon steel or high-strengthen steel; the lifting type could be middle lifting or front lifting.

Dump is divided into 2 types which is rear tipper and side tipper. Rear tipper is more common which mainly used for transporting sand, stone, gravel, coal, earthwork and other construction materials.

Product Parameter

Vehicle description
OTTC OTTS Report Chinese Brand DONGFENG 35Ton Heavy Duty 8X4 Tipper Dumper Dump truck for Russia and Kazakhstan
Overall dimension 9065*2500*3690mm
GVW 44000kg
Curb weight 16300kg
Chassis brand DONGFENG
Traction type 8*4, left hand drive
Chassis description
Chassis model DFH3440A80
Cab DF with flat roof, AC
Wheelbase 1850+3400+1350mm
Tire specification 12.00R20
Tire quantity 10+1 units
Engine Engine model CUMMINS ISL380 50
Emission level Euro 5
Displacement/output 8900ml/280kw
Horse power 380hp
Gear box Model 12JS180T
Number of gears 12 forward gears& 2 reverse
Brake system Type Drum
Service brake Dual-circuit compressed air brake
Park brake Power spring brake acting on rear wheel
Auxiliary brake Exhaust brake
Axle Front 7T *2
Rear 13T*2
Suspension Front Leaf spring
Rear Leaf spring
Fuel tanker Type Steel fuel tank, with lockable cap
Capacity 400L
Up-parts description
Cargo dimension 7200*2300*1600mm
Loading capacity 35-40T
Material Carbon steel
Thickness Side 6mm,8mm for optional
Bottom 8mm,10mm for optional
Hydraulic system Chinese brand or imported brand
Lifting style Front lifting


Detailed Photos

Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa

Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa
Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa

Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa

Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa

Heavy Duty 40ton Mining Truck 30ton Mining Dump Truck For Sale In Africa
