Specifications
Brand Name :
FOTON
Model Number :
BJ1128VGJFD-AC1
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full Payment 15-30 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Engine :
ISF3.8s3141
Drive Type :
4×2
Curb weight :
3300kg
Emission standard :
Euro Ⅱ
Gearbox :
8JS75TC
Front Axle :
3.6T
Rear Axle :
7.2T
Speed Axle :
5.268
Fuel form :
Diesel
Description

Foton Forland 4X2 3-5 Ton Small Light Cargo Lorry Truck Urban Transportation

Product Advantages

Foton has a global high-standard diesel engine production base, has conducted in-depth cooperation with internationally renowned companies, won the trust of many engineering companies around the world, and developed into a long-term partner. Foton Motor became the first commercial vehicle company in China and the second in the world with a sales volume exceeding 10 million units.

On the basis of satisfying the stylish appearance and the comfort of a car, it is matched with Foton Cummins and Okon Power to meet the needs of work and family cars.

  • Commercial version: Equipped with the original power of Foton Cummins, strengthen the power output, meet the needs of field work, and adapt to the needs of various working conditions such as freight operations, engineering services, mining vehicles, and rural operations.
  • Passenger version: matching Okang power, on the basis of meeting the power demand, fully enjoy the comfortable life enjoyment brought by entertainment, safety and quiet power.

Product Parameters

Vehicle model BJ1128VGJFD-AC1
Cabin Left hand-single row
Whole vehicle main dimensions Dimensions (L×W×H)mm Chassis:6885×2300×2425
Flat:6955×2300×2425
Driving type 4×2
Wheel base(mm) 3800
Wheel track (front/rear)mm 1705/1795
Weight data Chassis weight (kg) 3300
Persons in cab (persons) 3
Gross vehicle weight(kg) 12000
Whole vehicle main performance Max. speed(km/h) 110
Engine Model F3.8s3141
Fuel form
Diesel
Emission Euro2
Displacement(L) 3.76
Rated Powe[kw/HP] 105
Max torque [N•m(r/min)] 450
Gearbox Model 8JS75TC
Clutch Type φ350mm diaphragm spring clutch
Front axle Type 3.6T
Rear axle Type/Main reducetion ratio 7.2T/5.286
Suspension Front suspension/Leaf spring number Non-independent suspension longitudinal leaf spring/9
Rear suspension/Leaf spring number Non-independent suspension longitudinal leaf spring /8+6
Steering gear Model Recirculating ball steerer
braking system Service brake Drum brake
Parking brake Cut-off brakes
Auxiliary brake Exhaust brake
Wheels and tyre size 8.25R20
Fuel tank (L) 200L
Basic equipment Manual windows and mirrors,MP3,ABS,EBD/EBL
Optional configuration Manual air conditioner, flat cargo box
Five-door flat plate (pattern bottom plate + corrugated edge plate),5140×2300×550

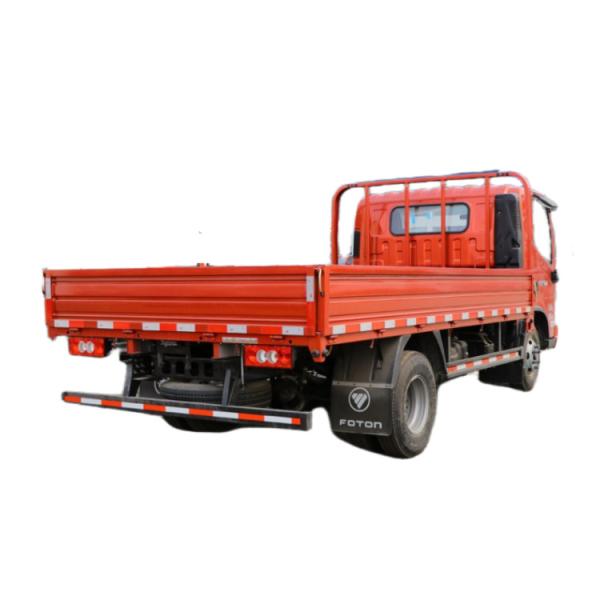

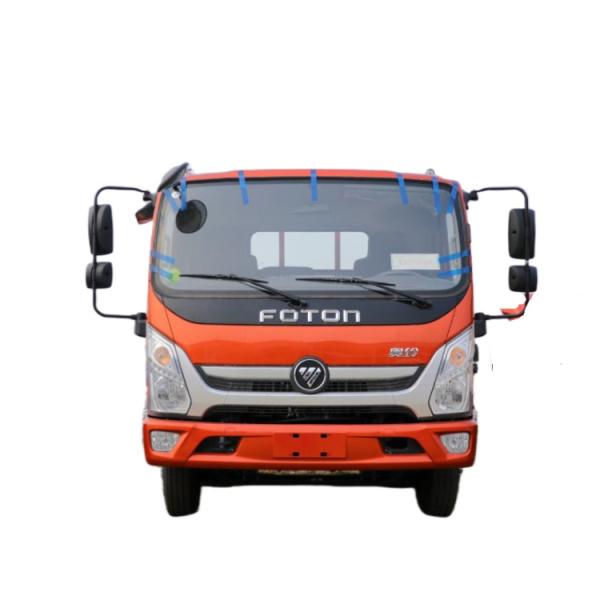

Photo Shows

Foton Forland 4X2 3-5 Ton Small Light Cargo Lorry Truck Urban Transportation

Foton Forland 4X2 3-5 Ton Small Light Cargo Lorry Truck Urban Transportation

Foton Forland 4X2 3-5 Ton Small Light Cargo Lorry Truck Urban Transportation

Foton Forland 4X2 3-5 Ton Small Light Cargo Lorry Truck Urban Transportation

Foton Forland 4X2 3-5 Ton Small Light Cargo Lorry Truck Urban Transportation

Foton Forland 4X2 3-5 Ton Small Light Cargo Lorry Truck Urban Transportation
