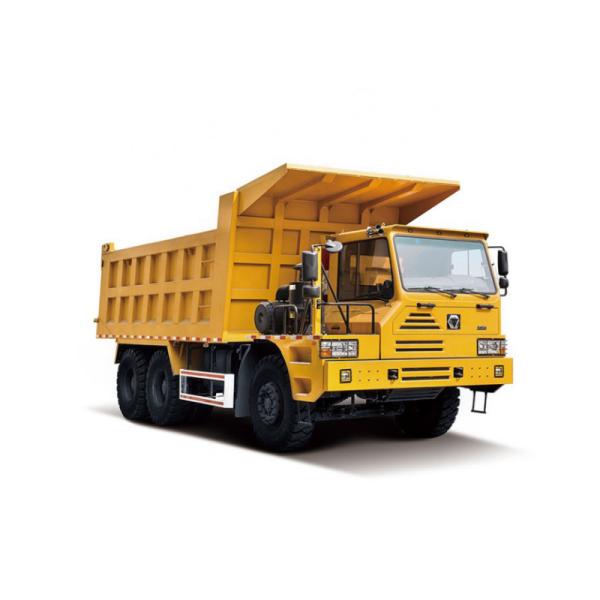

XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
Specifications
Brand Name :
XCMG
Model Number :
NXG5550DT
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
Full Payment 15-30 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Operating voltage :
24V
Alternator :
70A/28V
Batteries :
6-QAW-180DMF
Max. travel speed :
65km/h
GVW :
47000kg
Min. turning Radius :
18.8m
Description

XCMG Diesel Off-road Mining Dump Truck NXG5550DT Mining Dump Truck Price

Product Features of Mining Tipper Truck

* According to each of the engine torque characteristic curve, perfectly match the different types of Fast manual gearbox, Allision automatic gearbox, to protect the most energy rationalization output, the vehicle has an excellent starting ability, climbing ability.

* Optimized arrangement of the traditional system architecture, reducing the loss of energy transfer process to ensure the kinetic energy efficient, rapid transmission.

* Using the unique steering and steering follower, the steering mechanism. Steering light, the failure rate lower.

* Dual-circuit brake system equipped with high pressure geography accumulator volume increases, the brake pressure increasing 25% to 1 Mpa, shorten braking distance.

Product Parameters

Dimensions(mm) Overall size (length×width×height) 8860*3275*3740
Cargo body size (length×width×height) 5800*2400*1650
Cargo thickness Bottom 16mm, sideboard 12mm
Wheelbase 4000+1400
Weight(kg) Kerb mass 17000
Rated loading capacity 30000
Gross vehicle weight 47000
Performance Max. travel speed 65km/h
Min. turning Radius 18.8m
Max. gradeability 33%
Electric System Operating voltage 24V
Alternator 70A/28V
Batteries 6-QAW-180DMF

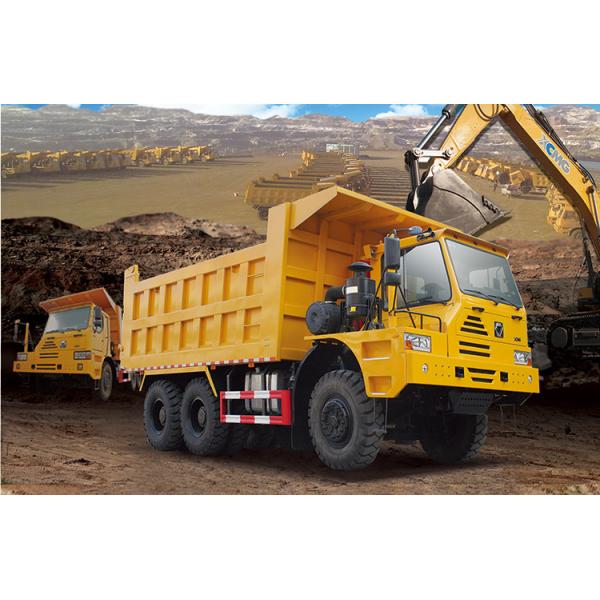

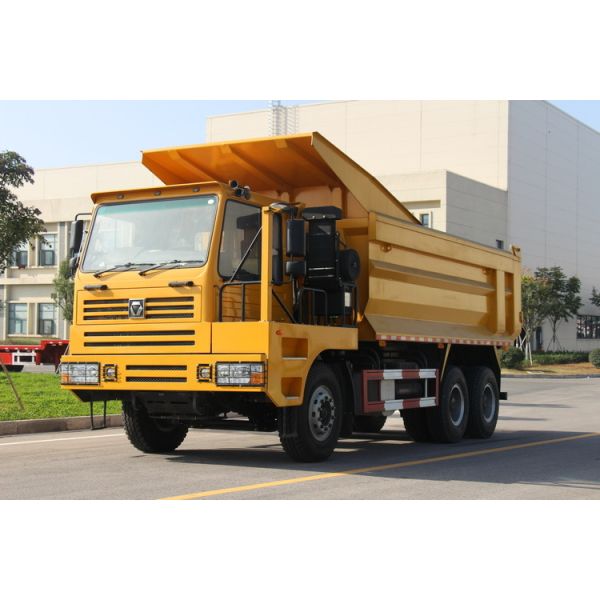

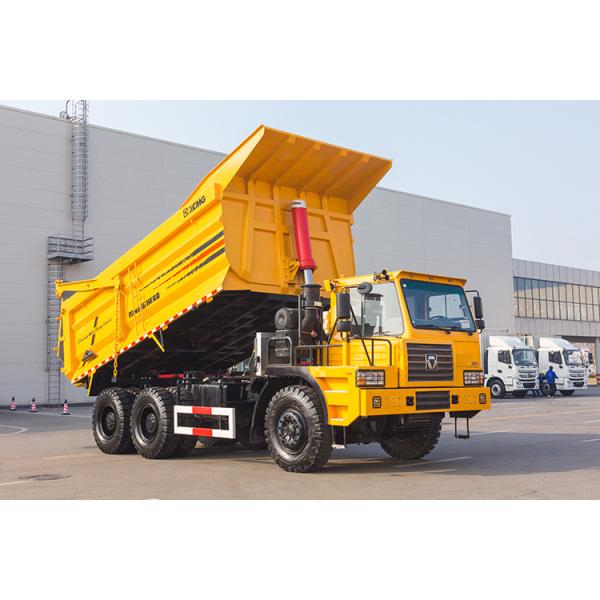

Photo Show

XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck

XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck

XCMG Diesel Off Road Mining Dump Truck NXG5550DT Mining Dump Truck
