Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume
Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume
Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume
Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume
Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume
Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume
Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume
Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume
Specifications
Brand Name :
XCMG
Model Number :
G10K
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full Payment 7-15 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Chassis model :
NXG3250D5NCX
Geometric volume :
16.8m³
Max. diameter of drum :
2280mm
Drum length :
5596mm
Volume of water tank :
450L
Wheelbase :
3800+1350mm
Description

XCMG 4 Cbm Small Concrete Mixer Truck G04K Concrete Truck Mixer For Sale

1,On the basis of in-depth and integrative research on the industry, the XCMG new generation truck mixers are system optimized by taking the integrated modularization design to truly realize the integrated innovation.

2,Particular mixing technology with continuous trace, original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.

3,Twin-output control, lightweight technology and anti-scattering technology make the vehicle more environmental and more effective.

Product Parameter

Description Unit Parameter value
Performance of mixing drum Geometric volume m³ 16.8
Max. diameter of drum mm 2280
Drum length mm 5596
Mounting tilt angle ° 13.5
Rotary speed r/min 0~14
Charging speed m³/min ≥3
Discharging speed m³/min ≥2
Residual ratio of discharging % <0.7
Range of slump ㎝ 5~21
Hydraulic system Oil pump World-famous brand
Motor World-famous brand
Speed reducer World-famous brand
Hydraulic circuit Closed type
Water supply Volume of water tank L 450
Way of water supply Air pressure
Overall machine Chassis brand XCMG
Chassis model NXG3250D5NCX
Steering wheel Left steering wheel
Curb mass ㎏ 14600
Driving type 6×4
Wheelbase mm 3800+1350
PTO way Flywheel PTO
Outline dimension (L×W×H)mm 9510×2500×3970
Engine Model WP10.350E53
Rated power Kw/r/min 257
Displacement L 9.726
Emission standard Euro V

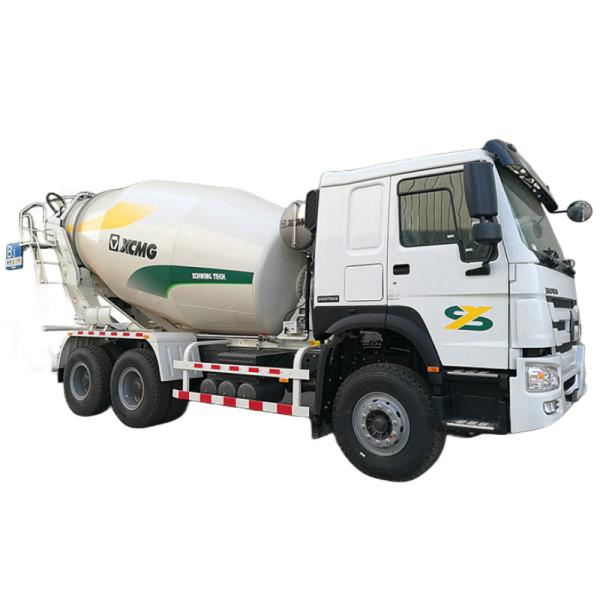

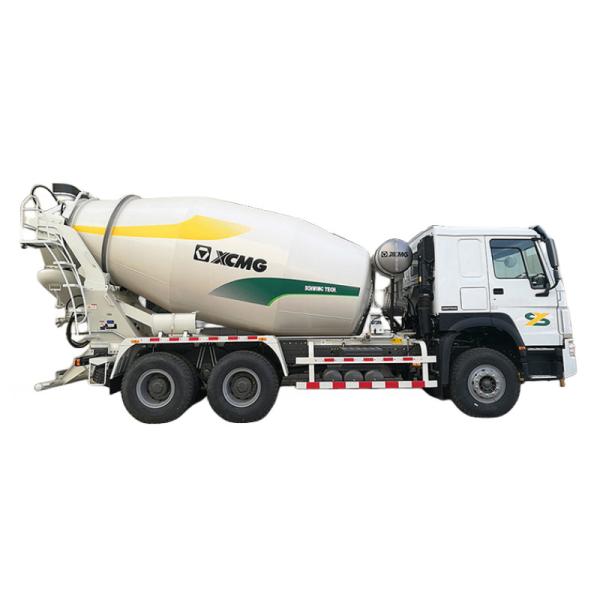

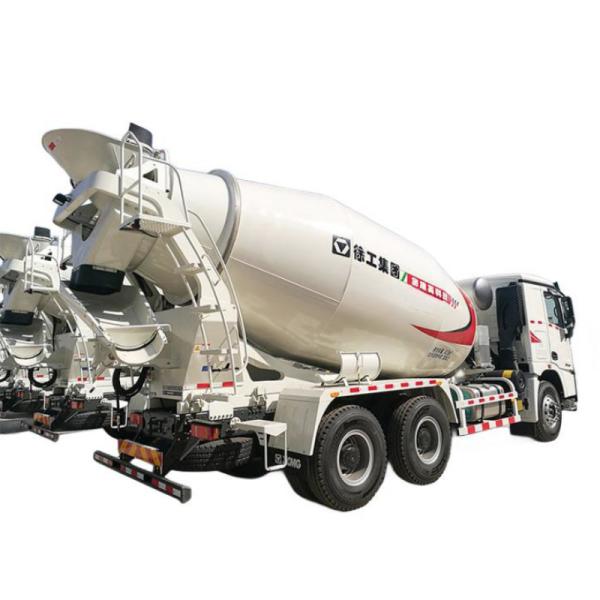

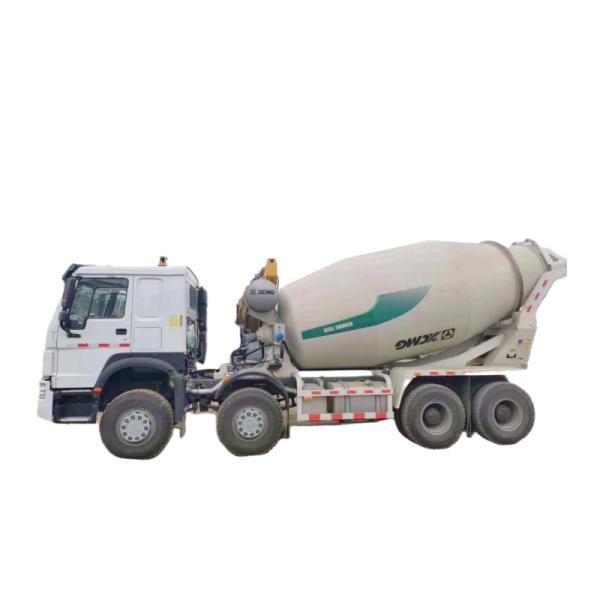

Product Photos

Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume

Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume

Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume

Sinotruk Howo 10m3 Concrete Mixer Truck G10K 450L Water Tank Volume
