Specifications
Brand Name :
FOTON
Model Number :
BJ1036V5JV5-A1
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full Payment 15-30 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Engine :
DAM15L
Transmission :
DAT18R
Tire :
Rear twin 6+1
Horsepower :
110hp
Wheel base :
2850mm
Gross vehicle weight :
2545kg
Max. speed :
110km/h
Displacement :
1.49L
Clutch :
φ200×φ130,Single piece dry diaphragm spring
Description

FOTON Lorry Truck 4×2 110hp 4 Tire Left Hand Gasoline Euro Ⅳ Single Cab Flatbed Mini Truck

Product Parameters

Vehicle model BJ1036V5JV5-A1
Cabin Left hand-single row-1620

Whole vehicle main dimensions
Overall dimensions (L×W×H)mm Chassis: 4680×1600×1855
Tablet: 4880×1650×1925
Van: 4945×1735×2420
Driving type 4×2
Wheel base(mm) 3070
Wheel track (front/rear)mm 1338/1375
Weight data Chassis weight (kg) Chassis 960/flat 1206/van 1320
Persons in cab Flatbed 1209/2; Van 1095/2
Gross vehicle weight(kg) Chassis 2550 / Flat 2545 / Van 2545
Whole vehicle main performance Max. speed(km/h) 115
Engine Model DAM15R
Fuel form Gasoline
Emission Standard Euro Ⅳ
Displacement(L) 1.498
Rated Powe[kw/HP] 82
Max torque [N•m(r/min)] 142
Gearbox Model T15R
Clutch Type φ188×φ130,Single piece dry diaphragm spring
Front axle Type 1.5T
Rear axle Type/Main reducetion ratio 2.5T/5.37
Suspension Front suspension/Leaf spring number McPherson independent suspension
Rear suspension/Leaf spring number Non-independent suspension longitudinal leaf spring / 5
Steering gear Rack and pinion type
Braking system Service brake Front disc and rear drum hydraulic brake
Parking brake Wheel side hand brake
Auxiliary brake Vacuum assisted
Wheels and tyre size 175R14
Fuel tank (L) 60L
Basic equipment No airbag/no power take-off/basic speed ratio of front disc and rear drum/no flip/no shroud/no assisted driving/no cargo box/no air conditioner/tubeless tires (metric) 175R14/manual doors and windows and rearview mirror /No driving recorder/Front stabilizer bar/Retractable machine/Load sensing proportional valve/Mechanical steering/Normal knitted seat
Optional configuration Manual air conditioner, shroud
cargo box Tablet 2800×1560×360
Van 2800×1560×1570

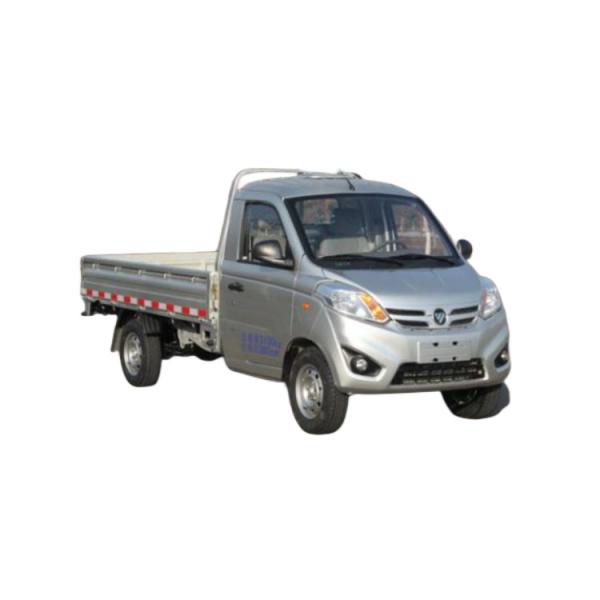

Photo Shows

FOTON Lorry Truck 4×2 110hp 4 tire Left Hand Gasoline Euro Ⅳ Single Cab Flatbed Mini Truck

FOTON Lorry Truck 4×2 110hp 4 tire Left Hand Gasoline Euro Ⅳ Single Cab Flatbed Mini Truck

FOTON Lorry Truck 4×2 110hp 4 tire Left Hand Gasoline Euro Ⅳ Single Cab Flatbed Mini Truck
