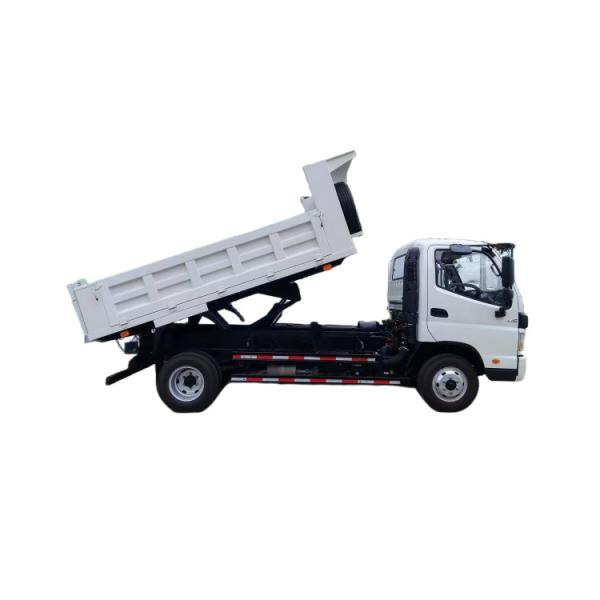

FOTON Aumark Light Dump Truck 4x2 190HP Light Duty Tipper Truck
FOTON Aumark Light Dump Truck 4x2 190HP Light Duty Tipper Truck
FOTON Aumark Light Dump Truck 4x2 190HP Light Duty Tipper Truck
FOTON Aumark Light Dump Truck 4x2 190HP Light Duty Tipper Truck
FOTON Aumark Light Dump Truck 4x2 190HP Light Duty Tipper Truck
FOTON Aumark Light Dump Truck 4x2 190HP Light Duty Tipper Truck
Specifications
Brand Name :
FOTON
Model Number :
CLW3043
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30000 Units Per Year
Delivery Time :
25 Work Day
Packaging Details :
Naked, Frame, Container
Engine(Hp) :
190
Wheelbase(mm) :
4200
Wheels & tire :
11.00-20/6+1
Curb weight (Kg) :
8200
Overall dimensions (LxWxH)mm :
7280×2420×3250
Rated load capacity (Kg) :
10000
Description

FOTON Aumark Light 4x2 190HP Dump Truck Light Duty Tipper Truck New

Performance Characteristics:

A dump truck, known also as a dumper truck, dump trailer, dumper trailer, dump lorry or dumper lorry or a dumper for short, is used for transporting materials (such as sand, gravel, or demolition waste) for construction as well as coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK, Australia, South Africa and India the term applies to off-road construction plants only and the road vehicle is known as a tip lorry, tipper lorry (UK, India), tipper truck, tip truck, tip trailer or tipper trailer or simply a tipper (Australia, New Zealand, South Africa).

Parameter:

Engine
Engine model and emission YC6J190-33/Euro-II
Engine type Vertical/in-line/four stroke/six cylinder/water cooling/supercharged intercooling
Rated power of engine (kw/ps) 140/2500
Engine displacement (L) 6.494
Gearbox
Gearbox type 10JS90
Rear axle/speed ratio 457ZG/5.833
Cabin type/width (mm) flat head/one and a half row/left hand driving/R2200
Drive form 4×2
Tire type/number 11.00-20/6+1
Brake Service brake type air braking(drum type)
Parking brake type spring energy(air cut type braking)
Steering device power steering
Weight parameter
Curb weight(kg) 8200
Rated load capacity (Kg) 10000
Performance parameter
Maximum speed(no load) (km/h) 85
Dimension parameters
Overall dimensions (LxWxH)mm 7280×2420×3250
Internal van dimensions (LxWxH)mm 4700×2300×1000×5MBCZ
Wheelbase (mm) 4200
Front/rear wheel track (mm) 1968/1864
Rated voltage (V) 24
Capacity of the fuel tank (L) 330
Standard configuration auxiliary brake,electrical controlled flameout,heater,
adjustable steering wheel,, spare tire

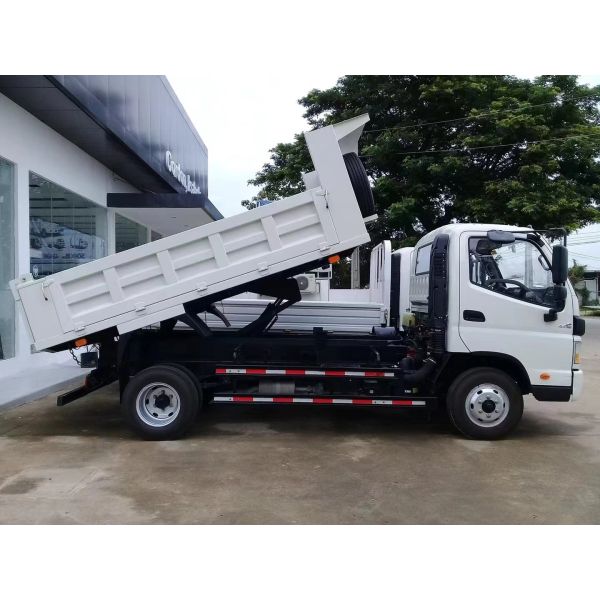

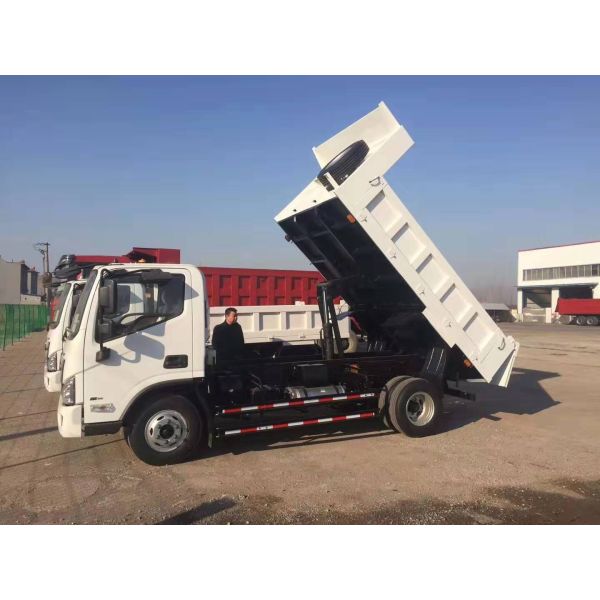

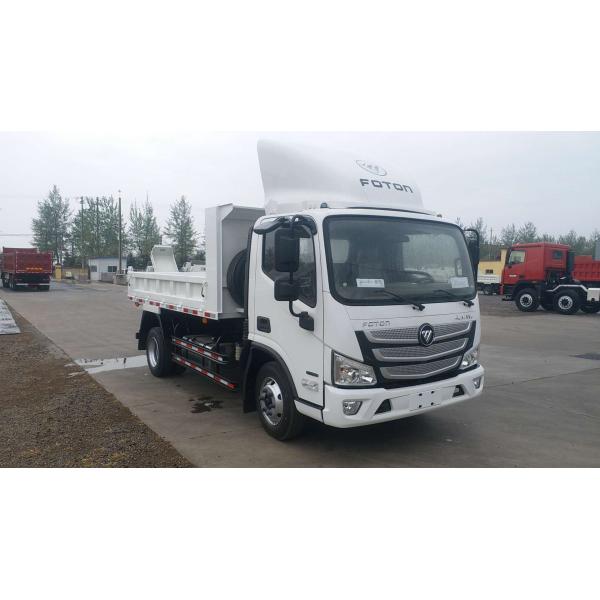

Product Show:

FOTON Aumark Light Dump Truck 4x2 190HP Light Duty Tipper Truck

FOTON Aumark Light Dump Truck 4x2 190HP Light Duty Tipper Truck

FOTON Aumark Light Dump Truck 4x2 190HP Light Duty Tipper Truck
