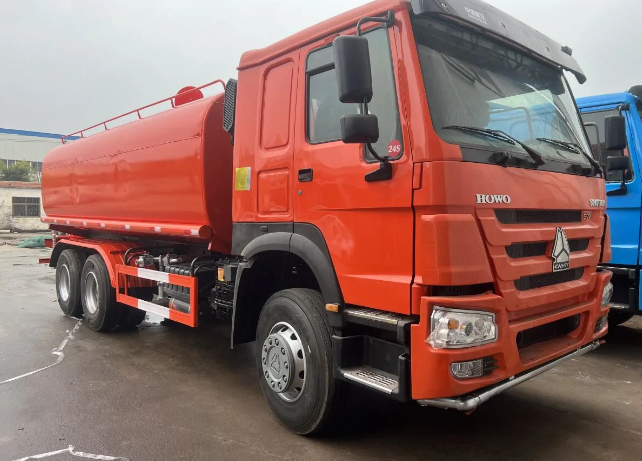

6X4 380HP 20000 Liters Water Tank Trucks SINOTRUK HOWO
6X4 380HP 20000 Liters Water Tank Trucks SINOTRUK HOWO
6X4 380HP 20000 Liters Water Tank Trucks SINOTRUK HOWO
6X4 380HP 20000 Liters Water Tank Trucks SINOTRUK HOWO
6X4 380HP 20000 Liters Water Tank Trucks SINOTRUK HOWO
6X4 380HP 20000 Liters Water Tank Trucks SINOTRUK HOWO
Specifications
Brand Name :
DONGFENG
Model Number :
DFH1250D4
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full Payment 7-15 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Fuel :
Diesel
Wheelbase :
5000mm
Engine :
ISDe270 30
Overall dimension :
8550x2500x3250mm
Gearbox :
7F&1R, Manual, DC7J120TD
Tank Capacity :
20 CBM
Description

SINOTRUK HOWO Water Tank Trucks 6X4 380HP 20000 Liters Water Sprinkler Tank Truck

Product Features

1. Light weight.

Using the aluminum alloy material ,make the truck has the characteristics of lightweight, low center of gravity.

2. Closed loading and unloading system.

Concentration of oil gas discharged from the fuel tank when loading and unloading of up to 50%,while oil and gas is the main reason why the city haze pollution,closed loading and unloading system can make the oil and gas recovery after restoration for fuel,reduce pollution while also reducing waste,has become the essiontial means as prescribed by the state.

3. System security.

Real time monitoring the vehicle running state security system granville special gas ,when the system detects the vehicle will be out of control,it will be applied to specific wheel brake force,help the vehicle safe driving on the right track,to prevent the vehicle out of control or rollover.

Product Paramter

Item Unit Description
Model HOWO brand Water Tank Truck
Dimension mm 8550*2500*3250
Tank Dimension mm 6100*2600*1600 / 10 m3
Option: 8~12 cubic meter, To be confirmed
Material Carbon Steel Q345A
Option~304 2B Stainless steel for food water
Curb Weight kg 7805
G.V.W kg 25000
Wheel Base mm 5000
F/R track base mm 1880/1860
F/R Axle-load Kg 6000/13000
Type Steel Spring
Approach/Departure angle .
Traction system Type 6*4
Tire Specification/Number Type 11.00R22.5, 6 +1 Spare Unit
Max speed Km/h 85
Engine Model ISDe270 30
Emission/Kw 6700 cc, 198 Kw / 2500 r
Horse Power 380 Hp
Power 970 N.m - 1400 r/min
Type Diesel, 6 cylinder, turbocharge, inter-cooling
Brand Dongfeng Cummins Engine Power Co.,Ltd
Standard Euro III
Gear box model 7F&1R, Manual, DC7J120TD
Brand DaChi
Fuel Tank Liter 280
Electronic V 24
Cab Person 3
Type Reversable, Manual
Steering Powering , LHD
Installing Mp3, Radio
Air Conditioner Hot Wind / Cold Wind
Remark: Installing Water pump~ flowing speed 60 m3/h, suction power 4m3/1.5min ,
Water Storage tank inside with Anticorrosion design.
Option~ Installing beam alarm light, installing dot alarm light,rear LED alarm light.

Product Photos

6X4 380HP 20000 Liters Water Tank Trucks SINOTRUK HOWO
