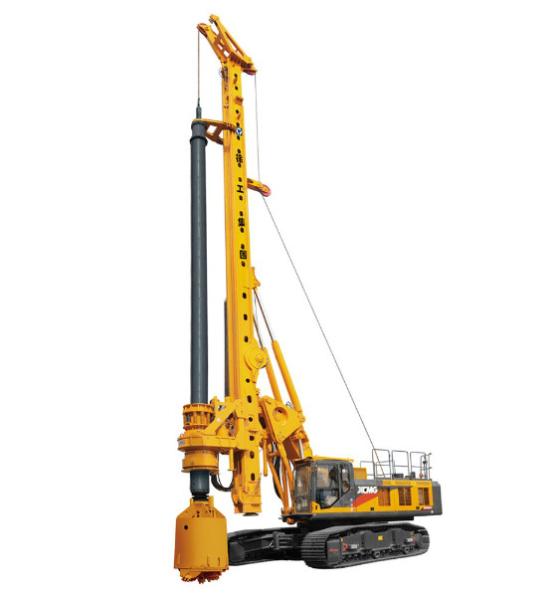

XCMG Hydraulic Pile Driver XR280D 88m Depth China Hydraulic Rotary Drilling Rig
XCMG Hydraulic Pile Driver XR280D 88m Depth China Hydraulic Rotary Drilling Rig
XCMG Hydraulic Pile Driver XR280D 88m Depth China Hydraulic Rotary Drilling Rig
XCMG Hydraulic Pile Driver XR280D 88m Depth China Hydraulic Rotary Drilling Rig
Specifications
Brand Name :
XCMG
Model Number :
XR280D
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full Payment 7-15 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Type :
Rotary Drilling Rig
Power :
298 KW
Condition :
New
Weight :
84000KG
Drilling Diameter :
2500mm
Warranty :
1 Year
Description

XCMG Brand New Hydraulic Piling Driver XR280D 88m Depth China Hydraulic Rotary Drilling Rig

XCMG XR280D Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.

  • The special hydraulic chassis for the rotating drill with extensible crawler is provided with the excellent stability and is convenient to transport. The imported turbo-supercharged engine(meeting EU-III standard) is powerful, and has sufficient power reserve, which can be operated in plateau. Its noise and emission meet the national standards. The constant power and the best output enable the complete machine to function at its best.
  • The patented parallelogram articulation mechanism can work in a large area. The drill mast, which is designed in box structure and made of the materials with high strength, has good rigidityand anti-distortion, guaranteeing the drilling accuracy. The hinge is provided with the bearing exempt from lubrication, and can work freely. The slag can be discharged in any angle due to 360 degree lifting and revolving.
  • With infrared camera for observing main winch, manipulator can observe the state of steel rope at day and night in cab.

Product Parameter

Drilling rig dimension in transport condition (L × W × H)
mm
17380×3500×3540
Weight of overall unit (standard configuration, excluding drilling tool)
t
84
Engine
Model
QSM11-C400
Rated power/speed
kw
298/(2200r/min)
Rotary drive
Max. torque
kn•m
280
Rotational speed
r/min
6~22
Crowd cylinder
Max. Pushing force
kn
210
Max. Pulling force
kn
220
Max.stroke
mm
6000
Main winch
Max.pulling force
kn
260
Max. single-rope speed
m/min
60
Auxiliary winch
Max.pulling force
kn

100
Max. single-rope speed
m/min
65
Drilling mast
Left/right inclination of mast
°
4/4
Front/back inclination of mast
°
5/15
Rotary table slewing angle
°
360
Traveling
Max. traveling speed of the overall unit
km/h
1.5
Max. climbable gradient of the overall unit
%
35
Crawler
Width of crawler plate
mm
800
External width of crawler (min.-max.)
mm
3500~4800
Center distance between two longitudinal wheels of crawler
mm
5175
Average ground pressure
kpa
102

Detailed Photos

XCMG Hydraulic Pile Driver XR280D 88m Depth China Hydraulic Rotary Drilling Rig
