XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
Specifications
Brand Name :
XCMG
Model Number :
XE15U
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/year
Delivery Time :
Full payment 7-15 work days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Operating weight :
1795Kg
Engine Model :
D782-E3B-CBH-1
Bucket capacity :
0.04m3
torque/speed :
44.5/1800N.m
Displacement :
0.778L
Travel speed :
4.3/2.2km/h
Fuel tank capacity :
18L
Hydraulic tank capacity :
17L
Engine oil capacity :
3.8L
Description

XCMG Hydraulic Excavator China Manufacturer XE15U Import 2T Clawer Bagger Farm Machine​


Product Advantages

XCMG official manufacturer XE15U import 2t bagger machine.

  • More efficient return

Tailless design for a turning radius ensures that the XE15U hydraulic excavator will not touch obstacles at the tail in narrow working conditions.

  • More reliable and durable

A four-point supporting shed that meets safety standards is used for the cab, and widens the driver's horizon while ensures the shed's strength. Seats are configured with standard safety belts, improving driver's working security.

  • More comfortable and safe

Brand-new designed hand holder, cup holder, etc. improve operation comfort and convenience maximally.


Product Parameter

Description

Unit

Parameter value

Operating weight

Kg

1795

Bucket capacity

m³

0.04

Engine

Model

/

D782-E3B-CBH-1

No. of cylinders

/

3

Output power

kw/rpm

9.8/2300

torque/speed

N.m

44.5/1800

Displacement

L

0.778

Hydraulic system

Travel speed(H/L)

km/h

4.3/2.2

Gradeability

°

30°

Pressure of prime valve

MPa

22

Pressure of travel system

MPa

22

Pressure of swing system

MPa

11

Pressure of pilot system

MPa

3.9

Oil Capacity

Fuel tank capacity

L

18

Hydraulic tank capacity

L

17

Engine oil capacity

L

3.8

Appearance size

Overall length

mm

3560

Overall width

mm

1240

Overall height

mm

2348

Width of platform

mm

990

Overall width of chassis

mm

990/1240

Width of crawler

mm

230

Track length on ground

mm

1270

Crawler gauge

mm

760/1010

Clearance under counterweight

mm

450

Min. ground clearance

mm

145

Working scope

Min. tail swing radius

mm

620

Max. digging height

mm

3475

Max. dumping height

mm

2415

Max. digging depth

mm

2290

Max. vertical wall digging depth

mm

1750

Max. digging reach

mm

3900

Min. swing radius

mm

1530

Standard

Length of boom

mm

1690

Length of arm

mm

1100

Bucket capacity

m³

0.04

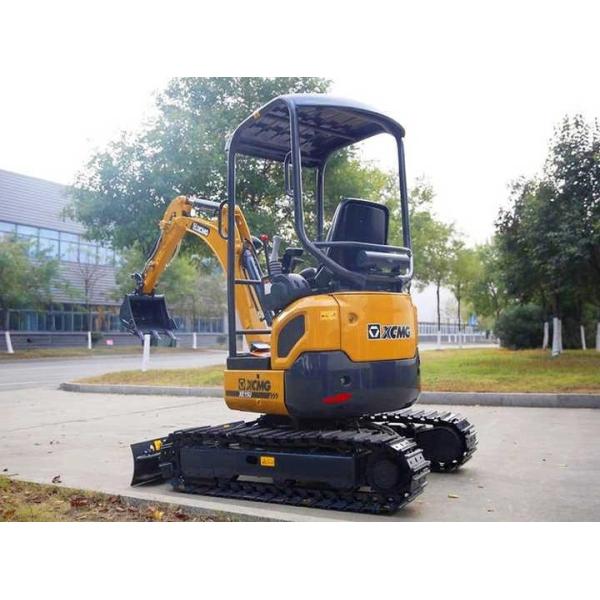

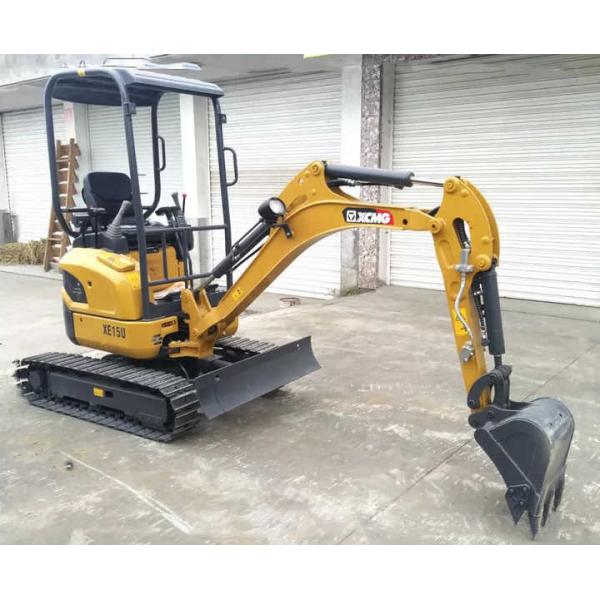

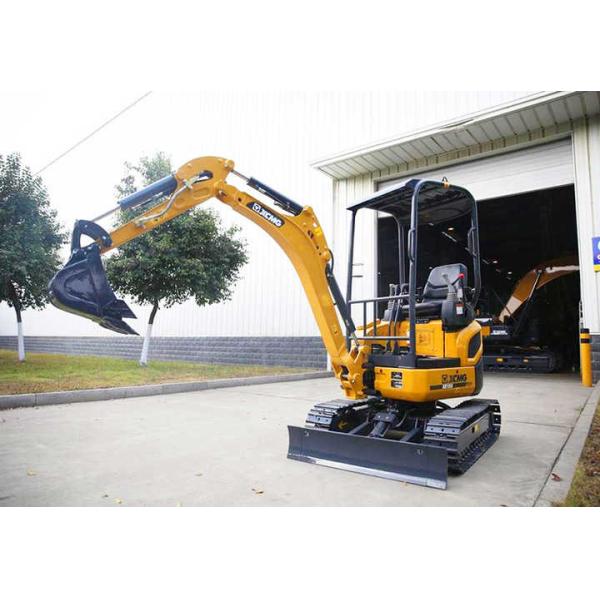

Detailed Photos

XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger

XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger

XE15U XCMG Hydraulic Excavator Import 2T Crawler Digger
