XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
Specifications
Brand Name :
XCMG
Model Number :
XE215C
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/year
Delivery Time :
Full payment 7-15 work days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Machine Weight :
20000kg
Engine Model :
ISUZU CC-6BG1TRP
No. of cylinders :
6
Output power :
128.5/2100 kW/rpm
Displacement :
6.494L
Rotating speed :
13.3r/min
Fuel tank :
400L
Hydraulic tank capacity :
220L
Engine oil capacity :
25L
Description

XCMG XE215C Hydraulic Excavator Engineering & Construction Machinery 20 Ton Crawler Excavator


Product Advantages

XCMG official engineering & construction machinery XE215C 20 ton crawler excavator.

  • 1.High-end configuration·Excellent performance XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency.
  • 2.New generation·Environmental·Energy-saving·Large power engine New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced.


Product Parameter

Model
Parameters
Engine
Model
ISUZU CC-6BG1TRP
Equipped
Electronic fuel injection
Four strokes
Water cooling
Turbo-charging
Air to air intercooler
No. of cylinders
6
Output power
128.5/2100 kW/rpm
Torque/speed
637/1800 N.m/rpm
Displacement
6.494 L
Operation Weight
21900 kg
Bucket Capacity
0.9—1.0 m ³
Main performance
Travel speed(H/L)
5.5/3.3 km/h
Rotating speed
13.3 r/min
Gradeability
≤35°
Ground pressure
47.2 kPa
Bucket digging force
149 kN
Arm digging force
111 kN
Maximum traction
184 kN
Hydraulic system
Main pump
2 plunger pumps
Rated flow of main pump
2×209 L/min
Pressure of prime valve
34.3/37.0 Mpa
Pressure of travel system
34.3 Mpa
Pressure of swing system
28 Mpa
Pressure of pilot system
3.9 Mpa
Oil capacity
Fuel tank capacity
400 L
Hydraulic tank capacity
220 L
Engine oil capacity
25 L
Appearance size
Overall dimensions(L*W*H)
9625×2990×3100 mm
Width of platform
2830 mm
Length of crawler
4225 mm
Overall width of chassis
2990 mm
Width of chassis
600 mm
Track length on ground
3462 mm
Crawler gauge
2390 mm
Clearance under counterweight
1050 mm
Min. ground clearance
485 mm
Min. tail swing radius
2890 mm
Working scope
Max. digging height
9620 mm
Max. dumping height
6780 mm
Max. digging depth
6680 mm
Excavation depth of 8 feet level
6500 mm
Max. vertical wall digging depth
5715 mm
Max. digging reach
9940 mm
Min. swing radius
3530 mm
Standard
Boom length
1680 mm
Arm length
2910 mm
Bucket Capacity
1.0 m ³
Optional
Arm length
5680 mm
Bucket Capacity
1.0 Earth working bucket
0.9 Rock bucket

Detailed Photos

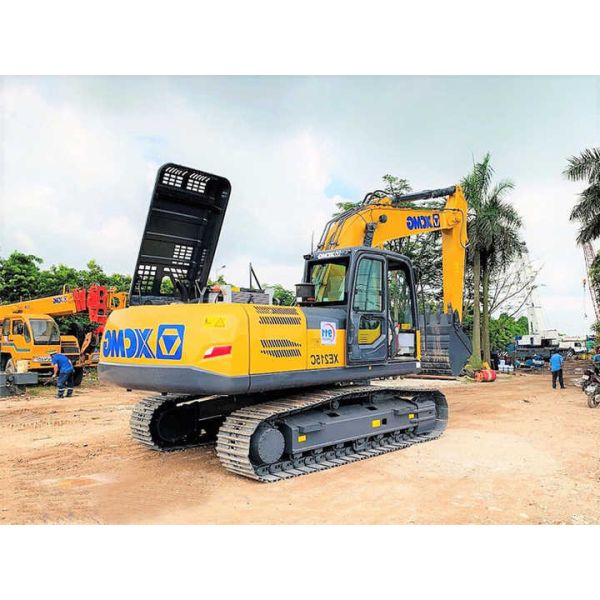

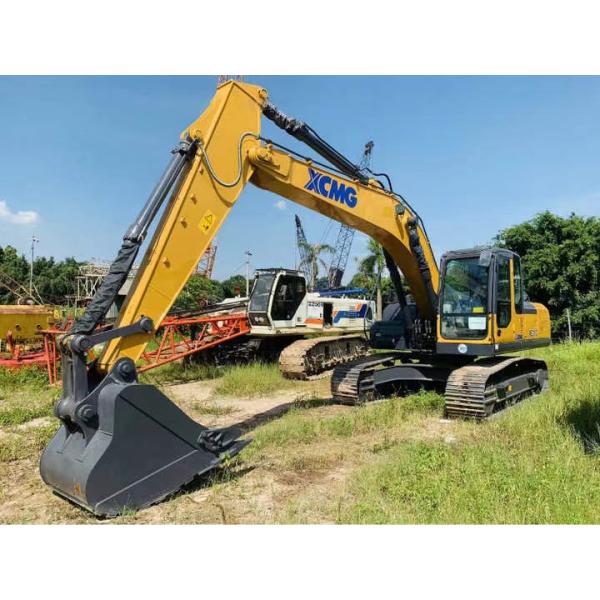

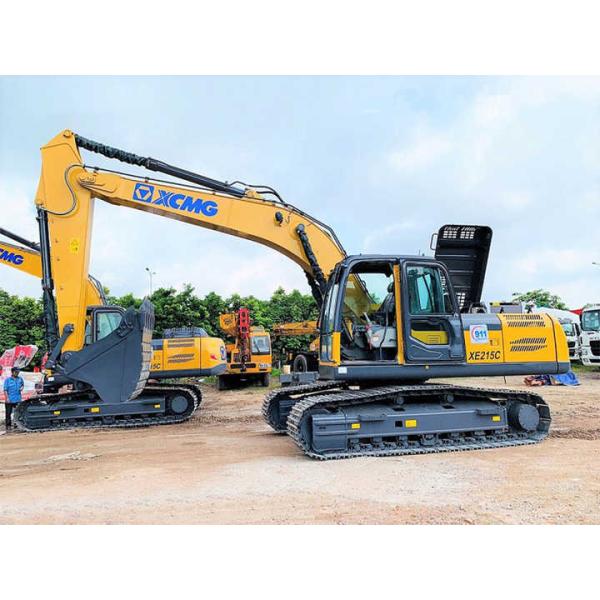

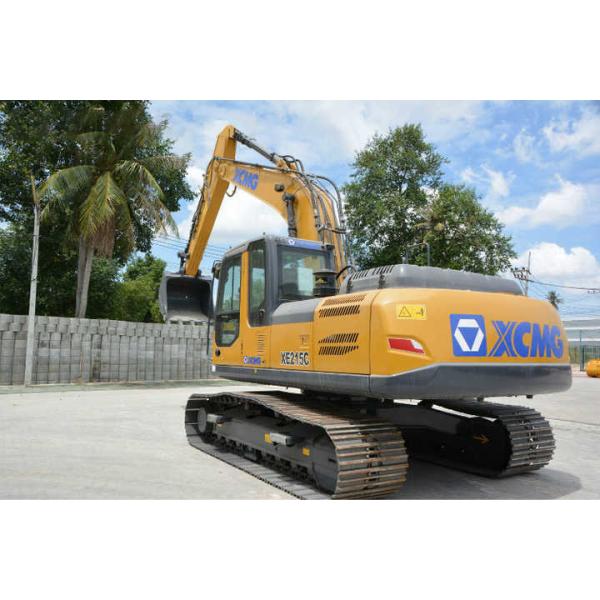

XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator

XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator

XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator

XCMG XE215C Hydraulic Excavator Engineering Construction Machinery 20 Ton Crawler Excavator
