HOWO 8X4 Synchronous Chip Sealer Truck Asphalt Macadam Seal Road Building Machinery
HOWO 8X4 Synchronous Chip Sealer Truck Asphalt Macadam Seal Road Building Machinery
HOWO 8X4 Synchronous Chip Sealer Truck Asphalt Macadam Seal Road Building Machinery
HOWO 8X4 Synchronous Chip Sealer Truck Asphalt Macadam Seal Road Building Machinery
Specifications
Brand Name :
SHIM
Model Number :
SHIMZ5311TFC
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000 Units Per Year
Delivery Time :
25-30 Work Days
Packaging Details :
Naked, Frame, Container
Asphalt Tank(L) :
8000
Chipping Spread Rate(L/㎡) :
2-22
Hopper Working type :
Push Plate
Control Type :
Computer
Total Weight(kg) :
31000
Aggregate Bin(m³) :
12
Description

HOWO 8X4 Synchronous Chip Sealer Truck Asphalt Macadam Seal Road Building Machinery

Breif Introduction:

1) Independent heat conduction oil temperature control system : Equipped with independent imported Honda generator , the asphalt tank and thermal oil can be heated without starting the chassis , which is saving the cost.


2) Heating system : Double import Riello G20 burner ,High power stirring in tank, With the circulation system , The whole pipeline heated by thermal oil system; The heating speed is faster, the efficiency is higher, and the energy consumption is lower.

3) Equipped with the Bell Carter rubber asphalt pump: the world's first rubber asphalt pump manufacturer in 1916.

4) Level indicator: equipped with liquid level indicator, low level reminders, anti dry heating, more safety.


5) Spray system: 34 fully automatic control nozzles,0m-4m spraying width , One control one , three overlapping spray, with thermal oil system.

6) Stable chipping spreading system:10 individually controlled switch gates , The size of the switch gates are adjustable ; Automatic compensation spreading device for chipping , which make the spreading is more uniform and beautiful.

Product parameters

Model

SHIMZ5311TFC

Chassis

HOWO 8*4

Total Weight(kg)

31000

Asphalt tank(L)

8000

Aggregate Bin(m³)

12

Max. Sealing Width(mm)

3500

Asphalt Spraying Rate(L/㎡)

0.3-3.0

Chipping Spread Rate(L/㎡)

2-22

Hopper working type

Lifting

Control Type

Computer

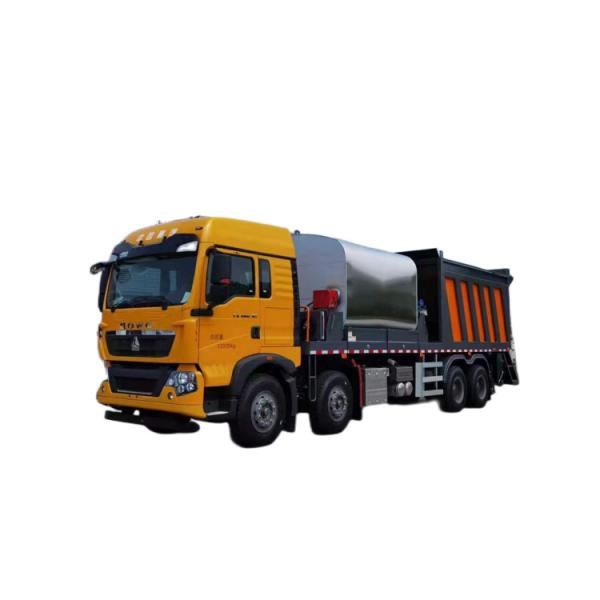

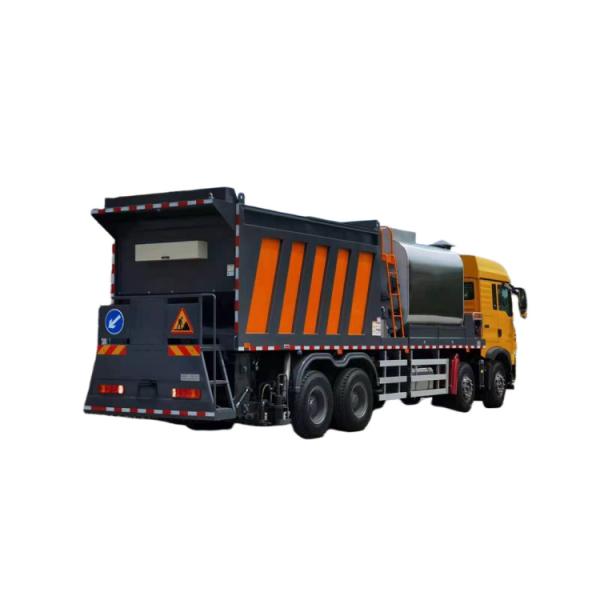

Product Show:

HOWO 8X4 Synchronous Chip Sealer Truck Asphalt Macadam Seal Road Building Machinery

HOWO 8X4 Synchronous Chip Sealer Truck Asphalt Macadam Seal Road Building Machinery
