SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria
SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria
SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria
SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria
SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria
SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria
SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria
SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria
Specifications
Brand Name :
SINOTRUK
Model Number :
HOWO N7B371
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
negotiation
Payment Terms :
L/C, T/T, D/A, Western Union
Supply Ability :
5000pcs/year
Delivery Time :
Full payment 15-20 work days
Packaging Details :
Naked, frame, container
Loading capacity :
30000kg
Kerb weight :
12100
Emission standard :
Euro II
Engine :
WP10.380E22
Displacement :
9.726L
Front Axle :
VDG9
Fuel Tank :
300L
Maximum speed :
75km/h
Van dimension :
5600*2300*1500mm
Description

SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria


Product Parameter

Model HOHAN 6*4 DUMP TRUCK HW7/371/K38/6X4WA/5
Driving Type Left Hand Driving/Right Hand Driving
Kerb weight ( kg) 12100
Loading capacity (kg) 30,000kg
Engine

Make: SINOTRUK

Diesel: 4-stroke direct injection diesel engine

WP10.380E22, 380HP EURO II emission standard

4-stroke direct injection diesel engine

6-cylinder in-line with water cooling, turbo-charging and intercooling

Maximum output: 371HP(273KW) at 2200rmp

Displacement: 9.726L
Cab HOHAN H77Lone sleeper, two seats, air conditioner
Transmission

HW19710,SINOTRUK 10 forward&2 reverse gearbox+HW50 PTO

Nuclearance: 1900N.m
Steering hydraulic steering with power assistance
Number of axle 3
Driving axle

HC16 SINOTRUK high strengthen engineering use two speed reduction heavy duty driving axle

rated loading capacity:16T/axle

Standard ratio:5.73
Axle-loading(kg) 7000/18000(two axle paralleled),
Front axle VDG9 HOWO off road use 9T front axle with drum brake
Rear track(mm) 1830
Overhang front/rear(mm) 1500/1670
Wheel base (mm) 3825+1350
Number of spring leaf 9/12,10/12
Tires

13R22.5

Number of tire: 10+1
Approach/departure angle 20/24,(°)
Maximum speed(km/h) 75
Fuel tank 300L
Van dimension (mm)

5600*2300*1500 20M3 dump body, ventral lifting cylinder

Thickness of the steel board: floor 8mm /side 6mm
Overall sizes (mm) 8420×2580×3450
Colors White/Yellow/Red/Grey/Green/Blue etc
Others Will be carried out by SINOTRUK factory standards

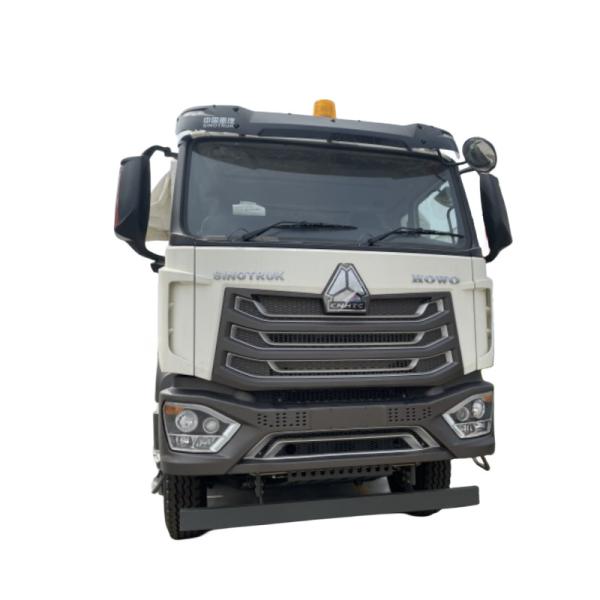

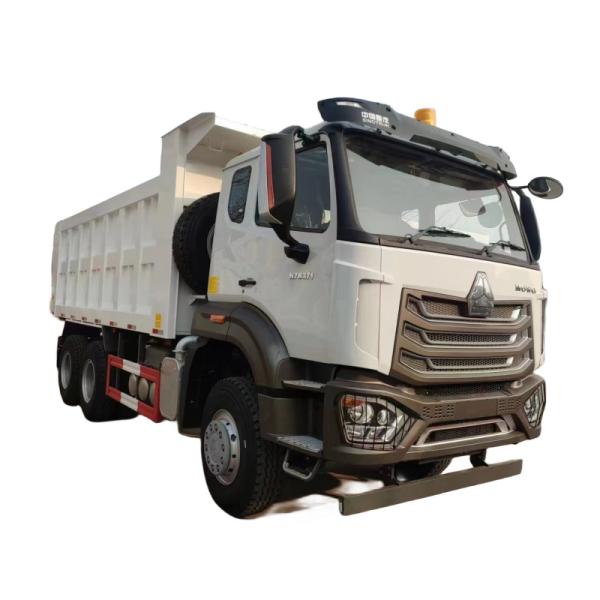

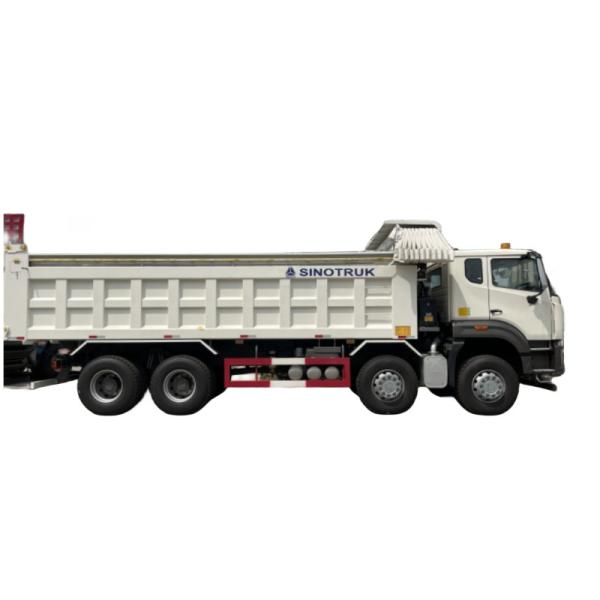

Detailed Photos

SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria

SINOTRUK HOWO N7 6*4 10 Tires Dump Truck For Mining To Nigeria
