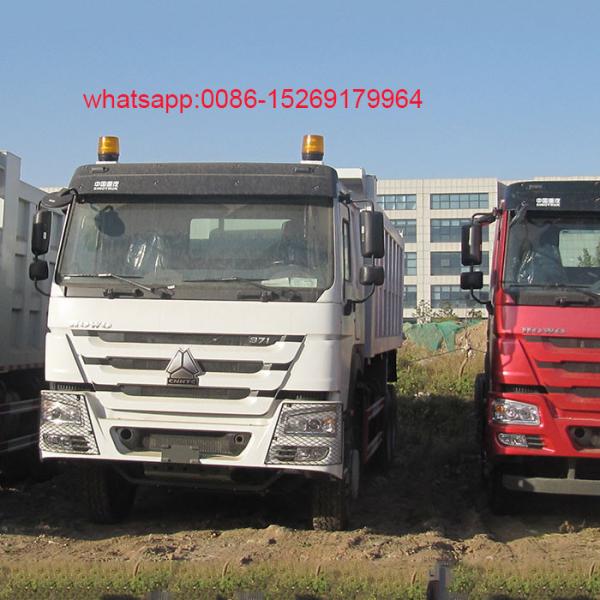

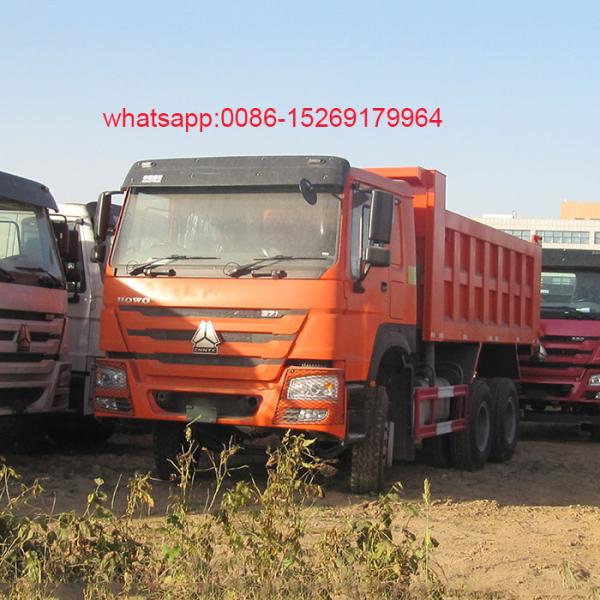

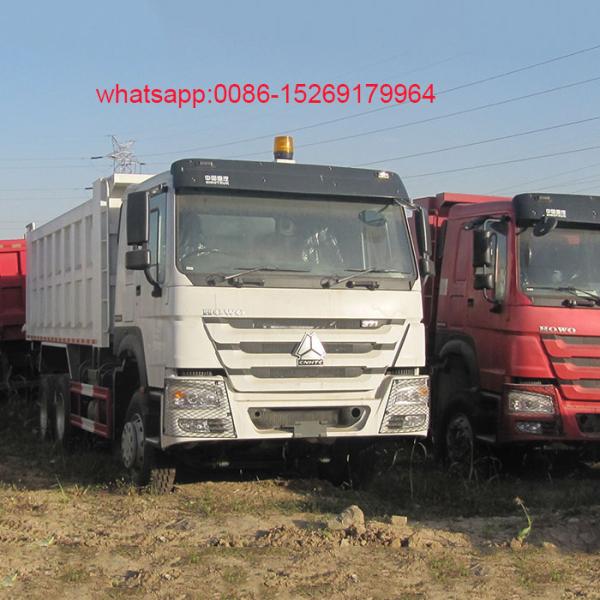

SINOTRUK HOWO 6x4 10 wheeler 19 m3 dump truck load volume
SINOTRUK HOWO 6x4 10 wheeler 19 m3 dump truck load volume
Specifications
Brand Name :
sinotruk-howo
Model Number :
ZZ3257N3847A
Certification :
ISO
Place of Origin :
China
MOQ :
1 unit
Price :
34000-41000 USD/unit
Supply Ability :
300 units/month
Delivery Time :
within 30-40days after receiving 30% T/T deposit
Packaging Details :
packing for howo dump truck:nude.polish with wax before shipping
Description

SINOTRUK HOWO 6x4 10 wheeler 19 m3 dump truck load volume

SINOTRUK HOWO 336HP 6x4 30ton dump truck
Truck Model ZZ3257N3847A
Steering type LHD or RHD
Dimension of box (LxWxH) 5600x2300x1500 mm
Thickness of box (mm) Deck:8mm;side:6mm
Lifting Type of carriage Middle Lifting,T type
Overall dimensions (LxWxH) 8545*2560*3386 mm
Approach angle/Departure angle(°) 19/23
front/rear suspension (mm) 1500/1870
Wheelbase (mm) 3825+1350
Max speed(km/h) 75
Vehicle Curb weight(kg) 12460
Gross mass (kg) 25000

Engine

 Model

SINOTRUK WD615.69,

4-stroke direct injection diesel engine,

6-cylinder in-line with water cooling,

turbo-charging and intercooling
Power, max(kw/rpm) 336 HP
Emission Euro2
Transmission/Gear box Model HW19710, 10 speeds forward ,2 reverse

Brake system

 Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model 8118,hydraulic steering with power assistance
Front axle HF 9,drum type
Driving axle HC16,16ton double reduction
Tire 12.00R20,radial tyres,11pcs (one spare)
Clutch φ430 diaphragm spring clutch,hydraulic control air power assisted
Cab

HW76,one bed,with A/C.

VOLVO technology ,comfortable cab.

4-point support floating suspension and shock absorbers,

up/down and front/back adjustable steering wheel,

VDO instrument and control module,safety belt ,

air horn,outer sun visor.
Electric system Battery 2x12V/165Ah
Alternator 28V-1500 KW
Starter 7.5 Kw/24 V
Color red,white,yellow. Optional as per customer’s requests.

Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.

SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china’s first heavy duty truck.In 1960,sinotruk introduced the steyr technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china’s largest heavy duty truck manufacturing base and made significant contributions to the development of china’s heavy duty truck industry and national economic growth.

If any need ,welcome to enquire.
