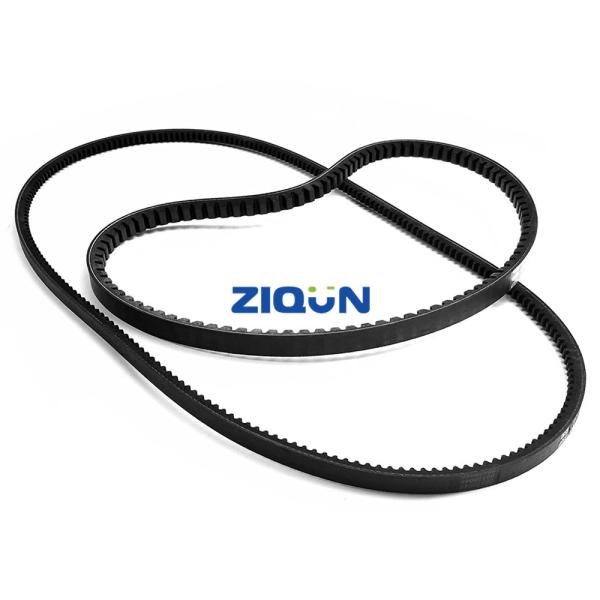

Pulley Wheel Transmission kit CR PK Rubber EPDM type A V Belt
Pulley Wheel Transmission kit CR PK Rubber EPDM type A V Belt
Pulley Wheel Transmission kit CR PK Rubber EPDM type A V Belt
Pulley Wheel Transmission kit CR PK Rubber EPDM type A V Belt
Specifications
Brand Name :
ZIQUN
Model Number :
A,B,C,D,3V,5V,8V,AX,BX,CX,3VX
Certification :
ISO90001
Place of Origin :
guangzhou,china
MOQ :
50Pcs
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability :
50Pcs/14Days
Delivery Time :
15-30Work days
Packaging Details :
The default is ZIQUN brand packaging, if you have special packaging needs, please contact our company, we will provide you with the best service.
type: :
v belt,flat belt,transmission belt,machine belt
Product Name :
poly ribbed belt v belt type A
Application: :
Berliet, Citroen, Commer, DAF, Fiat, Ford, General Motors, Isuzu, Iveco, Lancia, MAN, Massey Ferguson, Mercedes-Benz, Mitsubishi, MWM, Nissan, Opel, Peugeot, Renault, Rover, Saab, Saviem, Scania, Setra, Toyota, Unic-Simca, Volvo
Delivery: :
DHL TNT FedEX EMS Shipment
Applicable :
Machinery Repair Shops, Home Use, Auto parts factory, dryer
Material :
Rubber, CR ,EPDM
Advantage :
Resist to compress,wear,heat,oil, acid and alkali, and fatigue
Description

Pulley Wheel Transmission kit CR PK Rubber EPDM type A V Belt

Chinese factory Bearing Pulley Wheel Rubber type A V-Belt CR PK EPDM Engine Drive Transmission

China high elasticity good price mitsuboshi v-belt for sale

Classical rubber banded v-belt wrapped v-belt

Four-strand Banded V-Belt 4/5V-4570 4L-5V-4570

running rubber v belt for Transmitting Systems

1. Excellent Performance

2. Reliability & Efficiency

3. Work Temp:-55C~ +70C

4. Long service time

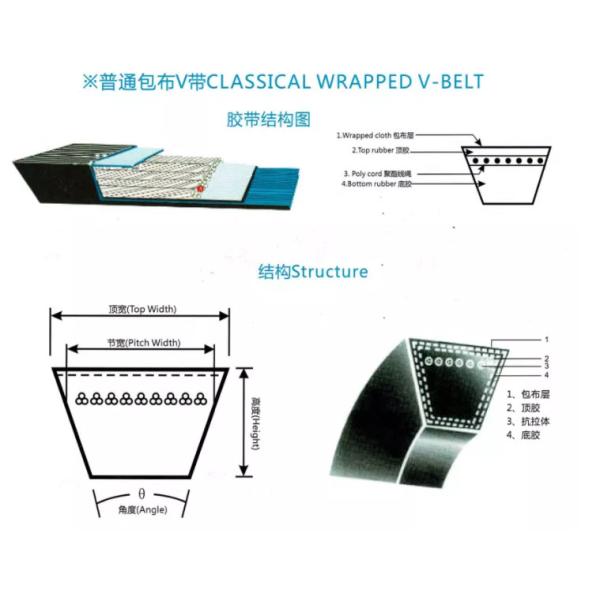

CLASSICAL WRAPPED V-BELT

(section size of classical wrapped v-belt)

Type Top Width (mm) Pitch Width (mm)

Height

(mm)

 Angle Inner perimeter (mm) Inner perimeter (inch)
0/M/Z 10 8.5 6 40° 360-3000 14"-118"
A 13 11.0 8 40° 408-8001 16"-315"
AB 15 12.5 9 40° 1270-8001 50"-315”
B 17 14.0 11 40° 610-14910 24"-587”
BC 20 17.0 12.5 40° 1524-8001 60"-315"
C 22 19.0 14 40° 1016-20955 40"-825"
CD 25 21.0 16 40° 1524-8001 60"-315"
D 32 27.0 19 40° 1600-20955 63"-825"
E 38 32.0 23 40° 4496- 20955 177"-825”
F 50 42.5 30 40° 5334- 20955 210"-825”


Features : Classical wrapped v-belt feature high strengh, low protraction, small matching tolerance and afatigue endurance limit of over 1011 times.

Type Top Width (mm) Pitch Width (mm)

Height

(mm)

 Angle Outer perimeter (mm) Outer perimeter (inch)
3V(9N) 9.5 / 8.0 40° 508-5334 20"-210"
5V(15N) 16.0 / 13.5 40° 1270-14910 50"-587"
8V(25N) 25.5 / 23.0 40° 3200- 14910 126"-587"
SPZ(FM) 10.0 8.0 8.0 40° 508-5334 20"-210”
SPA 13.0 11.0 10.0 40° 800-5994 31.5"-236”
SPB 17.0 14.0 14.0 40° 1270- 14910 50"-587”
SPB 22.0 18.0 18.0 40° 1600-20955 63"-825”

Features: Wede wrapped v-belts offer high transvere sifness and a transmission power 50-100% higher than classical v-belts. The transmission limitig velocity reaches 40m/s and the transmission eficiency over 95%.

Banded V-Belts
Features:
High transmission efficiency
Low noise
Easy clutch
High load
Good bending resistance
Fine wear resistance
Strong shock resistance
Reliable tension capacity, suitable for tensioning wheel clutch

Type Top Width (mm) Height (mm) Angle (°) Pitch Length (mm) Nominal Length (inch) Nominal Length (mm)
A 13 10 40 15 60-200 1524-5080
B 17 13 40 19 60-350 1524-8890
C 22 16 40 25.5 100-350 2540-8890
D 32 21 40 37 100-350 2540-8890
3V 9 10 40 10.3 40-140 1016-3556
5V 15 16 40 17.5 60-355 1524-9017
8V 25 25 40 28.6 100-560 2540-14224
AX 13 10 40 15 20-100 508-2540
BX 17 13 40 19 20-100 508-2540
CX 22 16 40 25.5 40-100 1016-2540
3VX 9 10 40 10.3 25-100 635-2540
5VX 15 16 40 17.5 50-100 1270-2540

Pulley Wheel Transmission kit CR PK Rubber EPDM type A V BeltPulley Wheel Transmission kit CR PK Rubber EPDM type A V BeltPulley Wheel Transmission kit CR PK Rubber EPDM type A V Belt

Pulley Wheel Transmission kit CR PK Rubber EPDM type A V Belt

Pulley Wheel Transmission kit CR PK Rubber EPDM type A V Belt
